Features and Benefits

  • 13 - Bit Temperature-to-Digital Converter
  • – 40°C to + 125°C Operating Temperature Range
  • Max Temperature of 125°C
  • ± 2°C Accuracy
  • 0.03125°C Temperature Resolution
  • Operating Current of 1 µA
  • Power Dissipation of 0.631 mW at VDD = 3.3 V
  • SPI - and DSP - Compatible Serial Interface Shutdown Mode
  • Space-Saving SOT-23 and microSOIC Packages
  • Compatible with AD7814

Product Details

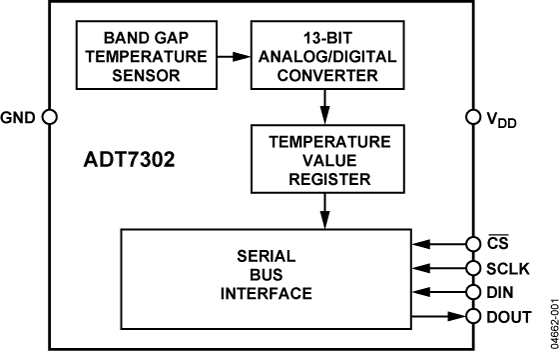

The ADT7302 is a complete temperature monitoring system available in SOT-23 and MSOP packages. It contains a bandgap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of +0.03125°C.

The ADT7302 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI™, QSPI and MICROWIRE™ protocol and is also compatible with DSPs. The part features a standby mode that is controlled via the serial interface.

The ADT7302’s wide supply voltage range, low supply current and SPI-compatible interface, make it ideal for a variety of applications, including personal computers, office equipment, automotive and domestic appliances.

Product Highlights

  1. On-chip temperature sensor that allows an accurate measurement of the ambient temperature. The measurable temperature range is −40°C to +125°C.
  2. Supply voltage of 2.7 V to 5.25 V.

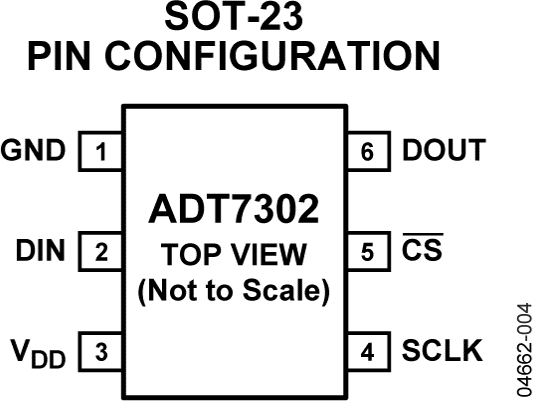

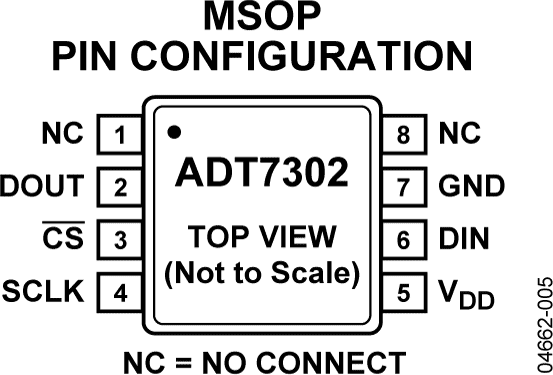

  3. Space-saving 6-lead SOT-23 and 8-lead MSOP packages.
  4. Maximum temperature accuracy of ±2°C.
  5. 13-bit temperature reading to 0.03125°C resolution.
  6. Shutdown mode that reduces the power consumption to 4.88 μW with VDD = 3.3 V at 1 SPS.
  7. Compatible with AD7814.


  • Medical equipment
  • Automotive
    Environmental controls
    Oil Termperature
    Hydraulic systems
  • Cellular phones
  • Hard disk drives
  • Personal computers
  • Electronic test equipment
  • Office equipment
  • Domestic appliances
  • Process control
