Overview
Features and Benefits
- Dual 16 bit SAR ADCs with no missing codes, 13+ ENOB, 380ns conversion speed for high precision closed loop control.
- 240 MHz ARM Cortex M4 Core with Floating Point Unit to support advanced programming models and complex algorithms.
- 384KB SRAM and 2MB flash memory for large program size.
- Advanced PWM and timer functions for improved torque ripple and motor performance.
- SINC filters for glueless connection to AD74xx isolated converters.
- Harmonic Analysis Engine for compliant grid connection.
- Ethernet and USB to support networked interfaces.
- Two CAN interfaces, three UARTS, two SPIs, two SPORTs, eight 32-bit timers, two two-wire interfaces and four quadrature encoder interfaces.
- 16 bit asynchronous memory bus for external SRAM or FPGA interfacing.
- 212-ball, 19x19mm CSP_BGA package
- Up to 105C ambient operating temperature for support of industrial applications.
Product Details
The ADSP-CM409F Mixed-Signal Control Processor integrates dual high precision 16 bit ADCs and an ARM® Cortex-M4TM processor core with floating-point unit operating at 240 MHz core clock frequency and integrating 384KB of SRAM memory, 2M byte of flash memory, and accelerators and peripherals optimized for motor control, photo-voltaic (PV) inverter control and other embedded control applications.
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

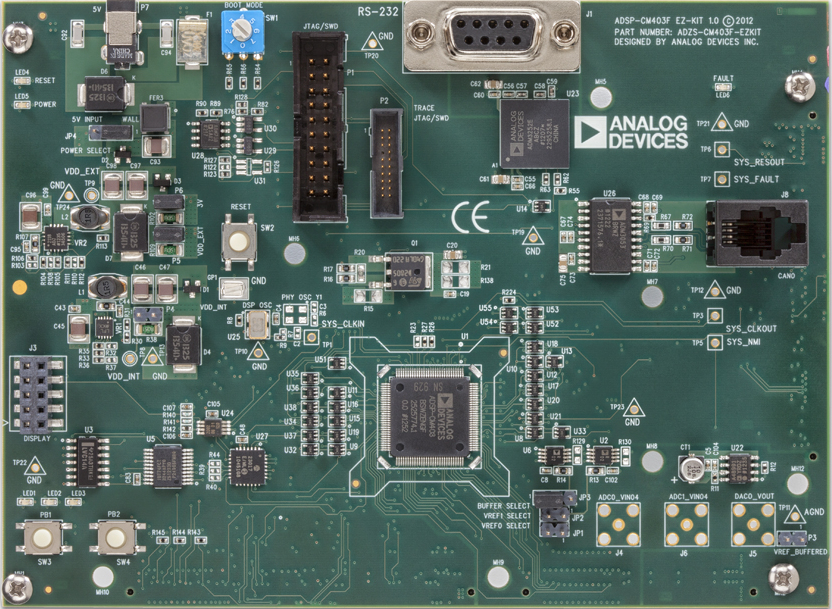

Evaluation Kits (1)
Documentation & Resources
-
AN-1407: ADSP-CM402F/ADSP-CM403F/ADSP-CM407F/ADSP-CM408F/ADSP-CM409F Pulse Width Modulator in AC Motor Control Applications (Rev. 0)8/17/2016
-
EE-380: ADSP-CM40x Board Design Guidelines for Optimal ADC Performance12/14/2015
-
EE-363: ADSP-CM40x Serial Flash Execute-in-Place Technology (Rev. 2)12/10/2015
-
• EE-363: Code Example
ZIP -
EE-361: ADSP-CM40x Power Supply Transistor Selection Guidelines (Rev. 1)9/24/2013
-
EE-359: ADSP-CM40x Boot Time Optimization and Device Initialization (Rev. 2)9/24/2013
-
• EE-359: Associated Files
ZIP -
EE-365: Maximizing ADC Sampling Rate on ADSP-CM40x Mixed-Signal Control Processors (Rev. 1)9/22/2013
-
• EE-365: Code example
ZIP
-
ADSP-CM40x in Solar PV Inverters4/24/2015
-
Synchronized Multi-Axis Systems Offering11/28/2018
Software & Systems Requirements
Software Development Tools
CrossCore® Utilities
CrossCore Utilities provides several utilities for use with Cortex-M processors. These utilities have previously been distributed within various Board Support Packages for the IAR and Keil toolchains, and are collected together in this product for convenient maintenance.
Tools & Simulations
BSDL Model File
IBIS Model
IBS
ADSP-CM409F IBIS Model
170.46 K
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADSP-CM409CBCZ-AF | Material Declaration | Reliability Data | 212-Ball CSPBGA (19mm x 19mm x 1.51mm) | |
| ADSP-CM409CBCZAFRL | Material Declaration | Reliability Data | 212-Ball CSPBGA (19mm x 19mm x 1.51mm) | |
| Wafer Fabrication Data |
