Features
- 450 MHz (2.7GFLOPS) per core
- 3Mbits/384KB L1 memory/core with parity
- Optional cache/SRAM mode
- 32-bit, 40-bit & 64-bit floating point support
- 256KB L2 SRAM with ECC protection
- DDR3-900, DDR2-800 & LPDDR (16-bit)
- FFT/iFFT (18 GFLOPS, 5usec per 1K-pt FFT)
- FIR/IIR and SINC Filters, ASRC
- Security Crypto Engines with OTP
- 19mm × 19mm BGA (0.8mm pitch)
- Commercial, Industrial & Automotive
- Up to 8x Full SPORT interfaces (w/ TDM & I2S modes)
- S/PDIF Tx/Rx, 8x ASRC pairs, PCG
- 2x Dual-SPI and 1x QuadSPI (w/ direct execution)
- 2x CAN2.0
- MLB 3/6-pin (Auto devices only)
- 3x I2C and 3x UARTs (w/ Flow Control)
- Enhanced Parallel Peripheral Interface
- For video I/O or parallel converter interface
- 2x Link Ports (bi-directional, 8-bit, up to 150MB/sec)
- 3x Enhanced PWM, ADC Control Module (ACM)
- 8x GP Timer, 1x GP Counter, WDT and RTC
- Up to 80 GPIO (mux’ed w/ other interfaces)
- 8-ch 12-bit 1MSPS Housekeeping ADC
- Thermal Sensor
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADSP-21583 processor is part of the new, high-performance, power-efficient, real-time series that delivers greater than 24 giga-floating-point operations per second using two enhanced SHARC+® cores and advanced DSP accelerators (FFT, FIR, IIR). The ADSP-SC58x and ADSP-2158x series consume less than 2 watts, making the new processor line-up more than 5x more power efficient than previous SHARC products. This advantage provides industry leading digital signal processing performance for applications where thermal management sets the limit for power consumption, or where the higher costs and lower reliability of fans cannot be tolerated. Applications include automotive, consumer and professional audio, multi-axis motor control, and energy distribution systems.
The ADSP-2158x family is designed for applications where a DSP co-processor is exclusively needed and includes two SHARC+ cores and a peripheral set matched to a DSP core.
The new, code-compatible, enhanced SHARC+ core features clock-rate and power-efficiency improvements and adds instruction/data cache options, native double-precision floating-point support, and a number of other new instructions. Designed for low-power and using a low-leakage CMOS process, the ADSP-SC58x/2158x families deliver 450 MHz with 105°C environments in mind and provide a roadmap to future implementations at higher performance. More than 1.5 Mbytes of fast on-chip SRAM and a DDR3/2/LP interface aid efficient real-time performance while the memory subsystem includes major enhancements with advanced DMA engines for simultaneous data transfer.
With software IP protection a growing industry security concern, ARM® TrustZone® security and an onboard crypto hardware accelerators are included. For applications where reliability is a critical requirement, memory parity and error-correction hardware provide higher data integrity. The overall integration and low-power features offered by the new ADSP-SC58x and ADSP-2158x series deliver significant BOM and board area savings and provide lower design complexity and reduced time to market for today’s complex applications.
The ADSP-SC58x/2158x is supported by ADI’s award winning Crosscore® Embedded Studio development tool suite, providing design engineers with interactive, real-time development tools that help optimize their design and speed time to market.
Additionally, ADI and Micrium have collaborated to offer µC/OS-II® & µC/OS-III® real-time kernels on SHARC+.
The compatible ADSP-SC584 EZ-KIT-Lite development board and ICE-1000/2000 emulators facilitate the creation, test, and debug of advanced applications. Working in tandem with CrossCore Embedded Studio, the emulators provide state-of-the-art support for all JTAG-compliant Analog Devices processors now utilizing CoreSight™ from ARM.
ADSP-SC58x and ADSP-2158x Series: Summary and Comparison
4
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-21583
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Informational
-
Processor Manual
-
Data Sheet
-
Integrated Circuit Anomaly
-
All
-
English
-
Chinese
Data Sheet
2
Application Note
15
HTML
Informational
1
HTML
Processor Manual
2
Integrated Circuit Anomaly
1
Documentation
Data Sheet 1
Application Note 15
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev.1)
EE-253: Power Bypass Decoupling of SHARC® Processors (Rev.1)
EE-385: Implementing the RSA Cryptosystem with the Public Key Accelerator
EE-383: MDMA-Based Dual-SHARC+ Parallel Pipeline Audio Talkthrough
EE-386: Using the Security Packet Engine to Protect Data (Rev.1)
EE-387: Interfacing DDR3/DDR2/LPDDR Memory to ADSP-SC5xx/215xx Processors (EE-387). February 2024 (Rev.4)
EE-400: Using Cache on ADSP-SC5xx/ADSP-215xx SHARC+ Processors (Rev.1)
EE-392: Estimating Power for ADSP-SC58x/2158x SHARC+ Processors (Rev.1)
EE-384: Tips and Tricks Using the ADSP-SC58x/ADSP-2158x Processor Boot Rom (Rev.1)
EE-366: Secure Booting Guide for Blackfin+® and SHARC+® Processors (Rev.2)
EE-375: Migrating Legacy SHARC to ADSP-SC58x/2158x SHARC+ Processors (Rev.1)
EE-378: Processor Comparison Guide (ADSP-BF60x/BF70x vs ADSP-SC58x/2158x) (Rev.1)
EE-379: ADSP-214xx vs ADSP-SC58x/ADSP-2158x - Peripheral Considerations (Rev.1)
EE-448: Safe Power-down Mechanisms for Digital Processors
EE-401: ADSP-SC5xx/215xx SHARC+ Processor System Optimization Techniques
Processor Manual 2
Integrated Circuit Anomaly 1
Informational 1
Customer Case Study 1
Rarely Asked Question Page 1
Webcast 1
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADSP-21583BBCZ-4A |
349-Ball CSPBGA (19mm x 19mm)
|
|
|
| ADSP-21583CBCZ-4A |
349-Ball CSPBGA (19mm x 19mm)
|
|
|
| ADSP-21583KBCZ-4A |
349-Ball CSPBGA (19mm x 19mm)
|
|
- ADSP-21583BBCZ-4A
- Pin/Package Drawing
-
349-Ball CSPBGA (19mm x 19mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-21583CBCZ-4A
- Pin/Package Drawing
-
349-Ball CSPBGA (19mm x 19mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-21583KBCZ-4A
- Pin/Package Drawing
-
349-Ball CSPBGA (19mm x 19mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 7, 2023
- 23_0102
Alternate Test Site for Products Using The 349-Ball CSP_BGA Package.
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Feb 20, 2019
- 19_0030
Die Revision for ADSP-SC58x & ADSP-2158x SHARC Processors
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Dec 21, 2018
- 18_0142
Data sheet changes for ADSP-SC582,SC583,SC584,SC587,SC589,21583,21584,21587
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Jul 20, 2017
- 17_0106
Data Sheet corrections for ADSP-2158x and ADSP-SC58x Products
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 7, 2023
- 23_0102
Alternate Test Site for Products Using The 349-Ball CSP_BGA Package.
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Feb 20, 2019
- 19_0030
Die Revision for ADSP-SC58x & ADSP-2158x SHARC Processors
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Dec 21, 2018
- 18_0142
Data sheet changes for ADSP-SC582,SC583,SC584,SC587,SC589,21583,21584,21587
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Jul 20, 2017
- 17_0106
Data Sheet corrections for ADSP-2158x and ADSP-SC58x Products
ADSP-21583BBCZ-4A
PRODUCTION
ADSP-21583CBCZ-4A
PRODUCTION
ADSP-21583KBCZ-4A
PRODUCTION
Software & Part Ecosystem
Software Development Tools
CrossCore® Embedded Studio
CCES is a world-class integrated development environment (IDE) for the ADI Blackfin®, SHARC® and Arm® processor families.
SigmaStudio®
Graphical development tool for programming, development, and tuning software for ADI DSP audio processors and A2B® transceivers.
SigmaStudio®+
CrossCore® Utilities
Looking for Evaluation Software? You can find it here
Evaluation Kits 3
ADZS-SC584-EZLITE
ADSP-SC584 Evaluation Hardware for the ADSP-SC58x/ADSP-2158x SHARC Family (349-ball CSPBGA)
Features and Benefits
- ADSP-SC584 349-pin 19x19mm BGA
- 2Gb DDR3 Memory
- 128 Mb SPI Flash
- Ethernet (10/100 & GigE)
- ADAU1977 quad ADC
- ADAU1979 quad ADC
- ADAU1962A 12 channel 24-bit DAC
- AD2410 Automotive Audio Bus (A2B)
- SPDIF in/out, optical & coax
- UART
- 2 CAN transceivers + RJ11 connectors
- USB OTG
- HADC
- EI3 Expansion Interface
- EZLITE includes ICE-1000 JTAG emulator and a permanent CrossCore® Embedded Studio license for use with the EZLITE via ICE-1000
Product Detail
The ADSP-SC584 EZ-KIT Lite and EZ-Board® are evaluation systems for the ADSP-SC58x family of SHARC® processors. The ADSP-SC584 processor is based on the SHARC+™ core dual processor with the arm® Cortex-A5™ processor core and is designed for a wide array of markets, from automotive and pro-audio to industrial-based applications that require high floating-point performance. The EZ-Board is shipped with all of the necessary hardware—you can start the evaluation immediately. The package contains the standalone evaluation board, CE-approved power supply, and USB cable. The EZ-KIT Lite® version ships with two 180 day licenses for CrossCore® Embedded Studio (CCES) and the ICE-1000 emulator, while the EZ-Board version requires the customer to provide an ICE-1000 or ICE-2000 emulator.
Expansion Interface III connectors are provided for interfacing with additional extender boards to provide LCD, camera, video, and audio. Traditional mechanical switches for changing the board's factory setup have been removed in favor of I2C controlled software switches. The only remaining mechanical switches are the boot mode switch, JTAG configuration switches, and push buttons.
The evaluation board is designed to be used in conjunction with the CrossCore® Embedded Studio (CCES) development tools to test capabilities of the ADSP-SC58x processors. The development environment aids advanced application code development and debug, such as:
- Create, compile, assemble, and link application programs written in C++, C, and assembly
- Load, run, step, halt, and set breakpoints in application programs
- Read and write data and program memory
- Read and write core and peripheral registers
Resources
EMULATOR-ADSP
Low Cost ICE-1000 and High Performance ICE-2000 USB-based JTAG Emulators
Features and Benefits
- JTAG/SWD support for Blackfin, Blackfin+, SHARC and multi-core SHARC+ with ARM
- Plug-n-Play, USB 2.0 compliant
- USB bus-powered device
- Windows® 8.1, Window 7 compatible
- Multiple processor I/O voltage support: 1.8V, 2.5V, and 3.3V
- Multiprocessor support
- JTAG/SWD clock operation of 5 MHz on the ICE-1000
- JTAG/SWD clock operation up to 46 MHZ on the ICE-2000
- Multi-colored LED for enhanced status indication
- Software controlled target reset to support remote debug
Product Detail
New debug feature added for the ICE-1000/ICE-2000:
- Coresight Serial Wire Debug (SWD)

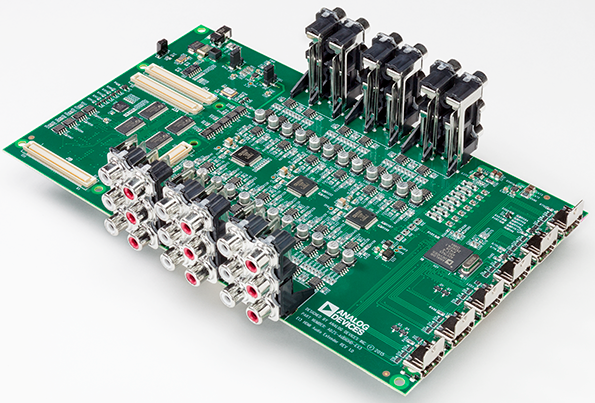

HDMI Audio EI3 EZ-Extender
The HDMI Audio EI3 EZ-Extender is a low-cost, plug-on extender for EZ-KITs that support the Expansion Interface 3 (EI3) specification. This board extends the capabilities of the evaluation system by providing a connection to three analog audio codecs along with an HDMI transmitter/receiver. For information about compatible EZ-KIT products, see the processors family's Software and Tools page.
Features and Benefits
- Analog audio interface
- AD1939 – three Analog Devices 192 kHz audio codecs
- 24 channels of audio out (twelve stereo channels)
- Twelve channels of audio in (six stereo channels)
- TDM and I2S modes at 48 kHz, 96 kHz, and 192 kHz sample rates
- HDMI Interface
- ADV7625 HDMI Transmitter/Receiver
- 8 channels of HD audio from HDMI (7.1 surround sound)
- 4 HDMI Inputs and 2 HDMI outputs
- Single-ended input/output
- Twelve RCA phono jack inputs
- Twenty four RCA phono jack outputs
- IR Interface
- HDMI CEC/remote control support
Product Detail
The HDMI Audio EI3 EZ-Extender is a separately sold daughter board that plugs onto the expansion interface III of the EZ-Board evaluation platform. The daughter board aids the design and prototyping phases of HDMI HD audio decode/encode applications. The board extends the capabilities of the evaluation system by providing a connection to three analog audio codecs along with an HDMI transmitter/receiver.
The HDMI Audio EI3 EZ-Extender’s analog audio interface is comprised of three Analog Devices AD1939 multichannel audio codecs. The AD1939 is a high performance, single-chip codec featuring four analog-to-digital converters (ADCs) for audio input and eight digital-to-analog converters (DACs) for audio output. This translates to twelve channels of audio in and twenty four channels of audio out. The codec/extender can input and output data at a sample rate of up to 192 kHz on all channels.
This HDMI Audio EI3 EZ-Extender connects with the Expansion Interface 3 (EI3) which gives the user more available signals on the interface connectors and a reduction in size over the previous EI2 specification. Software examples are provided to demonstrate the functionality of the devices on the Extender Board.
