100 MHz to 30 GHz, Silicon SPDT Switch
Features and Benefits
- Ultrawideband frequency range: 9 kHz to 30 GHz
- Nonreflective 50 Ω design
- Low insertion loss: 2.0 dB to 30 GHz
- High isolation: 60 dB to 30 GHz
- High input linearity
- 1 dB power compression (P1dB): 28 dBm typical
- Third-order intercept (IP3): 52 dBm typical
- High power handling
- 24 dBm through path
- 24 dBm terminated path
- ESD sensitivity: Class 1, 1 kV human body model (HBM)
- 20-terminal, 3 mm × 3 mm land grid array package
- No low frequency spurious
- Radio frequency (RF) settling time (to 0.1 dB of final RF output): 6.2 μs
The ADRF5021 is a general-purpose single-pole, double-throw (SPDT) switch manufactured using a silicon process. It comes in a 3 mm × 3 mm, 20-lead land grid array (LGA) package and provides high isolation and low insertion loss from 9 kHz to 30 GHz.
This broadband switch requires dual supply voltages, +3.3 V and −2.5 V, and provides CMOS/LVTTL logic-compatible control.
- Test instrumentation
- Microwave radios and very small aperture terminals (VSATs)
- Military radios, radars, electronic counter measures (ECMs)
- Broadband telecommunications systems
Markets & Technology
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

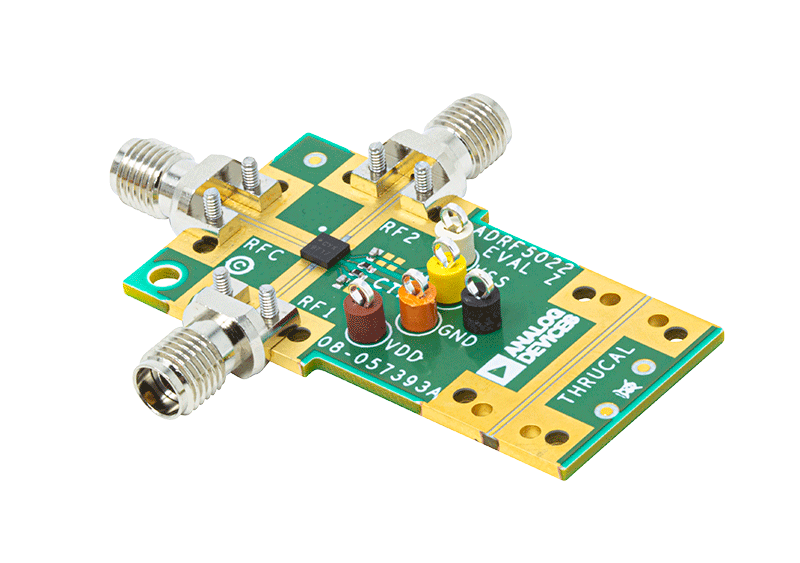

The ADRF5021-EVALZ is a fully populated, 4-layer, RO4003 based evaluation board. Two power supply of +3.3 V and -2.5 V should be applied to the VDD and VSS test points respectively while ground reference is connected to the GND test point.
Two control voltages of 0/+3.3 V that select the switch state are applied to the EN and CTRL test points. The RF input signal can be applied to the end-launch, 2.4 mm RF connector labeled RFC and the RF output signals can be measured on the end-launch, 2.4 mm RF connectors labeled RF1 and RF2.
