ADPM12160

Name: ADPM12160
Brand: Analog Devices
Availability: OutOfStock

RECOMMENDED FOR NEW DESIGNS

1600W, Nonisolated Quarter-Brick DC-DC Power Module

1600W, Non-Isolated Quarter-Brick DC/DC Power Module

Data Sheet (Rev. 2) Product Selection Table

Part Models: 13
1ku List Price: Starting From $115.50

Viewing:

Overview

Electrical
- 40V to 60V Input Voltage Range
- 12V/12.5V Fully Regulated Output Voltage
- Thermal Design Power up to 1600W
- Peak Power up to 2400W
- Peak Efficiency up to 98% at Half Load
- Fully Protected: OTP, Input UVLO and OVLO, Input
  OCP, Output OVP, Output OCP, and SCP
- No Minimum Load Required
- Fast Load-Transient Response with Coupled
  Inductor
- Optional Logic for Remote ON/OFF (REM)
- PMBus™ Configuration
- Event Data Recorder (Black Box)
- Parallel Operation with Active Current Sharing
- Nonisolated

Mechanical

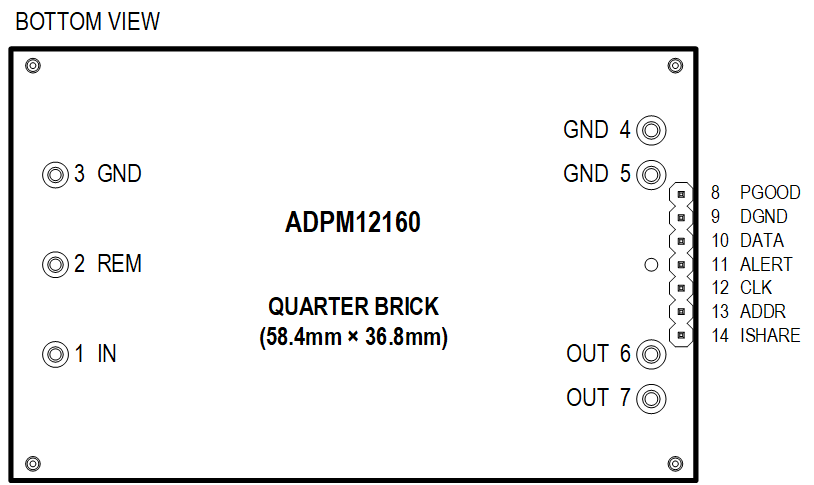

- Industry-Standard Quarter-Brick Footprint: 58.4mm
  × 36.8mm × 15.1mm (2.30in × 1.45in × 0.59in)
- Optional Pin Length: 2.79mm, 3.70mm, or 4.32mm
Safety and Certification
- IEC/UL/EN/CSA 62368-1
- Compliance with RoHS EU Directive 2011/65/EU
  and (EU)2015/863
- ISO 9001, TL 9000, ISO 14001, ISO 45001
  Certified Manufacturing Facility

Part Models: 13
1ku List Price: Starting From $115.50

Documentation

Data Sheet 1

ADPM12160: 1600W, Nonisolated Quarter-Brick DC-DC Power Module Data Sheet (Rev.2) 10/29/2025

User Guide 1

EVAL-ADPM12160 User Guide: Evaluating the ADPM12160, Nonisolated Quarter-Brick DC-DC Power Module (Rev.0) 10/29/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPM12160CMLCH	MSM LAMINATE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZBH	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZBHA	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZBL	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZBLA	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZCH	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZCHA	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZCL	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZCLA	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZDH	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZDHA	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZDL	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPM12160CMLZDLA	MCML	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 31, 2026 - 26_0095 Moisture Sensitivity Level (MSL) Change to MSL 3 for ADPM12160
		PCN26_0095_Form Material_Report
ADPM12160CMLZBH	PRODUCTION
ADPM12160CMLZBHA	PRODUCTION
ADPM12160CMLZBL	PRODUCTION
ADPM12160CMLZBLA	PRODUCTION
ADPM12160CMLZCH	PRODUCTION
ADPM12160CMLZCHA	PRODUCTION
ADPM12160CMLZCL	PRODUCTION
ADPM12160CMLZCLA	PRODUCTION
ADPM12160CMLZDH	PRODUCTION
ADPM12160CMLZDHA	PRODUCTION
ADPM12160CMLZDL	PRODUCTION
ADPM12160CMLZDLA	PRODUCTION

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

ADPM12160H
ADPM12160L

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADPM12160, Nonisolated Quarter-Brick DC-DC Power Module

Buy Now View Details

Features and Benefits

40V to 60V Input Voltage Range
12V Output Voltage
ADPM12160CMLZCH Installed by Default
Active-High Logic
Support One Module, or Two, or Three, or FourModules in Parallel Operation
-40°C to +85°C Temperature Range
High-Current PCB Lugs for Input and Output VoltageConnection
Current-Sense Resistors for Input and Output CurrentMonitoring
PMBus Interface
Fully Assembled and Tested

Product Details

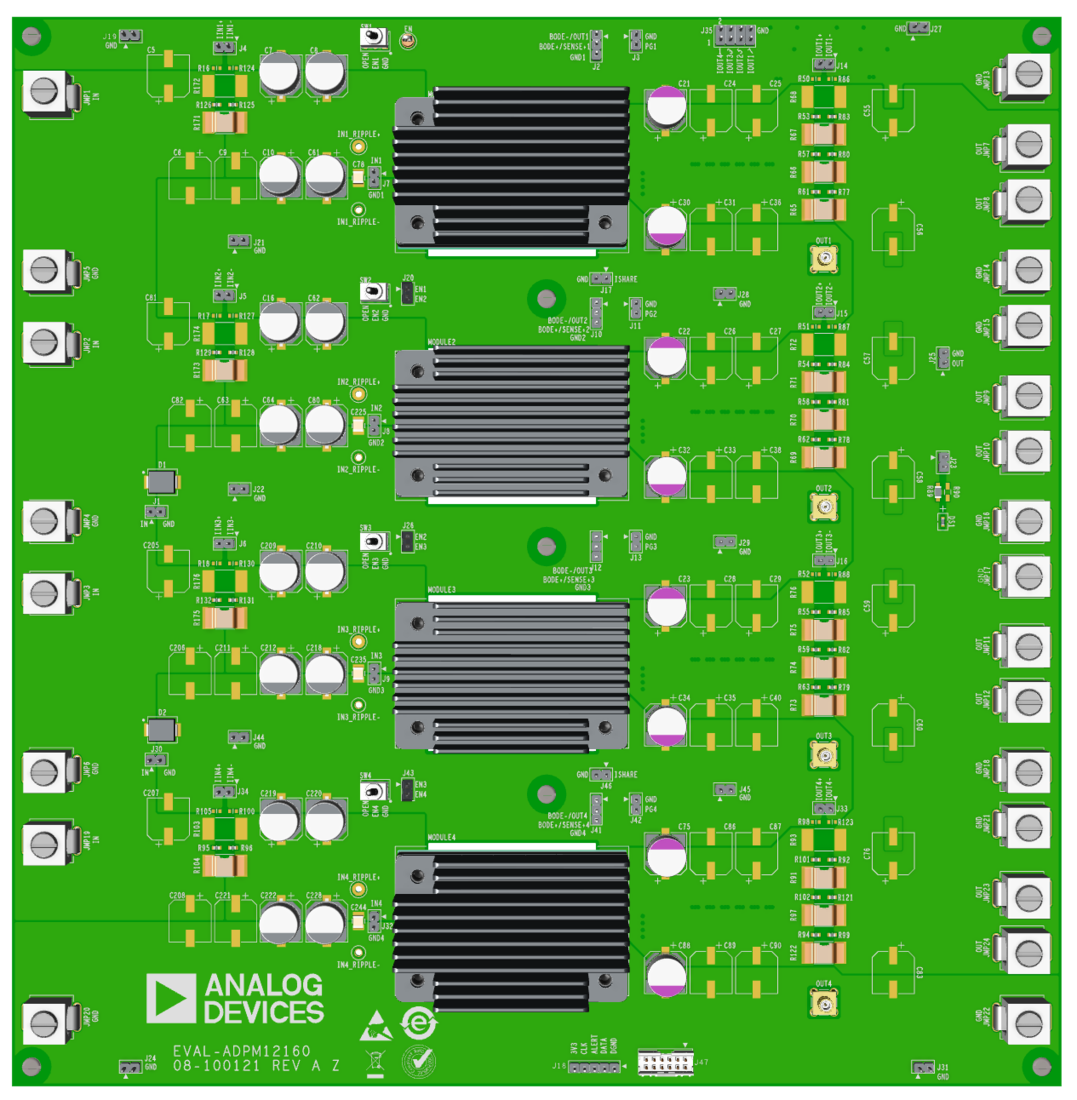

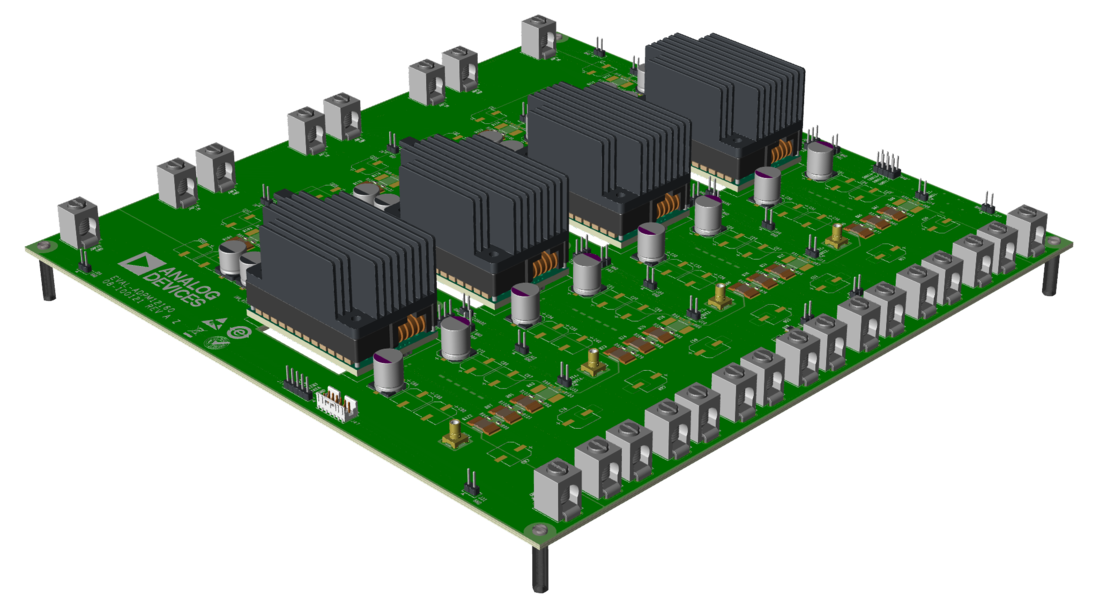

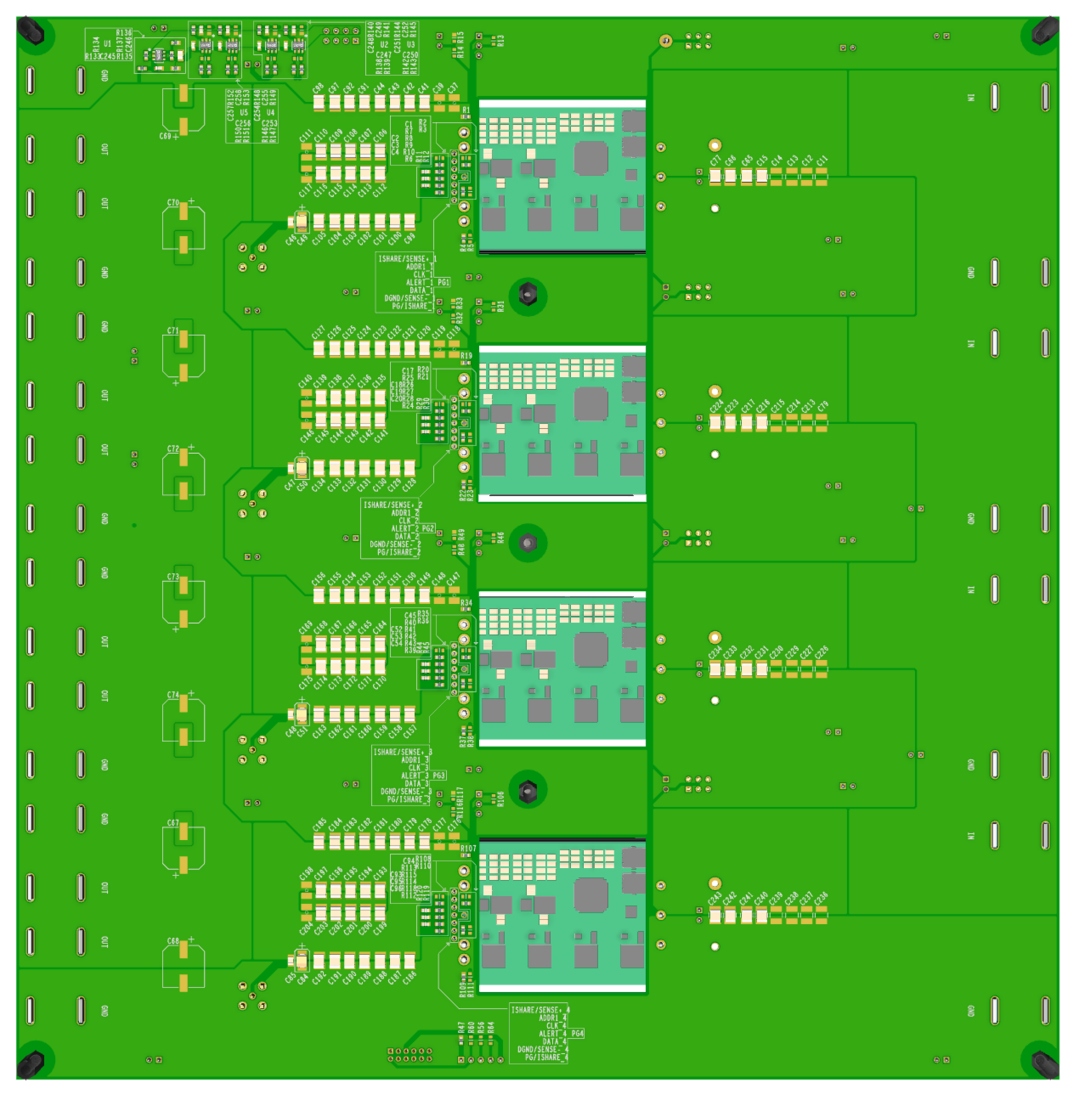

The EVAL-ADPM12160 evaluation (EV) board is a proven design that evaluates the ADPM12160, a 1600W, nonisolated quarter-brick DC-DC power module with a PMBus digital interface. The EV board comes with the ADPM12160CMLZCH installed as the default.

The EV board is designed to evaluate the performance of an ADPM12160 module, or two, or three, or four ADPM12160 modules in parallel operation.

The EV board operates over a 40V to 60V input voltage range and supports a 12V output voltage.

The MAX34451, a 16-channel V/I monitor, is used as the PMBus controller for voltage and current telemetry in the ADPM12160 module. The MAX34451 EV kit and its Windows^®-based graphical user interface (GUI) software are used for communication between the EVAL-ADPM12160 board and PC.
