ADPL83200

RECOMMENDED FOR NEW DESIGNS

Low Loss PowerPath Controller in a ThinSOT Package

Data Sheet (Rev. A) Product Selection Table
Viewing:

Overview

  • Very Low Loss Replacement for Power Supply OR’ing Diodes
  • Minimal External Components
  • Automatic Switching Between DC Sources
  • Simplifies Load Sharing with Multiple Batteries
  • Low Quiescent Current: 11μA
  • 3V to 28V AC/DC Adapter Voltage Range
  • 2.5V to 28V Battery Voltage Range
  • Reverse Battery Protection
  • Drives Almost Any Size MOSFET for a Wide Zange of Current Requirements
  • MOSFET Gate Protection Clamp
  • Manual Control Input
  • Low Profile (1mm) ThinSOT™ Package

The ADPL83200 controls an external P-channel MOSFET to create a near-ideal diode function for power switchover or load sharing. This permits highly efficient OR’ing of multiple power sources for extended battery life and low self-heating. When conducting, the voltage drop across the Metal-oxidesemiconductor field-effect transistor (MOSFET) is typically 20mV. For applications with a wall adapter or other auxiliary power source, the load is automatically disconnected from the battery when the auxiliary source is connected. Two or more ADPL83200s can be interconnected to allow load sharing between multiple batteries or charging multiple batteries from a single charger.

The wide supply operating range supports operation from one to six Li-Ion cells in series. The low quiescent current (11μA typical) is independent of the load current. The gate driver includes an internal voltage clamp for MOSFET protection.

The STAT pin can be used to enable an auxiliary P-channel MOSFET power switch when an auxiliary supply is detected. This pin may also be used to indicate to a microcontroller that an auxiliary supply is connected. The control (CTL) input enables the user to force the primary MOSFET off and the STAT pin low.

The ADPL83200 is available in a low-profile (1mm) ThinSOT package.

  • Cellular Phones
  • Notebook and Handheld Computers
  • Digital Cameras
  • USB-Powered Peripherals
  • Uninterruptible Power Supplies
  • Logic Controlled Power Switch
ADPL83200
Low Loss PowerPath Controller in a ThinSOT Package

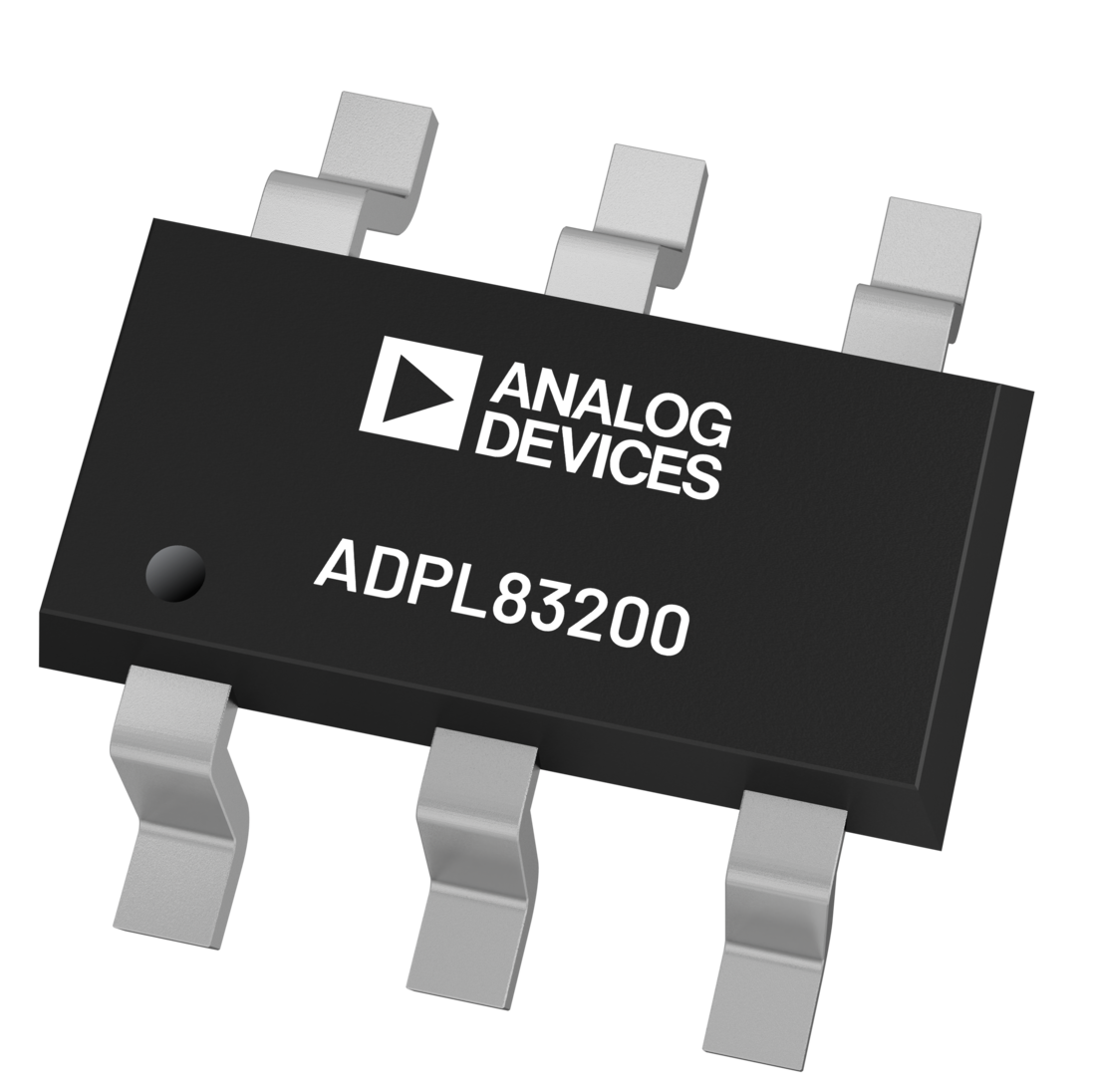

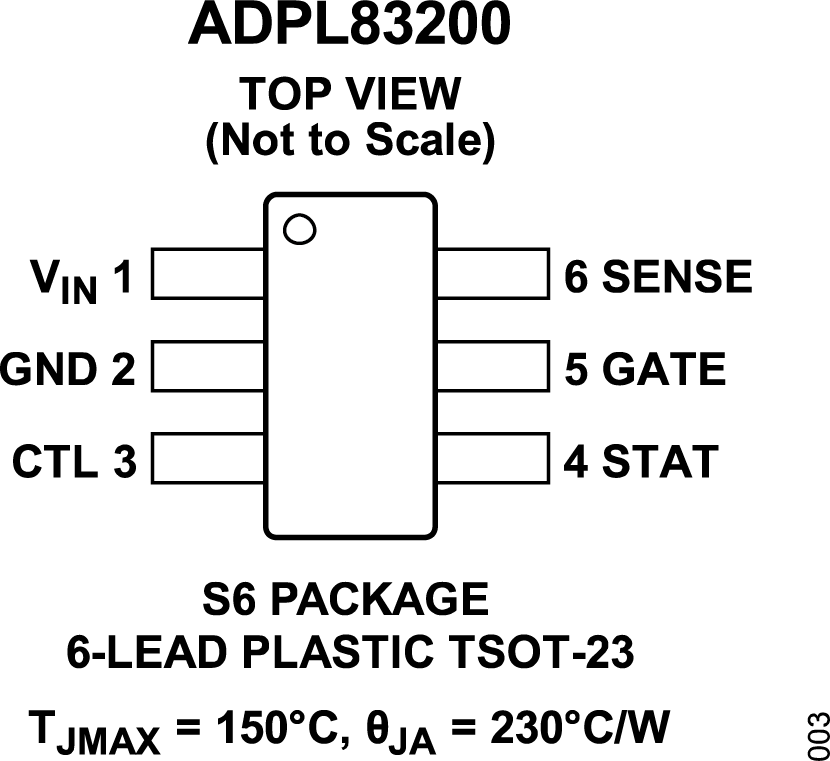

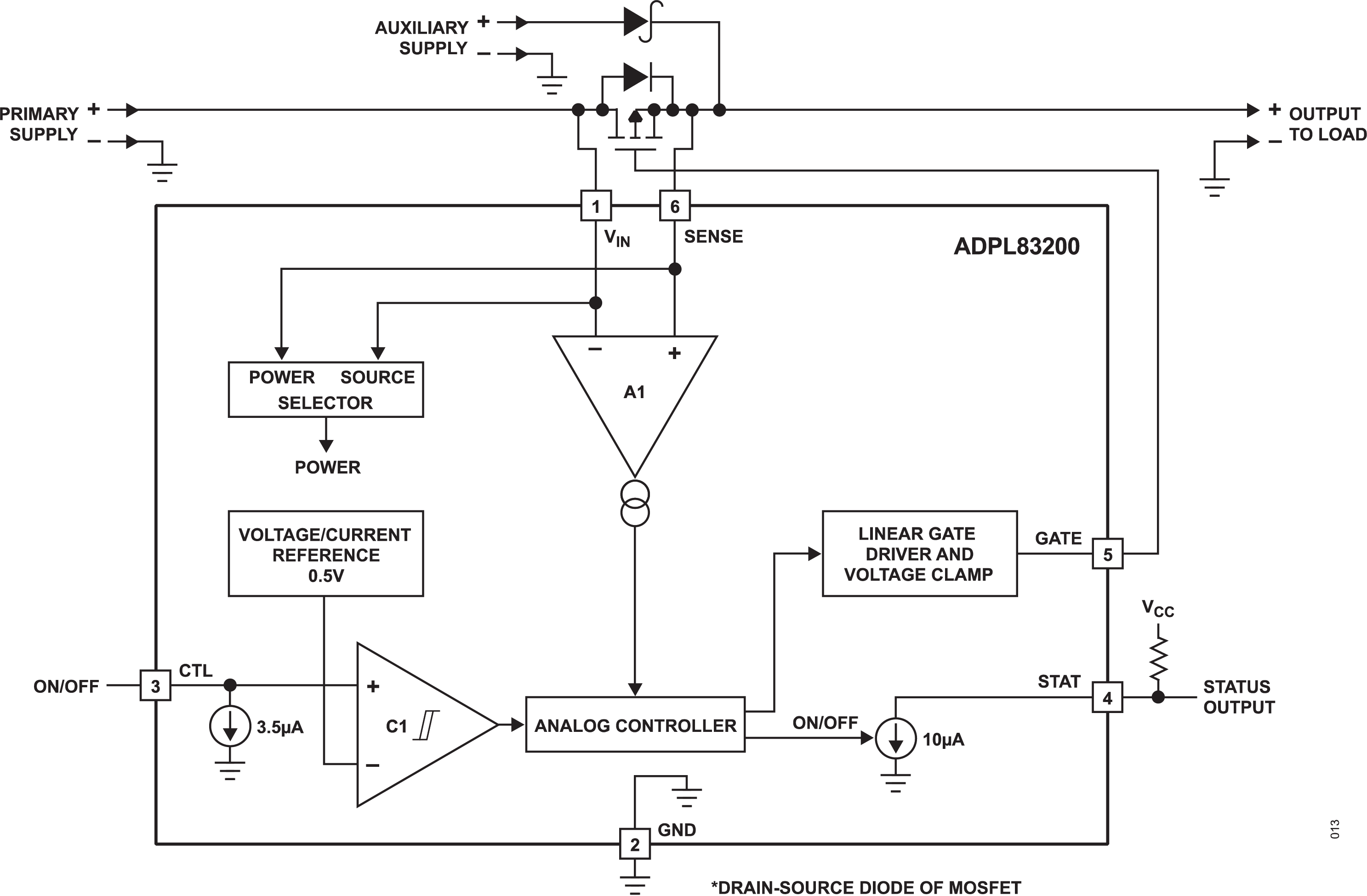

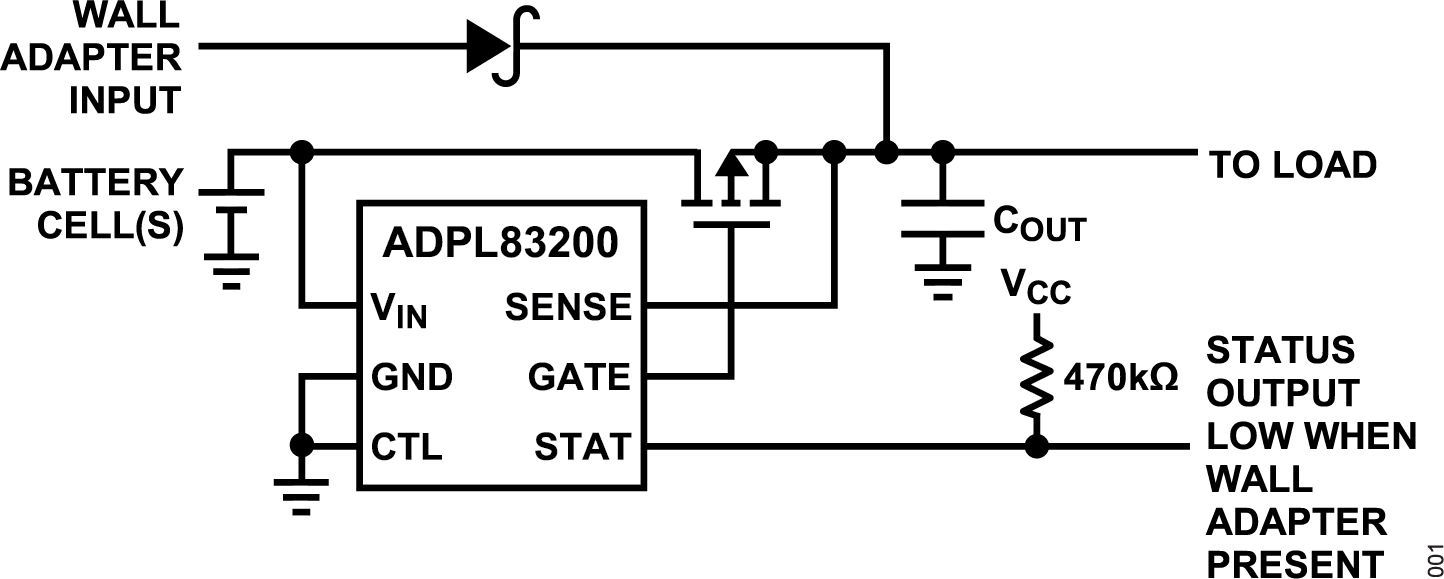

ADPL83200 Typical Application ADPL83200 Block Diagram ADPL83200 Pin Configuration ADPL83200 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADPL83200

Evaluates: ADPL83200

Buy Now View Details

Product Details

Evaluation board EVAL-ADPL83200-IZ features the ADPL83200IS6, low-loss PowerPath™ controller. The controller is capable of automatically switching between primary and auxiliary power sources for a single output. The ADPL83200 circuit is intended for lower current loads.

The input supply voltage ranges from 2.5V to 36V. As initially configured with the default MOSFET, the ADPL83200 circuit's maximum input voltage is 18V. The ADPL83200 circuit current limit is 2A.

The primary power paths can be controlled with external logic applied to the CTL pins. PowerPath status can be monitored using the STAT pins. Evaluation of higher current or more complex sourcing systems can be accomplished by installing additional ICs, as well as paralleling the inputs and/or outputs using the optional supplied pads. Multiple standard Metal-oxide-semiconductor field-effect transistor (MOSFET) package options are also available on each circuit for evaluation convenience.
EVAL-ADPL83200
Evaluates: ADPL83200

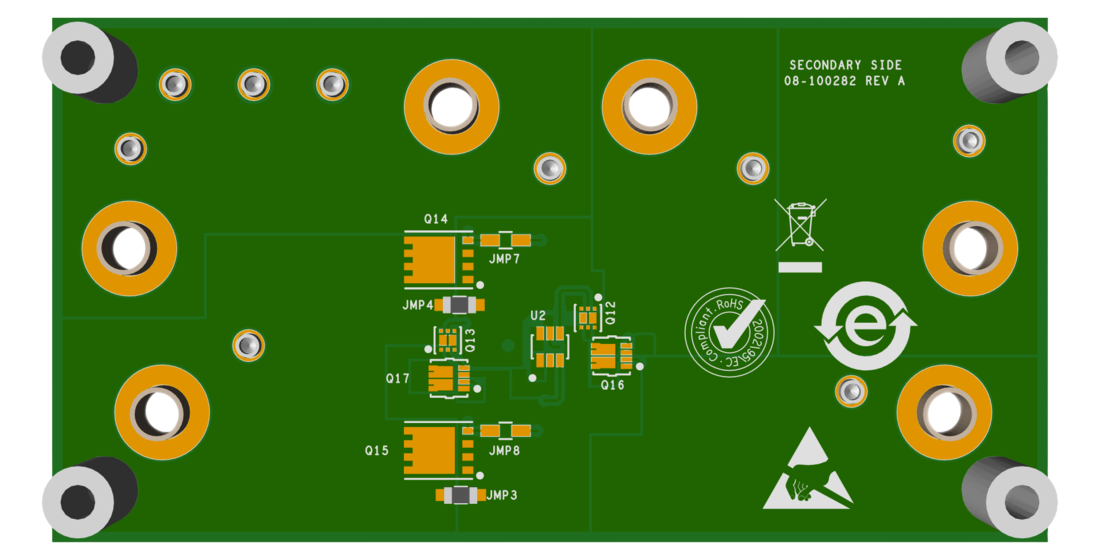

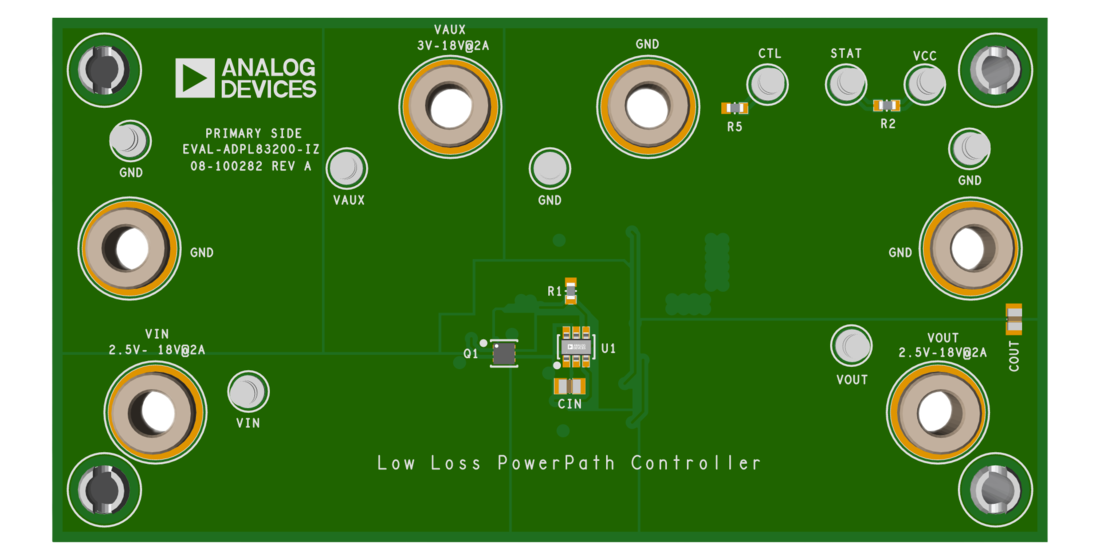

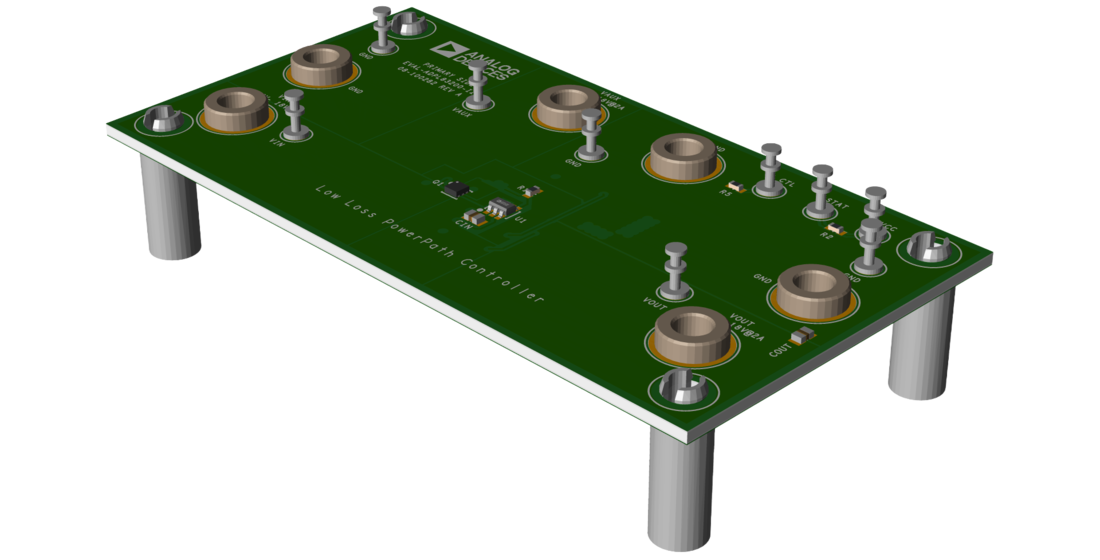

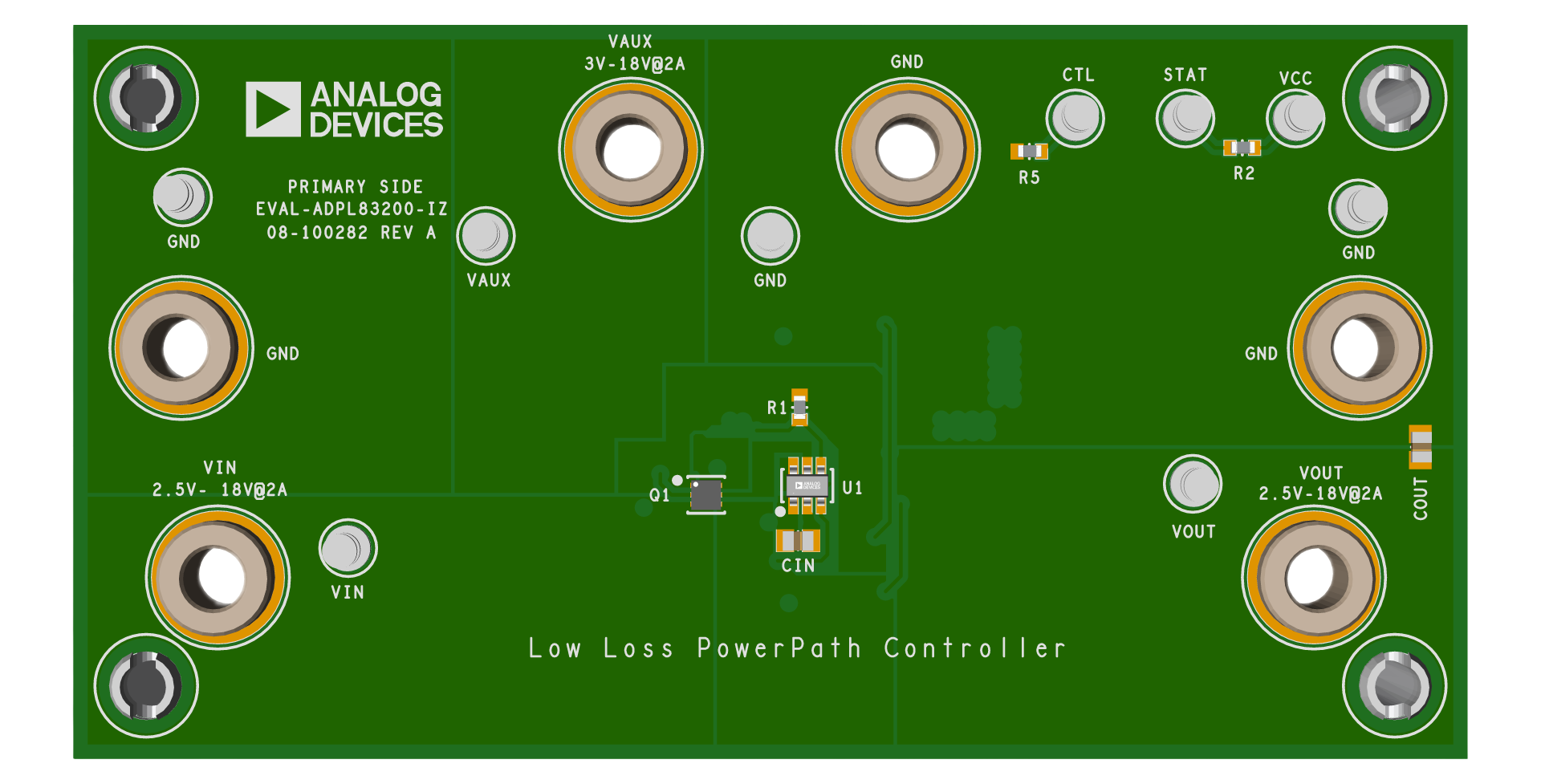

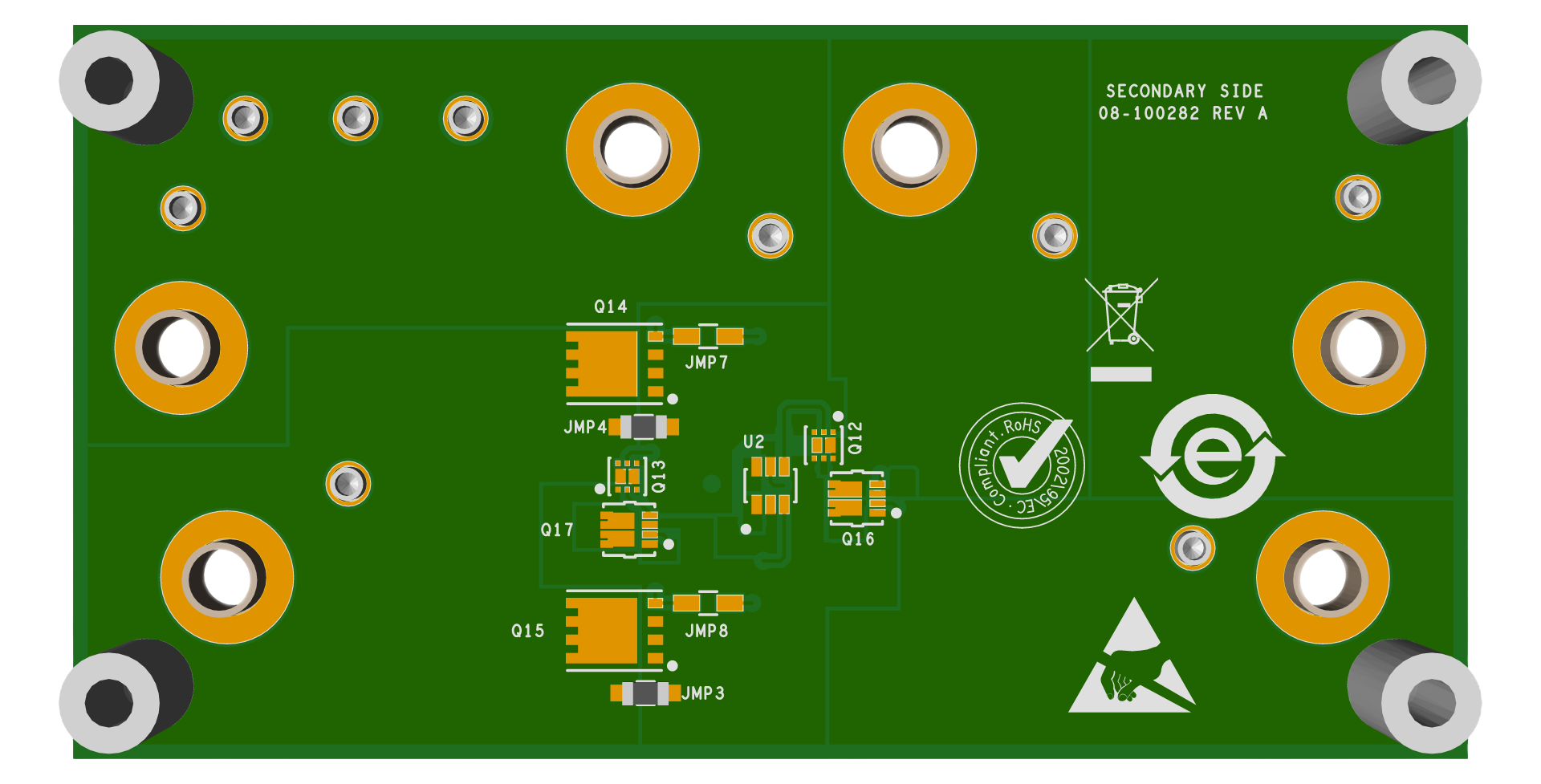

EVAL-ADPL83200 Board Photo Angle View EVAL-ADPL83200 Board Photo Top View EVAL-ADPL83200 Board Photo Bottom View
