ADPL21504

RECOMMENDED FOR NEW DESIGNS

Micropower Step-Up DC/DC Converter in a ThinSOT Package

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Part Details

  • Low Quiescent Current:
    • 20μA in Active Mode;
    • <2μA in Shutdown Mode
  • Operates with a VIN as Low as 1.2V
  • Low VCESAT Switch: 270mV at 300mA
  • Uses Small Surface Mount Components
  • High Output Voltage: Up to 30V
  • Low Profile (1mm) ThinSOTTM Package
ADPL21504
Micropower Step-Up DC/DC Converter in a ThinSOT Package

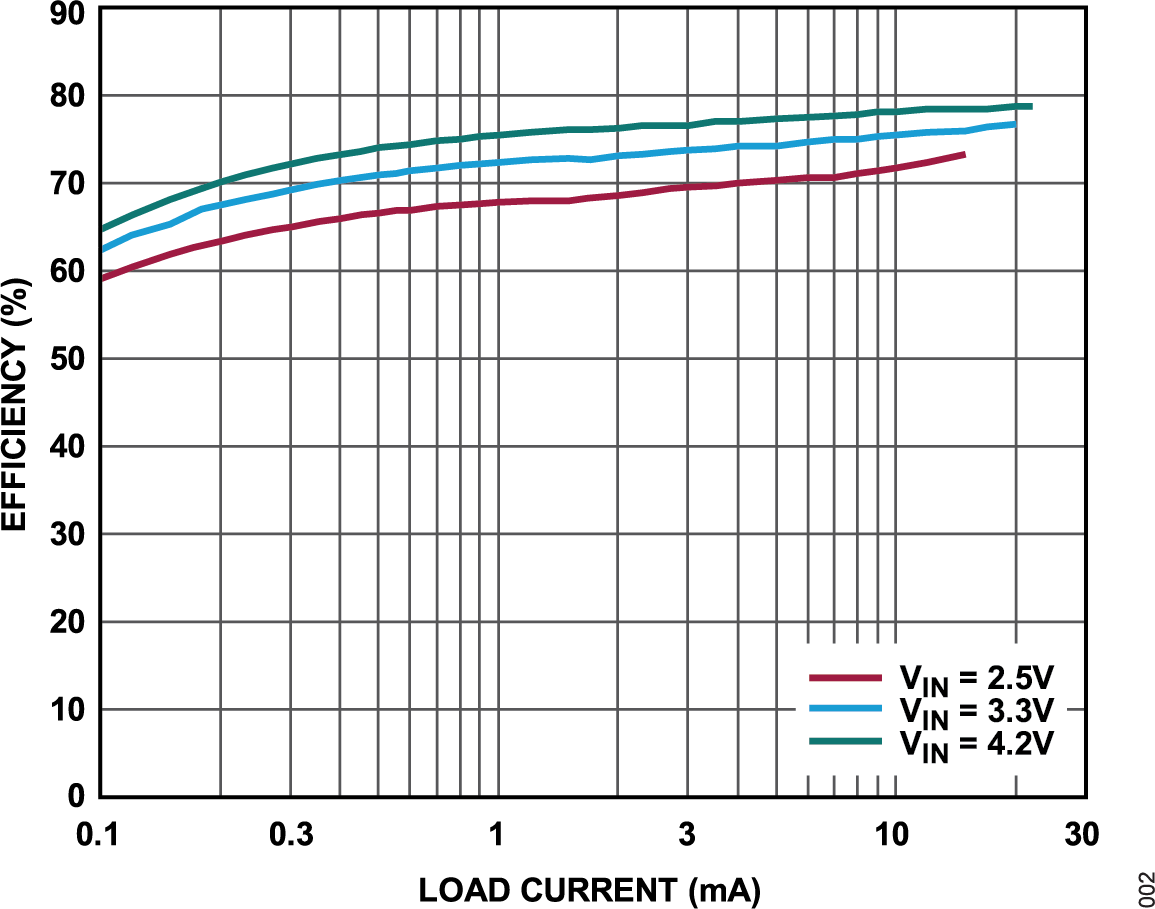

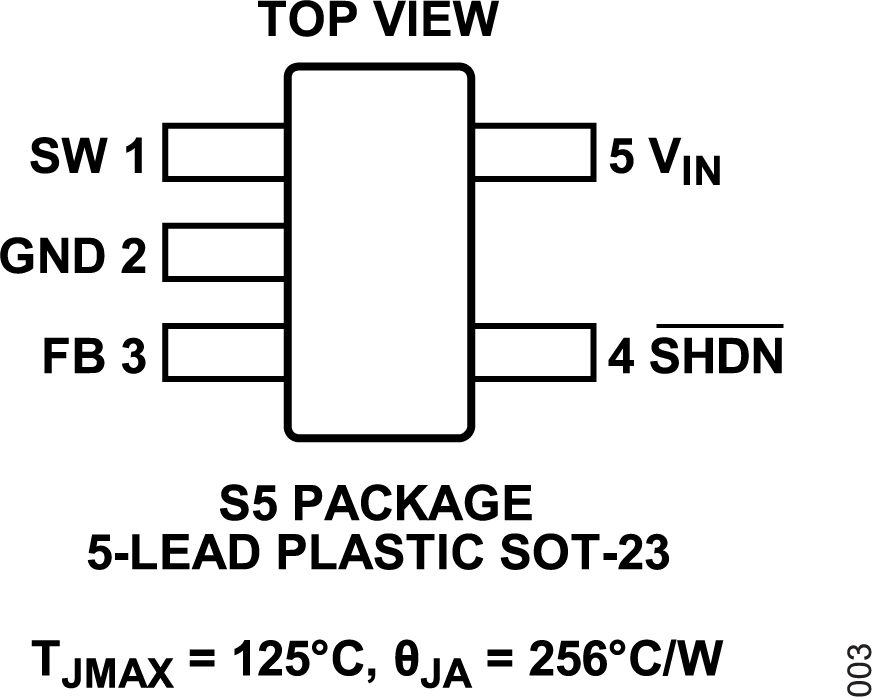

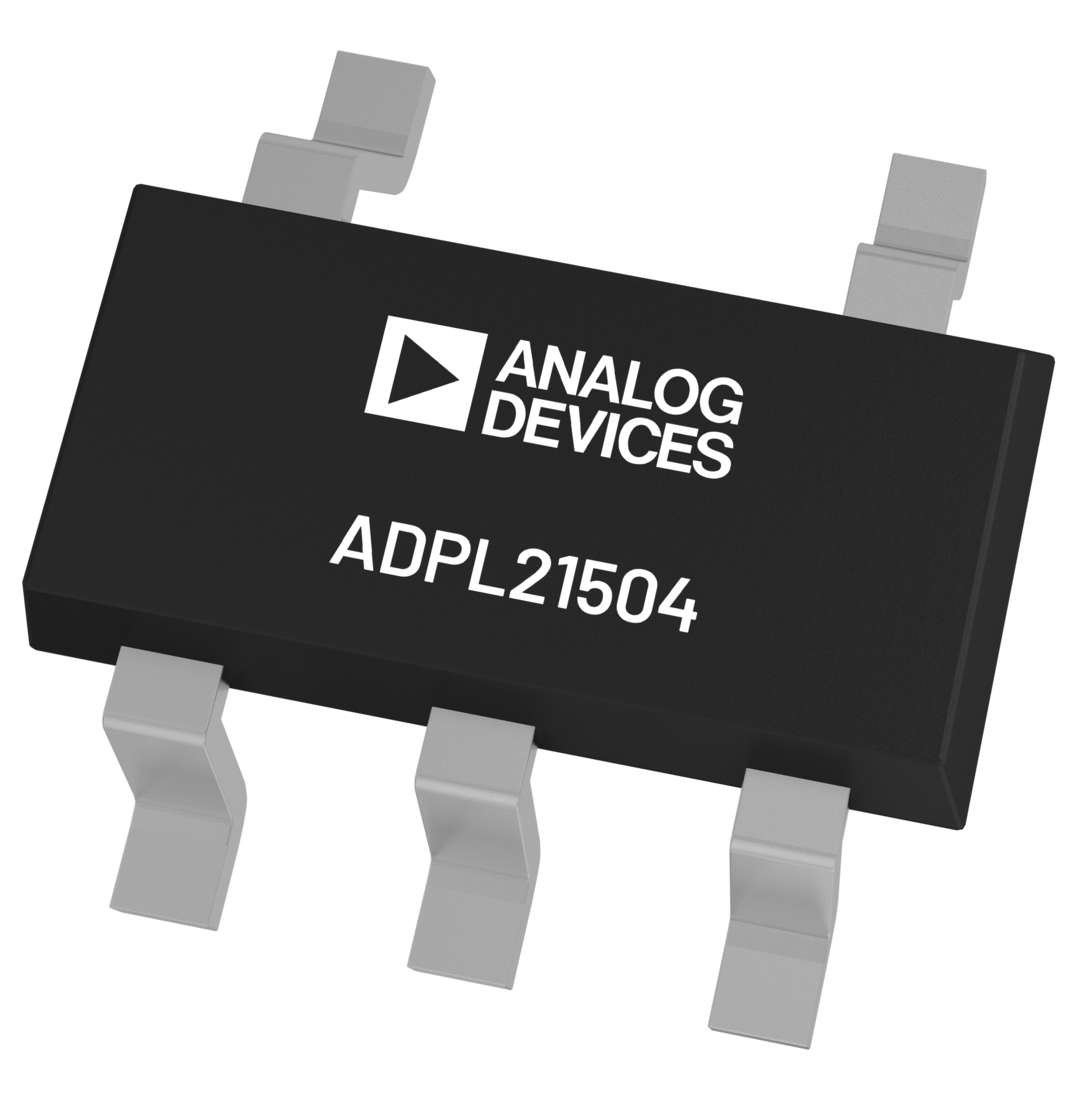

ADPL21504 Typical Application ADPL21504 Efficiency ADPL21504 Pin Configuration ADPL21504 Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
EVAL-ADPL21504-AZ

Evaluates: ADPL21504 in a 20V Output Voltage Application

Buy Now View Details

Features and Benefits

  • VOUT = 20V, VIN Range = 2.5V to 4.2V, IOUT = upto 20mA
  • Resistor Programmable Output Voltage
  • Features a Current-Limited, Fixed Off-Time control scheme
  • Internal Compensation and Soft-Start
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The EVAL-ADPL21504-AZ evaluation board features the ADPL21504, a micropower step-up DC/DC converter in a ThinSOT™ package.

The ADPL21504 is designed for higher power systems with a 350mA current limit. A current-limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current.

The ADPL21504’s low off-time of 400ns permits the use of tiny, low-profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.

The EVAL-ADPL21504-AZ evaluation board features an application circuit with a 20V output voltage, operating within an input voltage range of 2.5V to 4.2V and a load current upto 20mA.

The ADPL21504 data sheet must be read in conjunction with this user guide to properly use or modify the evaluation board.
EVAL-ADPL21504-AZ
Evaluates: ADPL21504 in a 20V Output Voltage Application

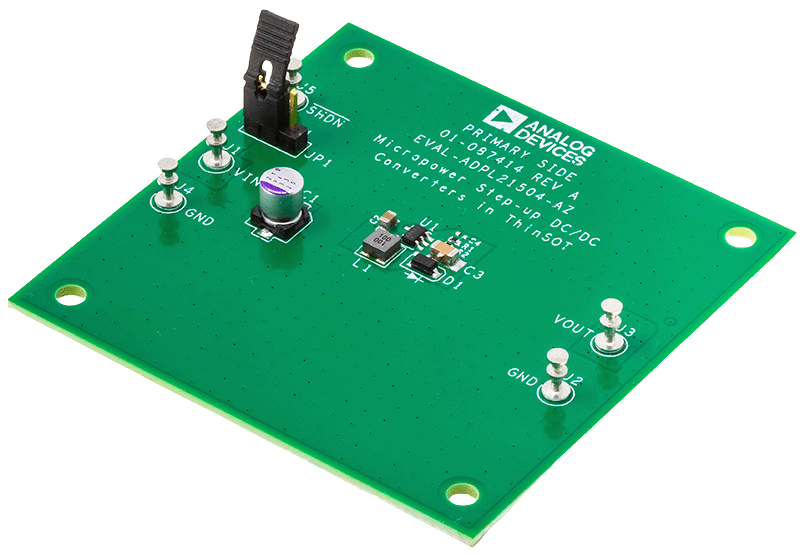

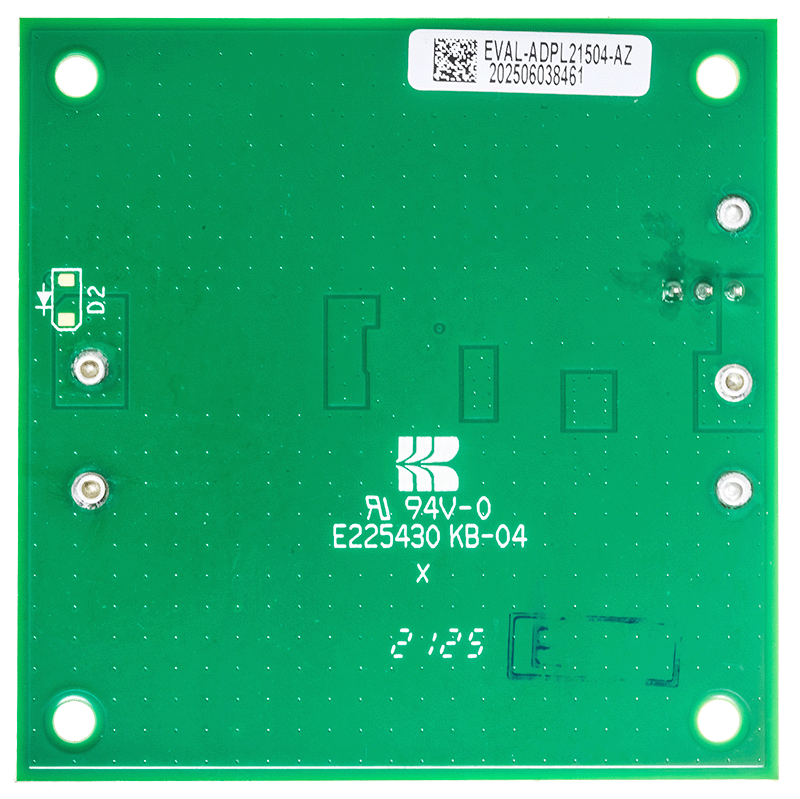

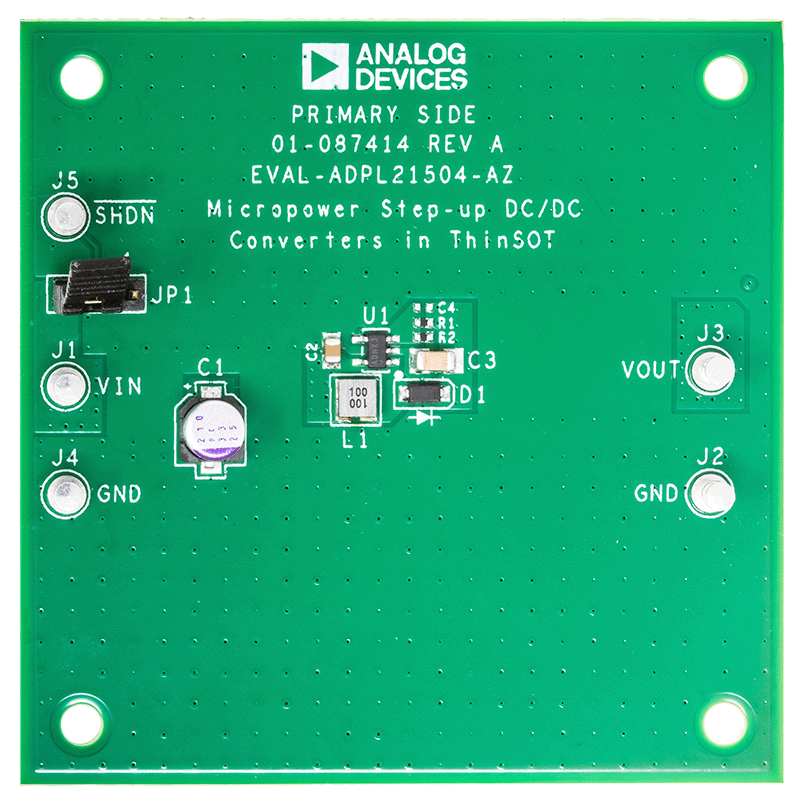

EVAL-ADPL21504-AZ Board Photo Angle View EVAL-ADPL21504-AZ Board Photo Top View EVAL-ADPL21504-AZ Board Photo Bottom View
