ADPL21501

RECOMMENDED FOR NEW DESIGNS

Micropower Step-Up DC/DC Converter in a ThinSOT Package

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $0.95

Viewing:

Overview

Low Quiescent Current:

20μA in Active Mode
<2μA in Shutdown Mode

Operates with a V_IN as Low as 1V
Low V_CESAT Switch: 95mV at 70mA

Uses Small Surface Mount Components
High Output Voltage: Up to 30V
Low Profile (1mm) ThinSOT^TM Package
Organic Light Emitting Diode (OLED) Power
Medical Diagnostic Equipment

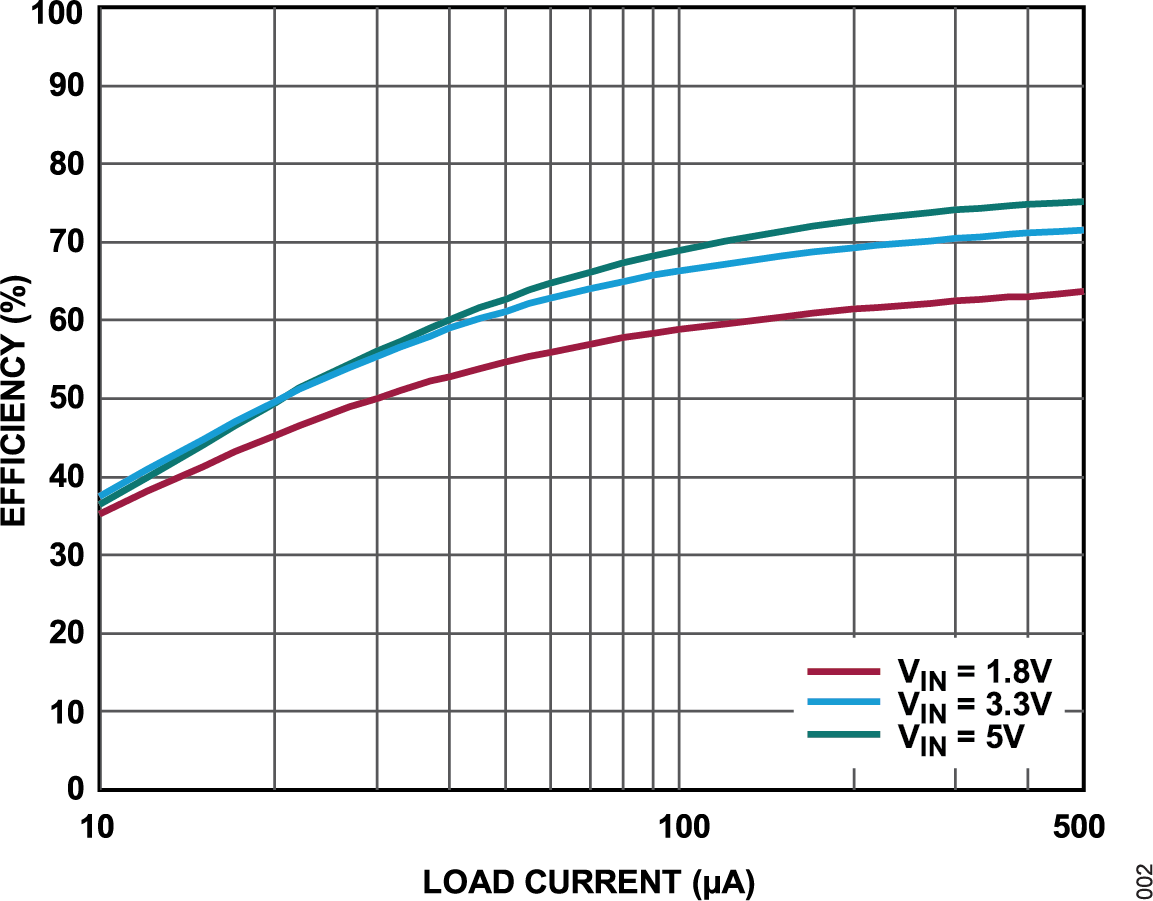

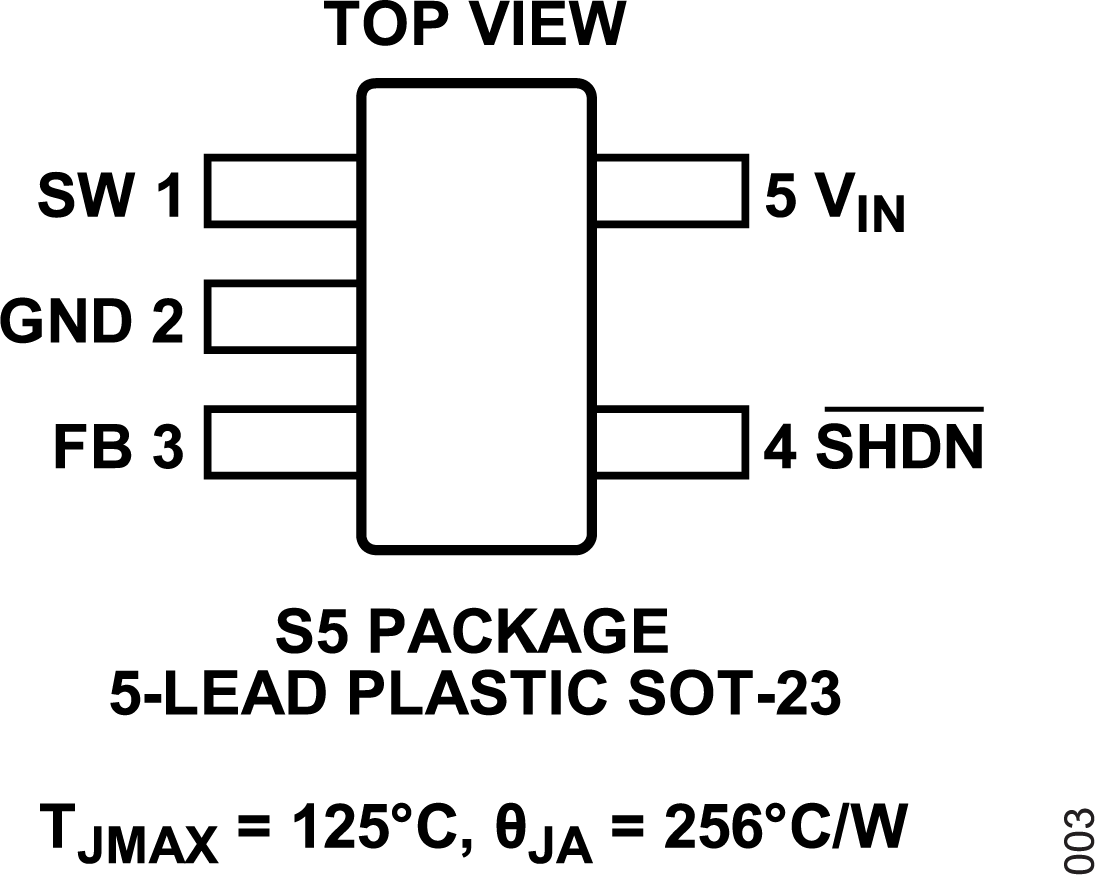

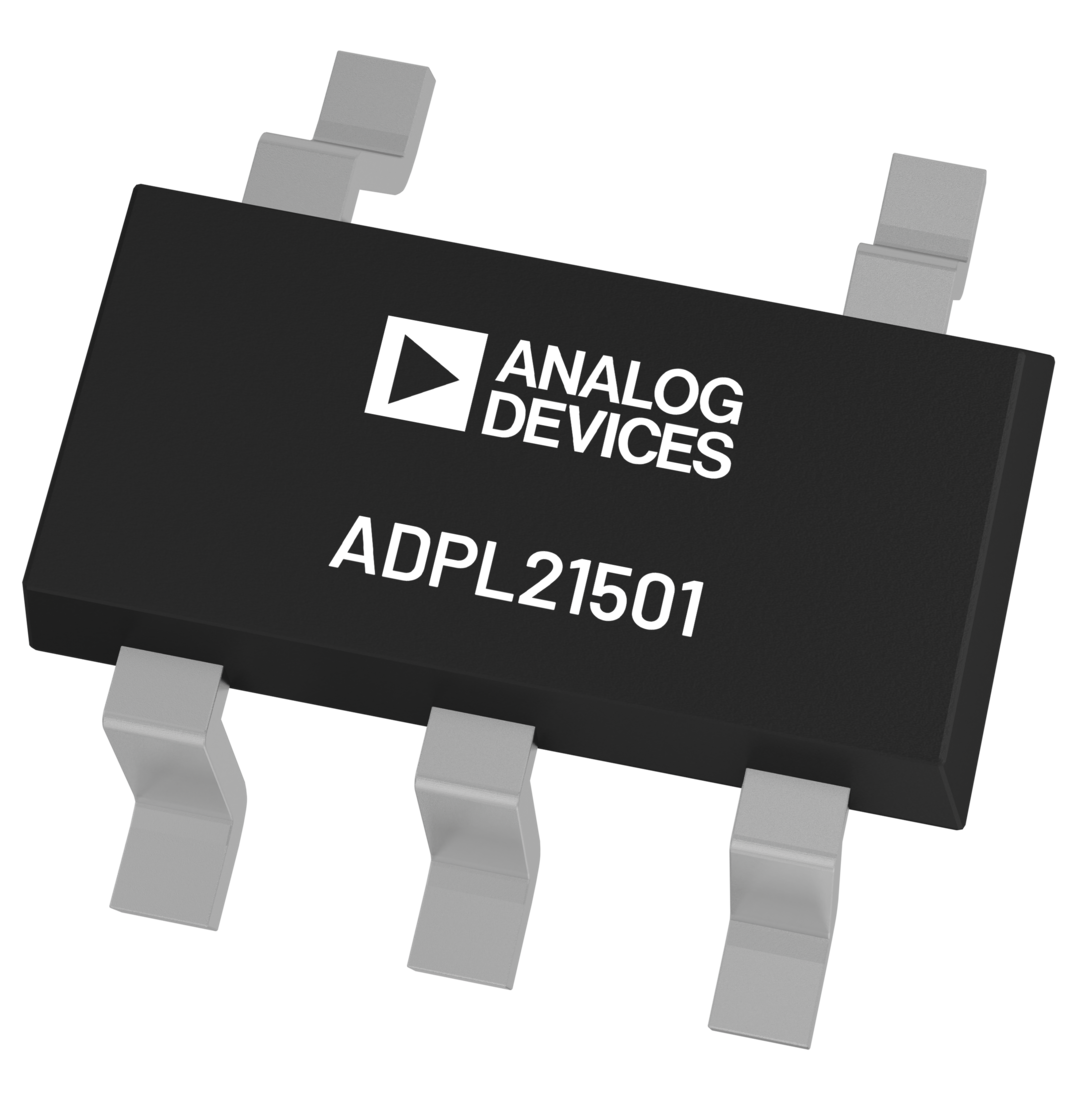

The ADPL21501 is a micropower step-up DC/DC converter in a 5-lead, low-profile (1mm) ThinSOT package. The ADPL21501 is designed for higher power systems with a 100mA current limit and an input voltage range of 1V to 15V. The ADPL21501 features a quiescent current of only 20μA at no load, which further reduces to 2μA (max) in shutdown. A current-limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load currents. The 32V switch enables the generation of high-voltage outputs up to 30V in a simple boost topology, eliminating the need for costly transformers. The ADPL21501’s low off-time of 400ns permits the use of tiny, low-profile inductors and capacitors, minimizing footprint and cost in space-conscious portable applications.

APPLICATIONS

Portable Electronics
Battery Backup
Digital Cameras
Organic Light Emitting Diode (OLED) Power
Medical Diagnostic Equipment

Part Models: 2
1ku List Price: Starting From $0.95

Documentation

Data Sheet 1

ADPL21501: Micropower Step-Up DC/DC Converter in a ThinSOT Package Data Sheet (Rev.0) 07/24/2025

User Guide 1

EVAL-ADPL21501-AZ User Guide: Evaluates: ADPL21501 in a 30V Output Voltage Application (Rev.0) 07/24/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL21501IS5#PBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADPL21501IS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluates: ADPL21501 in a 30V Output Voltage Application

Buy Now View Details

Features and Benefits

V_OUT = 30V, V_IN Range = 1V to 6V, I_OUT = 500μA
Resistor Programmable Output Voltage
Features a Current-Limited, Fixed Off-Time ControlScheme
Internal Compensation and Soft-Start
Proven PCB Layout
Fully Assembled and Tested

Product Details

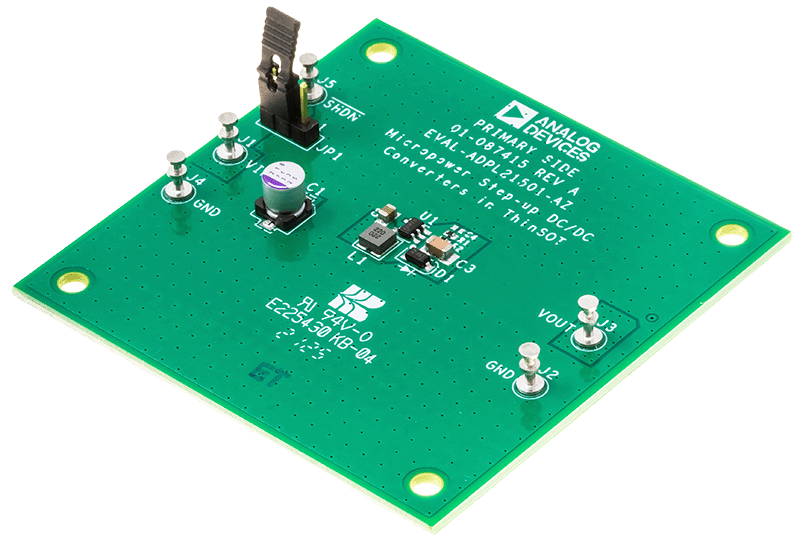

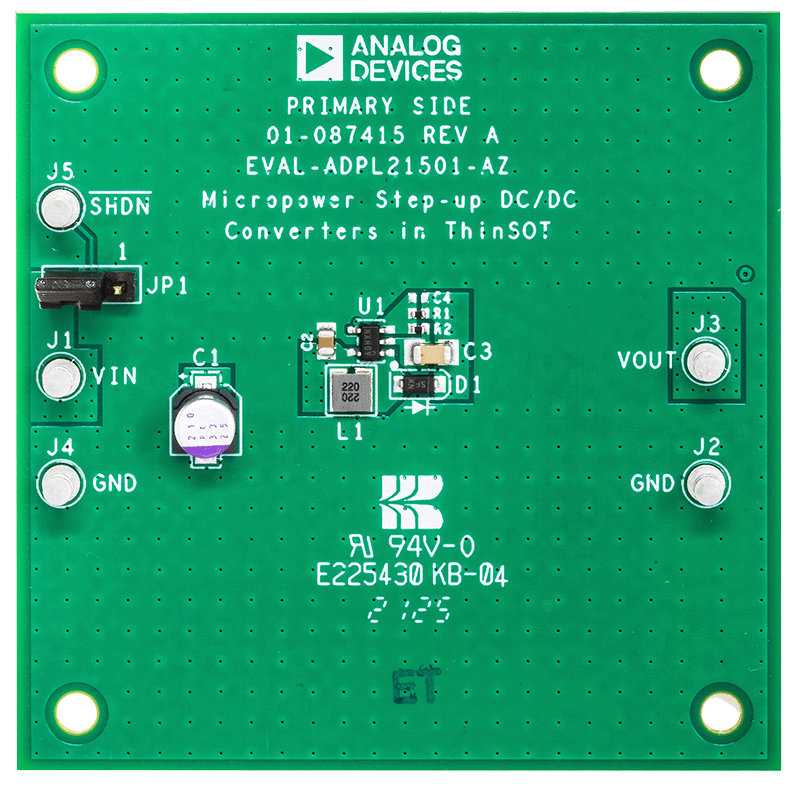

The EVAL-ADPL21501-AZ evaluation board features the ADPL21501, a micropower step-up DC/DC converter in a ThinSOT™ package.

The ADPL21501 is designed for higher power systems with a 100mA current limit. A current-limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current.

The ADPL21501’s low off-time of 400ns permits the use of tiny, low-profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.

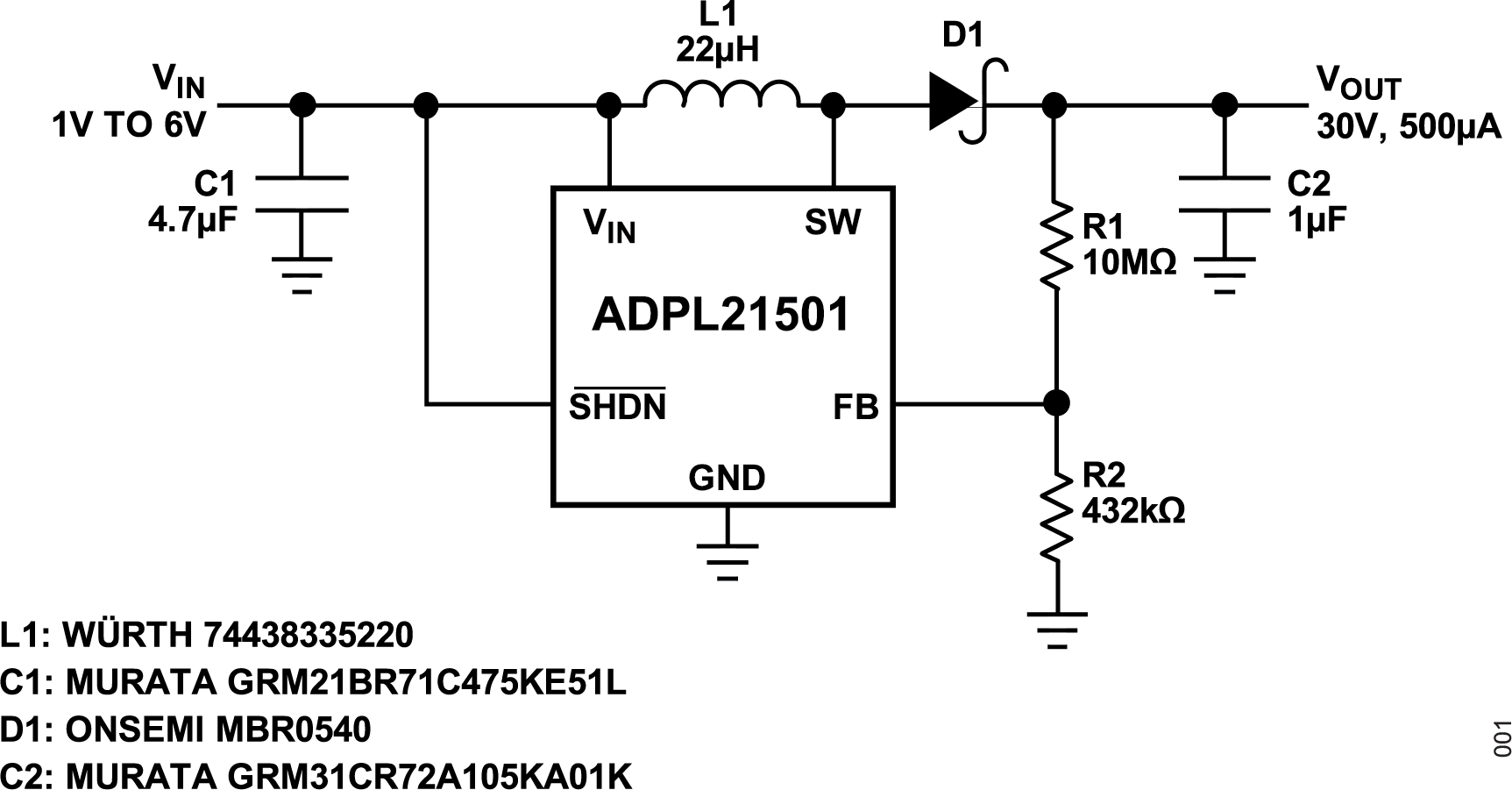

The EVAL-ADPL21501-AZ evaluation board features an application circuit with a 30V output voltage, operating within an input voltage range of 1V to 6V and a load current of 500μA.

The ADPL21501 data sheet must be read in conjunction with this user guide to properly use or modify the evaluation board.
