ADP172

300 mA, Low Quiescent Current, CMOS Linear Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 12
1ku List Price Starting From $0.39
Features
  • Maximum output current: 300 mA
  • Input voltage range: 1.6 V to 3.6 V
  • Low quiescent current
    • IGND = 23 μA with 0 mA load
    • IGND = 170 μA with 300 mA load
  • Low shutdown current: <1 μA
  • Low dropout voltage: 50 mV at 300 mA load
  • Output voltage accuracy: ±1%
  • Up to 31 fixed-output voltage options available from 0.8 V to 3.0 V
  • Accuracy over line, load, and temperature: ±3%
  • Stable with small 1 μF ceramic output capacitor
  • PSRR performance of 70 dB at 10 kHz and 73 dB at 1 kHz
  • Low noise: 30 μV rms at VOUT = 0.8 V
  • Current limit and thermal overload protection
  • Logic-controlled enable
  • Tiny 4-ball, 0.5 mm pitch WLCSP package

Additional Details
show more Icon

The ADP170/ADP171/ADP172 are low voltage input, low quiescent current, low-dropout (LDO) linear regulators that operate from 1.6 V to 3.6 V and provide up to 300 mA of output current. The low 50 mV dropout voltage at 300 mA load improves efficiency and allows operation over a wide input voltage range. The low 23 μA of quiescent current at no load makes the ADP172 ideal for battery-operated portable equipment.

The ADP172 is capable of 31 fixed-output voltage options, ranging from 0.8 V to 3.0 V. The ADP172 is optimized for stable operation with small 1 μF ceramic output capacitors. Ideal for powering digital processors, the ADP172 exhibits good transient perform- ance and occupies minimal board space. Compared with commodity-type LDOs, the ADP172 provides 20 dB to 40 dB better power supply rejection ratio (PSRR) at 100 kHz, making the ADP172 an ideal power source for analog-to-digital converter (ADC) mixed-signal processor systems and allowing use of smaller size bypass capacitors. In addition, low output noise performance without the need for an additional bypass capacitor further reduces printed circuit board (PCB) component count.

Short-circuit protection and thermal overload protection circuits prevent damage in adverse conditions. The ADP172 is available in a tiny 4-ball, 0.5 mm pitch WLCSP for the smallest footprint solution to meet a variety of portable power applications.

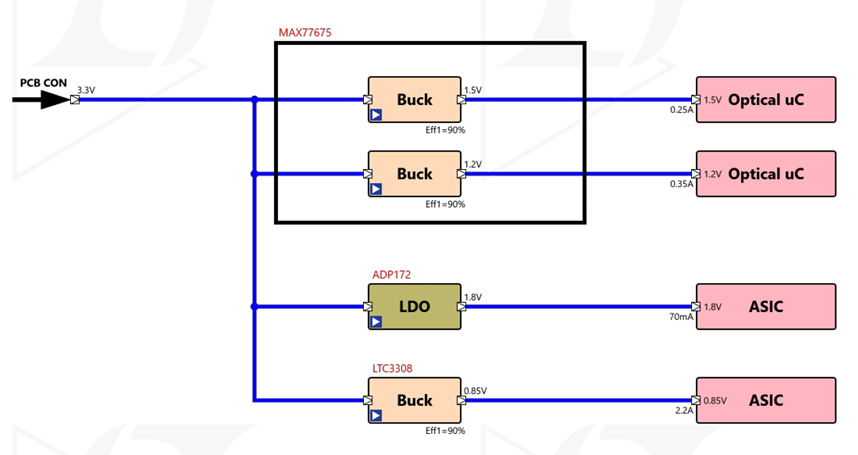

APPLICATIONS

  • Mobile phones
  • Digital camera and audio devices
  • Portable and battery-powered equipment
  • DSP/FPGA/microprocessor supplies
  • Post dc-to-dc regulation
Part Models 12
1ku List Price Starting From $0.39

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP172ACBZ-0.9-R7
  • HTML
  • HTML
ADP172ACBZ-1.0-R7
  • HTML
  • HTML
ADP172ACBZ-1.2-R7
  • HTML
  • HTML
ADP172ACBZ-1.26-R7
  • HTML
  • HTML
ADP172ACBZ-1.5-R7
  • HTML
  • HTML
ADP172ACBZ-1.65-R7
  • HTML
  • HTML
ADP172ACBZ-1.7-R7
  • HTML
  • HTML
ADP172ACBZ-1.8-R7
  • HTML
  • HTML
ADP172ACBZ-2.1-R7
  • HTML
  • HTML
ADP172ACBZ-2.2-R7
  • HTML
  • HTML
ADP172ACBZ-2.9-R7
  • HTML
  • HTML
ADP172ACBZ-3.0-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 28, 2012

- 11_0175

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

ADP172ACBZ-1.0-R7

PRODUCTION

ADP172ACBZ-1.2-R7

PRODUCTION

ADP172ACBZ-1.26-R7

PRODUCTION

ADP172ACBZ-1.5-R7

PRODUCTION

ADP172ACBZ-1.8-R7

PRODUCTION

ADP172ACBZ-2.1-R7

PRODUCTION

ADP172ACBZ-2.9-R7

PRODUCTION

ADP172ACBZ-3.0-R7

PRODUCTION

Jul 2, 2010

- 10_0167

Addition of reel supplier ePAK for WLCSP products at JCAP

ADP172ACBZ-1.0-R7

PRODUCTION

ADP172ACBZ-1.2-R7

PRODUCTION

ADP172ACBZ-1.26-R7

PRODUCTION

ADP172ACBZ-1.5-R7

PRODUCTION

ADP172ACBZ-1.8-R7

PRODUCTION

ADP172ACBZ-2.1-R7

PRODUCTION

ADP172ACBZ-3.0-R7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 28, 2012

- 11_0175

arrow down

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

ADP172ACBZ-1.0-R7

PRODUCTION

ADP172ACBZ-1.2-R7

PRODUCTION

ADP172ACBZ-1.26-R7

PRODUCTION

ADP172ACBZ-1.5-R7

PRODUCTION

ADP172ACBZ-1.8-R7

PRODUCTION

ADP172ACBZ-2.1-R7

PRODUCTION

ADP172ACBZ-2.9-R7

PRODUCTION

ADP172ACBZ-3.0-R7

PRODUCTION

Jul 2, 2010

- 10_0167

arrow down

Addition of reel supplier ePAK for WLCSP products at JCAP

ADP172ACBZ-1.0-R7

PRODUCTION

ADP172ACBZ-1.2-R7

PRODUCTION

ADP172ACBZ-1.26-R7

PRODUCTION

ADP172ACBZ-1.5-R7

PRODUCTION

ADP172ACBZ-1.8-R7

PRODUCTION

ADP172ACBZ-2.1-R7

PRODUCTION

ADP172ACBZ-3.0-R7

PRODUCTION

Software and Part Ecosystem

Software and Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

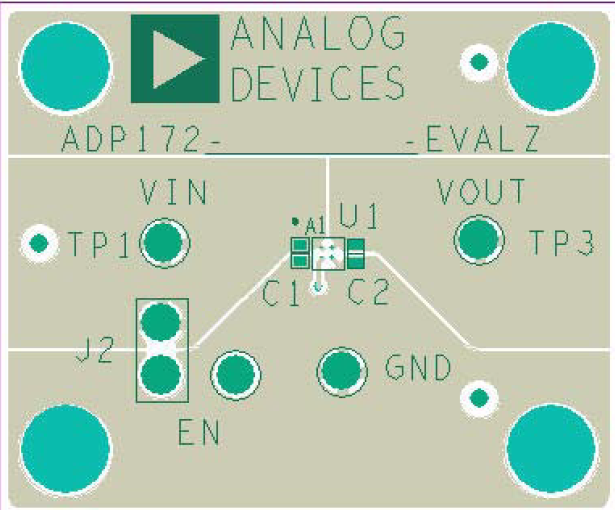

EVAL-ADP172

ADP172 Evaluation Board

zoom

EVAL-ADP172

ADP172 Evaluation Board

ADP172 Evaluation Board

Features and Benefits

  • Input voltage range: 1.6 V to 3.6 V
  • Output current range: 0 mA to 300 mA
  • Output voltage accuracy: ±1%
  • Operating temperature range: −40°C to +125°C

Product Detail

The ADP172 evaluation board is used to demonstrate the functionality of the ADP172 series of linear regulators. Simple device measurements such as line and load regulation, dropout voltage, and ground current can be demonstrated with only a single voltage supply, a voltmeter, a current meter, and load resistors.


For more information about the ADP172 linear regulator, see the ADP172 data sheet.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
