ADMV8809

RECOMMENDED FOR NEW DESIGNS

0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $80.00

Viewing:

Overview

Digitally tunable, high-pass and low-pass tuning
Suboctave bandwidths with additional user adjustability
Rejection: 40dB
Single-chip replacement for discrete filter banks

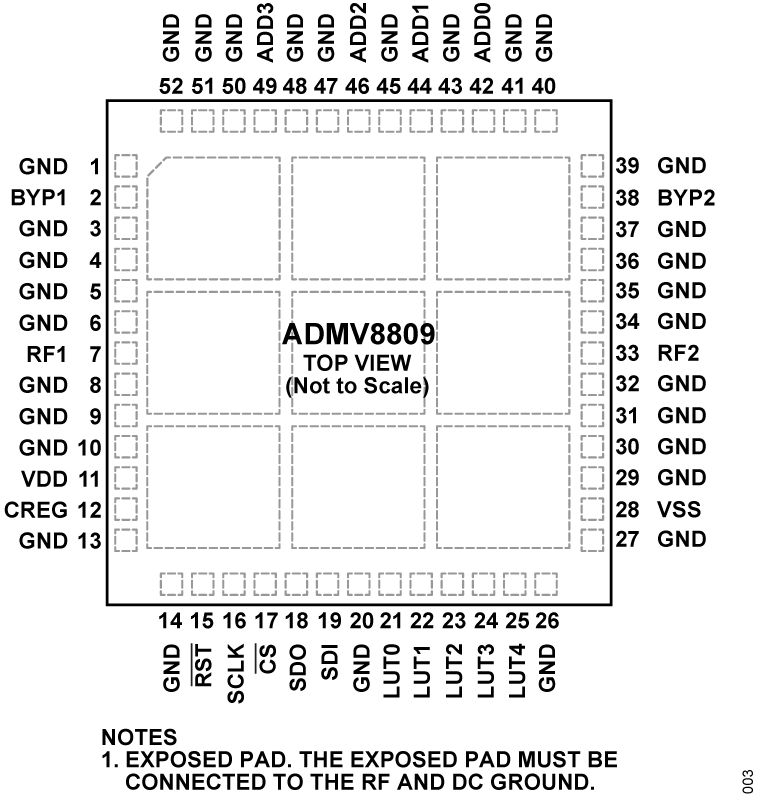

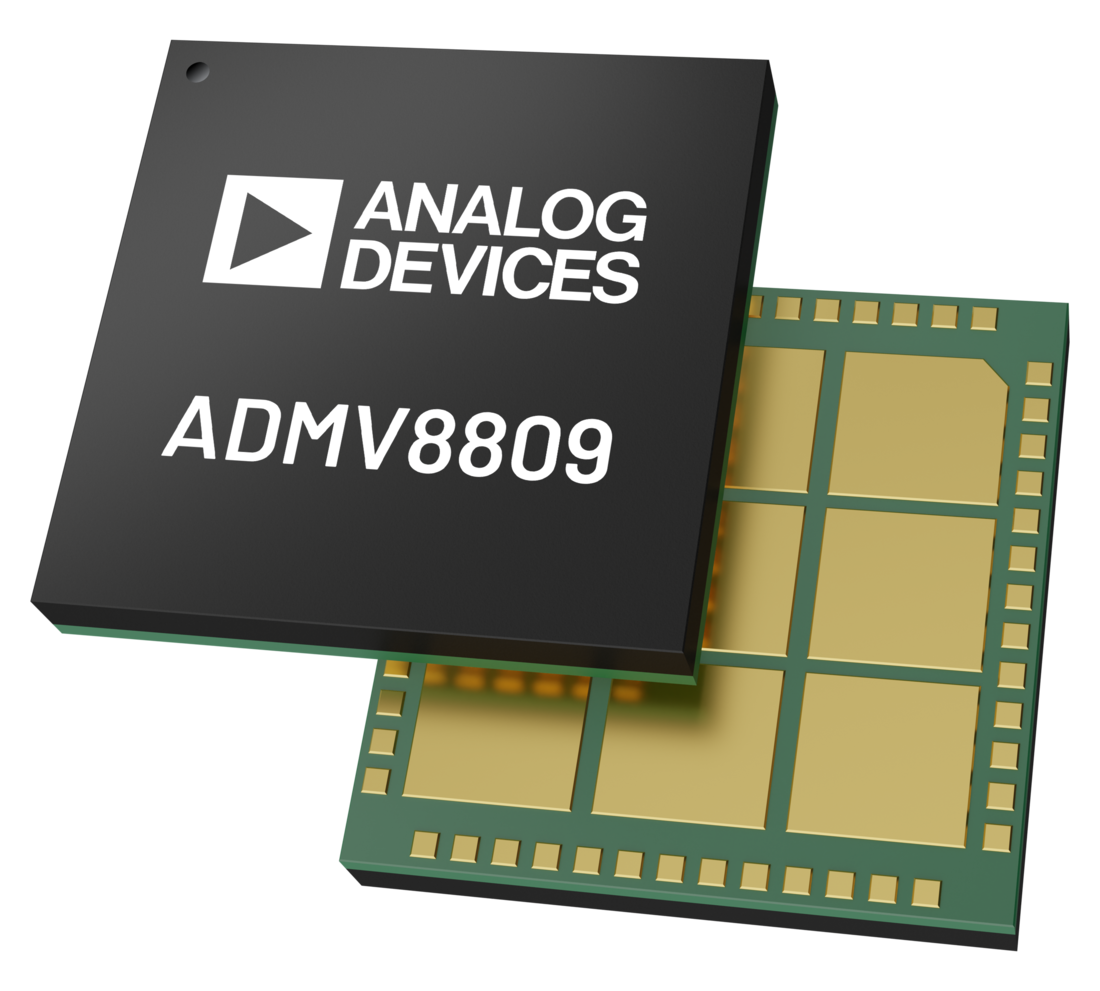

Compact, 8mm × 8mm × 1.07mm LGA package

The ADMV8809 is a fully monolithic microwave IC (MMIC) that features digitally selectable operating frequencies. The device features four independently controlled high-pass filters (HPFs) and low-pass filters (LPFs) that span the 0.5GHz to 9GHz frequency range (f_CENTER).

The flexible architecture of the ADMV8809 allows the 3dB cutoff frequency (f_3dB) of the high-pass and low-pass filters to be controlled independently. The digital logic control on each filter is 3-bits wide (eight states) and controls the on-chip reactive elements to adjust the f3dB. The typical insertion loss is <6.2dB. When using the HPF = LPF state, the filter has 40dB rejection for the low side at 0.5 × f_U3dB and for the high side at 2 × f_L3dB, which is ideally suited for minimizing system second-order intercept (IP2) and harmonics.

This tunable filter can be used as a smaller alternative to large switched filter banks and discrete component-based tunable filters, and the ADMV8809 provides a dynamically adjustable solution in advanced communications applications.

APPLICATIONS

Land mobile radios
Test and measurement equipment
Military radars, electronic warfare, and electronic countermeasures
Satellite communications
Industrial and medical equipment

Part Models: 2
1ku List Price: Starting From $80.00

Documentation

Data Sheet 1

ADMV8809: 0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters Data Sheet (Rev.0) 10/22/2025

User Guide 1

EVAL-ADMV8809 User Guide: Evaluating the ADMV8809 0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters (Rev.0) 10/22/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADMV8809ACCZ-PT	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADMV8809ACCZ-R7	LGA/CASON/CH ARRY SO NO LD	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter Files (S2P)

S-Parameters for RF and Microwave Tunable Filters

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADMV8809 0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters

Buy Now View Details

Features and Benefits

Fully featured evaluation board for the ADMV8809
On-board system demonstration platform (EVAL-SDP-CS1Z (SDP-S)) connector for SPI
Evaluation using on-board LDO regulators power by the USB
ACE Software interface for SPI control

Product Details

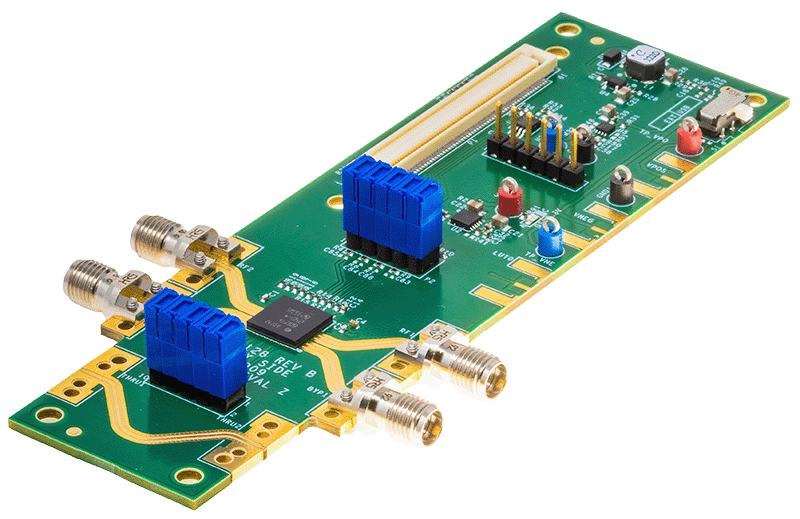

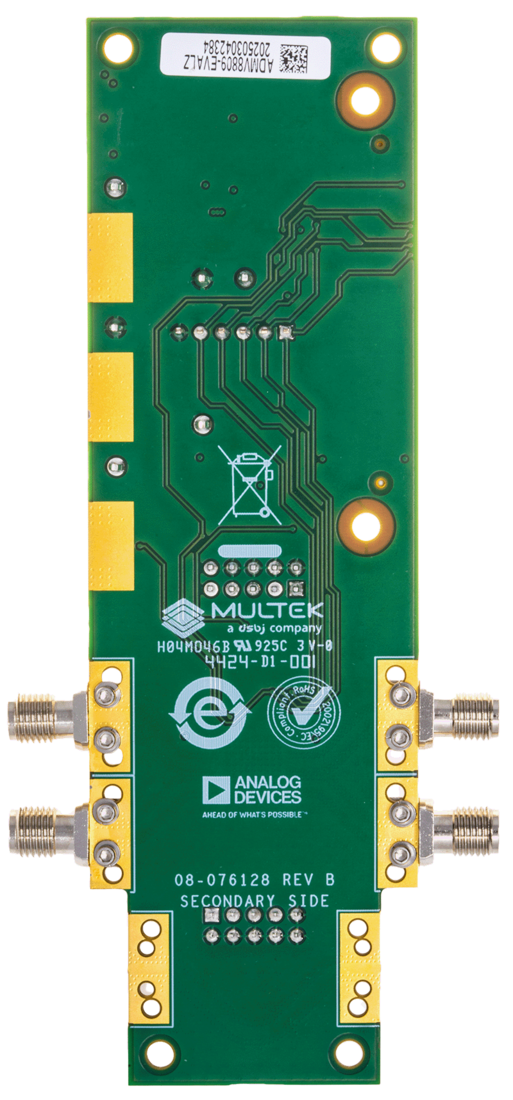

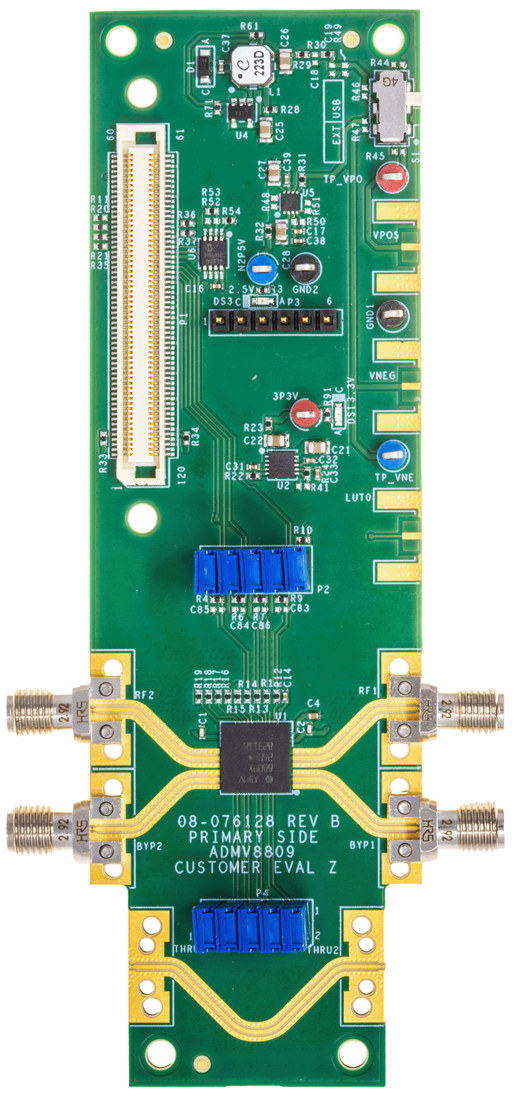

The ADMV8809-EVALZ is an evaluation board available for evaluating the ADMV8809 digitally tunable, high-pass filter and low-pass filter. The evaluation board incorporates the ADMV8809 chip, as well as a negative voltage generator, low dropout (LDO) regulators, and an interface to the SDP-S controller board to allow for simple and efficient evaluation. The negative voltage generator and LDO regulators allow the ADMV8809 to be powered by either the 5 V USB supply voltage from the PC via the SDP-S controller board or by using two external power supplies.

The ADMV8809 is an IC that features a digitally selectable, operating frequency. The chip can be programmed using a 4‑wire serial port interface (SPI). The SDP-S controller board allows the user to interface with the ADMV8809 SPI through the Analog Devices, Inc., Analysis, Control Evaluation (ACE) Software.

For full details on the ADMV8809, see the ADMV8809 data sheet, which must be consulted in conjunction with this user guide when using the ADMV8809-EVALZ.

Resources

EVAL-ADMV8809 User Guide: Evaluating the ADMV8809 0.5GHz to 9GHz, Digitally Tunable, High-Pass Filters and Low-Pass Filters (Rev.0)
10/22/2025

Latest Discussions

No discussions on ADMV8809 yet. Have something to say?

Start a Discussion on EngineerZone®
