Features and Benefits
- Maximum conversion gain: 33 dB typical
- Gain tuning range: 40 dB minimum
- PSAT: 26 dBm typical for a gain = 23.5 dB and 19.5 dB
- OIP3: 31 dBm typical for a gain = 23.5 dB and POUT = 16.5 dBm per tone
- OP1dB: 25 dBm typical for a gain = 23.5 dB and 19.5 dB
- Built-in power detector
- Built-in envelope detector for LO nulling

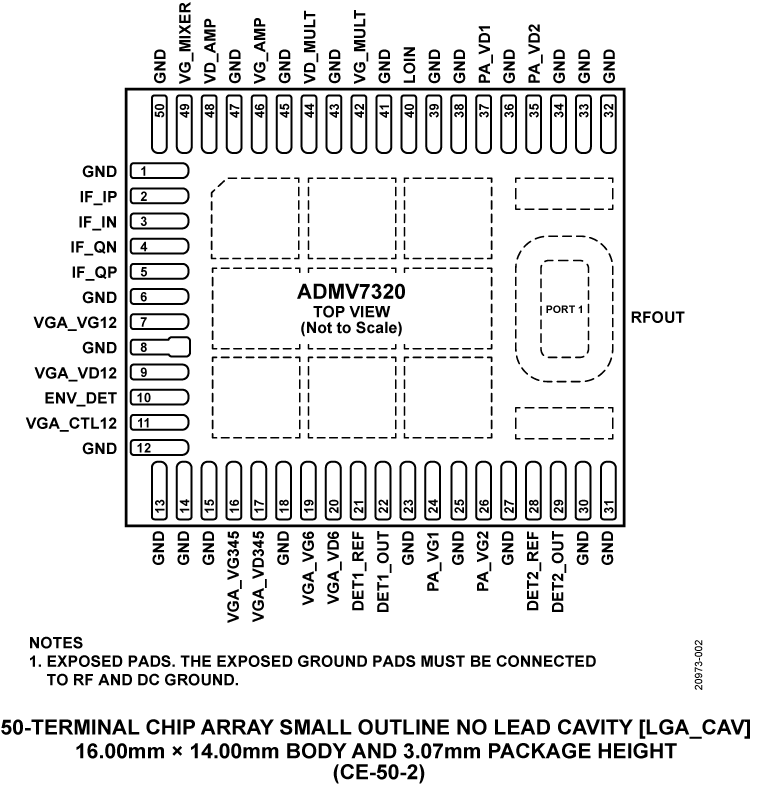

- Fully integrated, surface-mount, 50-terminal, 16.00 mm × 14.00 mm LGA_CAV package

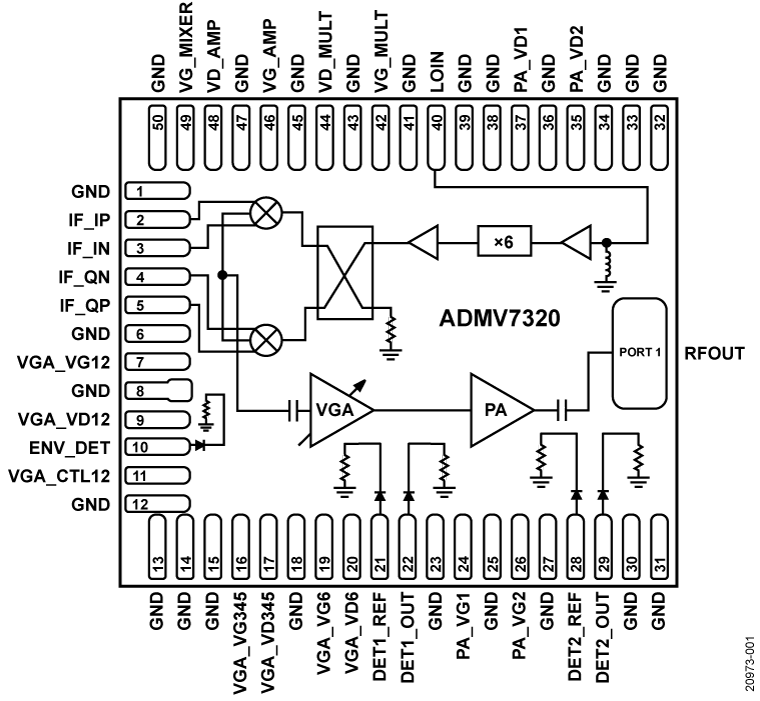

The ADMV7320 is a fully integrated system in package (SiP), in phase/quadrature (I/Q) upconverter that operates between an intermediate frequency (IF) input range of dc and 2 GHz and a radio frequency (RF) output range of 81 GHz and 86 GHz. The device uses an image rejection mixer that is driven by a 6× local oscillator (LO) multiplier. The mixer RF output is followed by a variable gain amplifier (VGA) and a power amplifier (PA), providing a conversion gain of 33 dB typical. Differential I and Q mixer inputs are provided and can be driven with differential I and Q baseband waveforms for direct conversion applications. Alternatively, the inputs can be driven using an external 90° hybrid and two external 180 hybrids for single-ended applications.
The ADMV7320 comes in a fully integrated, surface-mount, 50-terminal, 16.00 mm × 14.00 mm, chip array small outline no lead cavity (LGA_CAV) package. The ADMV7320 operates over the −40°C to +85°C temperature range.
- E-band communication systems
- High capacity wireless backhauls
- Test and measurement
- Aerospace and defense
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

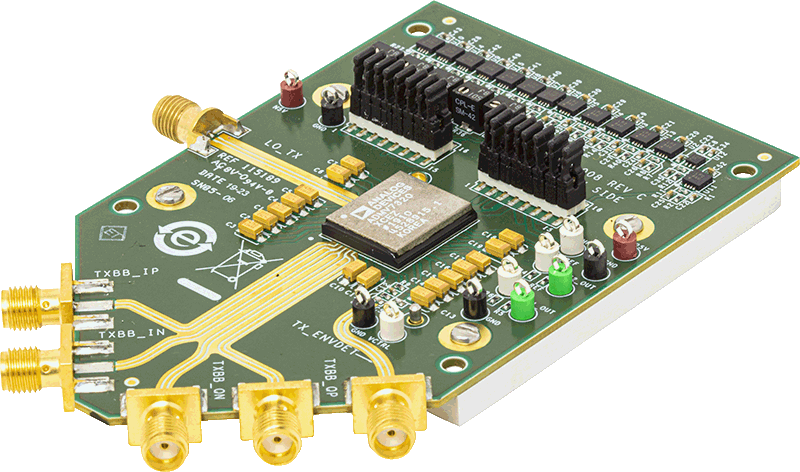

The ADMV7320-EVALZ evaluation board incorporates the ADMV7320 with low dropout (LDO) regulators, potentiometers, and a waveguide back plate to allow quick and easy evaluation of the ADMV7320. The LDO regulators allow the ADMV7320 to be powered on by ±5 V dc supplies. Potentiometers allow gates tuning for various gain range.
The ADMV7320 is a fully integrated system in package (SiP) inphase/quadrature (I/Q) upconverter that operates from 81 GHz to 86 GHz.
For full details, see the ADMV7320 data sheet, which must be consulted and used in conjunction with this user guide when using the ADMV7320-EVALZ.
