ADL8120
30 kHz to 20 GHz, Ultra-Wideband, Low Noise Amplifier
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- Single positive supply (self biased)
- Resistor programmable bias setting
- Wideband operation: 30 kHz to 20 GHz
- Extended operating temperature range: −55°C to +125°C
- RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP
The ADL8120 is an ultra-wideband low noise amplifier (LNA) that operates from 30 kHz to 20 GHz. Typical gain and noise figure are 14 dB and 1.9 dB, respectively, from 30 kHz to 14 GHz. Output power for 1 dB compression (OP1dB), output third-order intercept (OIP3), and output second-order intercept (OIP2) are 16 dBm, 29.5 dBm and 33 dBm, respectively, from 30 kHz to 14 GHz. The nominal quiescent current (IDQ), which can be adjusted, is 55 mA from a 3.3 V supply voltage (VDD). The internally matched, DC-coupled RF input and output pins require external AC coupling capacitors along with a bias inductor on RFOUT. In addition, the RF input is biased through an external inductor connected between the VBIAS pin and the RFIN pin.
The ADL8120 is fabricated on a pseudomorphic high electron mobility transistor (pHEMT) process. It is housed in a RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP and is specified for operation from −55°C to +125°C.
- Telecommunications
- Instrumentation
- Radar
- Electronic warfare
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
ADL8120ACPZN | 8-lead LFCSP 2 mm × 2 mm × 0.85 |
|
|
ADL8120ACPZN-CSL | 8-lead LFCSP 2 mm × 2 mm × 0.85 |
|
|
ADL8120ACPZN-R7 | 8-lead LFCSP 2 mm × 2 mm × 0.85 |
|
|
ADL8120ACPZN-R7-CSL | 8-lead LFCSP 2 mm × 2 mm × 0.85 |
|
- ADL8120ACPZN
- Pin/Package Drawing
- 8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADL8120ACPZN-CSL
- Pin/Package Drawing
- 8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADL8120ACPZN-R7
- Pin/Package Drawing
- 8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADL8120ACPZN-R7-CSL
- Pin/Package Drawing
- 8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADL8120
Evaluating the ADL8120 30 kHz to 20 GHz, Ultra-Wideband, Low Noise Amplifier
Product Detail

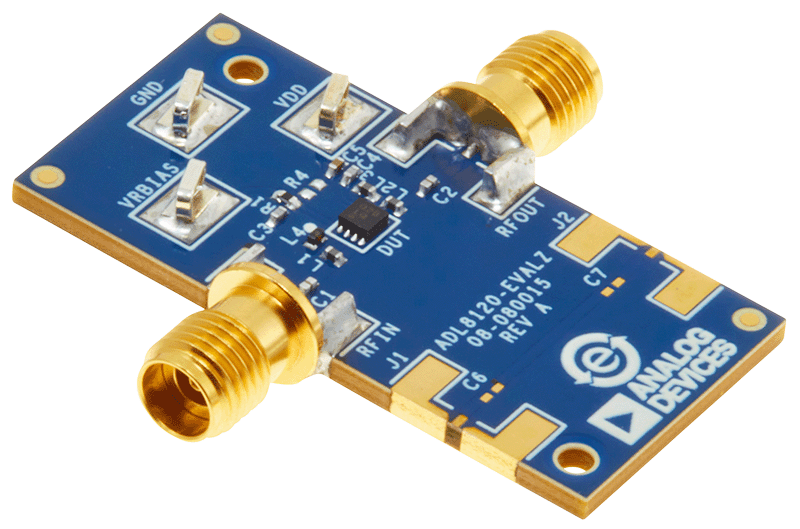

The ADL8120-EVALZ and ADL8120-EVAL1Z are 4-layer printed circuit boards (PCBs) fabricated from 0.254 mm (10 mil) thick, Isola 370HR, copper clad, forming a nominal thickness of 1.58 mm (62 mils). The ADL8120-EVALZ is designed to operate from 10 MHz to 20 GHz, whereas the ADL8120-EVAL1Z extends the frequency range down to 30 kHz and still supports operation up to 20 GHz. The RFIN and RFOUT ports on the ADL8120-EVALZ and ADL8120-EVAL1Z are populated with 2.9 mm, female coaxial connectors. The ADL8120-EVALZ and ADL8120-EVAL1Z are populated with components suitable for use over the entire −55°C to +125°C operating temperature range.
To calibrate out board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Figure 11 and Table 1 for the through calibration path performance for both the ADL8120ACPZN-EVALZ and ADL8120ACPZN-EVAL1Z.
To calibrate out board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Figure 11 and Table 1 for the through calibration path performance for both the ADL8120-EVALZ and ADL8120-EVAL1Z.
Access the ADL8120-EVALZ and ADL8120-EVAL1Z ground and drain voltage through the surface-mount technology (SMT) test point connectors, GND and VDD. A supplementary test point for VRBIAS is included for simple access on the RBIAS pin (see Figure 12 and Figure 14 for the test point locations).
The RF traces on the ADL8120-EVALZ and ADL8120-EVAL1Z are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground paddle to provide adequate electrical conduction and thermal conduction.
The power supply decoupling capacitors on the ADL8120-EVALZ and ADL8120-EVAL1Z represent the configuration used to characterize and qualify the device.
For full details on the ADL8120, see the ADL8120 data sheet, which must be consulted in conjunction with this user guide when using the ADL8120-EVALZ and ADL8120-EVAL1Z.
