Features
- Small signal gain of 12.5 dB typical from 10 MHz to 500 MHz
- Broad operation from 10 MHz to 8000 MHz
- OIP3 of 34 dBm typical from 10 MHz to 500 MHz
- Internal amplifier state, output P1dB of 17 dBm typical from 5000 MHz to 8000 MHz
- Noise figure of 2.8 dB typical from 10 MHz to 500 MHz
- Low insertion loss of 2 dB typical for the internal bypass switch state from 10 MHz to 500 MHz
- Wide operating temperature range of −40°C to +85°C
- RoHS-compliant, 6 mm × 6 mm, 28-terminal LGA
- ESD rating of ±750 V (Class 1B)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

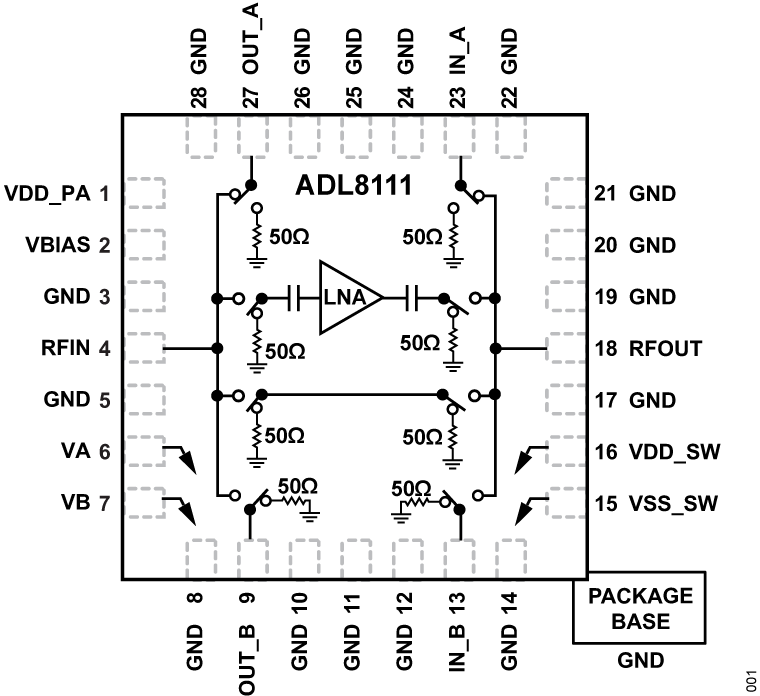

The ADL8111 is a low noise amplifier (LNA) with a nonreflective bypass switch that provides broadband operation from 10 MHz to 8000 MHz. The ADL8111 provides a low noise figure of 2.8 dB with a high output third-order intercept (OIP3) of 34 dBm simultaneously, which delivers a high dynamic range. The ADL8111 provides a gain of 12.5 dB that is stable over frequency, temperature, power supply, and from device to device.
The integration of an amplifier and two single-pole, quad-throw (SP4T) nonreflective switches allows multiple gain and linearity values. The addition of switches also offers high input intercept performance and prevents distortion on the high signal level applications.
The ADL8111 has a high electrostatic discharge (ESD) rating of ±750 V (Class 1B) and is fully specified for operation across a wide temperature range of −40°C to +85°C. The ADL8111 is offered in a 6 mm × 6 mm, 28-terminal land grid array (LGA) package.
Applications
- Military
- Test instrumentation
- Communications
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL8111
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Application Note
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Application Note
3
HTML
HTML
HTML
Documentation
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL8111ACCZN |
28 ld LGA (6mm x 6mm w/4 EP)
|
|
|
| ADL8111ACCZN-R7 |
28 ld LGA (6mm x 6mm w/4 EP)
|
|
- ADL8111ACCZN
- Pin/Package Drawing
-
28 ld LGA (6mm x 6mm w/4 EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL8111ACCZN-R7
- Pin/Package Drawing
-
28 ld LGA (6mm x 6mm w/4 EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
ADL8111ACCZN
PRODUCTION
ADL8111ACCZN-R7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
ADL8111ACCZN
PRODUCTION
ADL8111ACCZN-R7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 2
EVAL-ADL8111

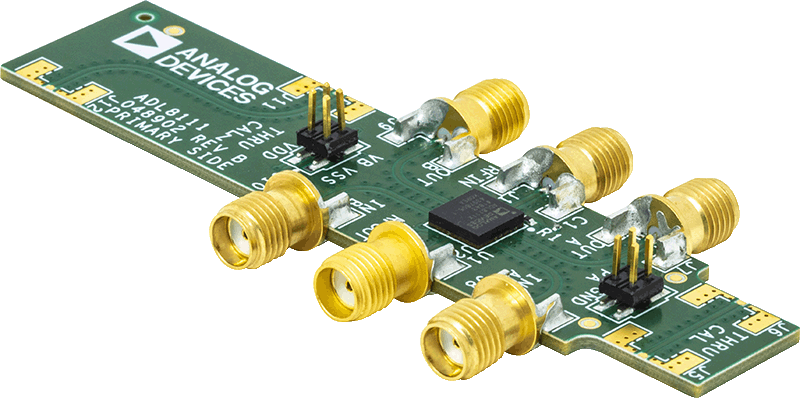

ADL8111 Evaluation Board
