ADL6346B

RECOMMENDED FOR NEW DESIGNS

40dB Gain, 1500MHz to 2700MHz Transmit Amplifier

Data Sheet (Rev. 0) Product Selection Table

Part Models: 3
1ku List Price: price unavailable

Viewing:

Overview

2-stage, high-linearity transmit amplifier for RF DACs, transceivers, and SoCs to power amplifier interfaces
Excellent gain stability and flatness over temperature
Single 5.0V supply
Power gain: 40.0dB
OIP3: 40.0dBm
OIP2: 50.0dBm

Noise figure: 4.0dB
OP1dB: 26.0dBm
ENP pin enables and disables within 50ns
100Ω and 50Ω differential inputs and 50Ω single-ended output
DC current can be adjusted by external resistors
16-lead, 3mm × 3mm LFCSP

The ADL6346B is a transmit two-stage differential amplifier that provides an interface from RF digital-to-analog converters (DACs), RF transceivers, and systems on a chip (SoC) to power amplifiers. The ADL6346B also includes an integrated impedance matching and an integrated RF balun so that it can be configured as a differential input, single-ended output to allow high-performance RF capabilities in desired frequency ranges.

To optimize performance vs. power level, the ADL6346B includes the ability to adjust the DC operating and linearization currents using external resistors.

The ADL6346B is manufactured on an advanced silicon germanium (SiGe), bipolar complementary metal-oxide semiconductor (BiCMOS) process.

Part Models: 3
1ku List Price: price unavailable

Documentation

Data Sheet 1

ADL6346B: 40dB Gain, 1500MHz to 2700MHz Transmit Amplifier Data Sheet (Rev.0) 04/20/2026

User Guide 1

EVAL-ADL6346B User Guide: Evaluating the ADL6346B, 40dB Gain, 1500MHz to 2700MHz Transmit Amplifier (Rev.0) 04/20/2026

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADL6346ACRZB	16-Lead LFCSP_RT (3 mm x 3 mm Body and 0.65 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADL6346ACRZB-R7	16-Lead LFCSP_RT (3 mm x 3 mm Body and 0.65 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADL6346ACRZB-RL	16-Lead LFCSP_RT (3 mm x 3 mm Body and 0.65 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

S-Parameter 1

ADL6346B - S-Parameter

Evaluation Kits

Evaluating the ADL6346B, 40dB Gain, 1500MHz to 2700MHz Transmit Amplifier

Buy Now View Details

Features and Benefits

Full featured evaluation board for the ADL6346-EVALZB
Single-supply operation

Product Details

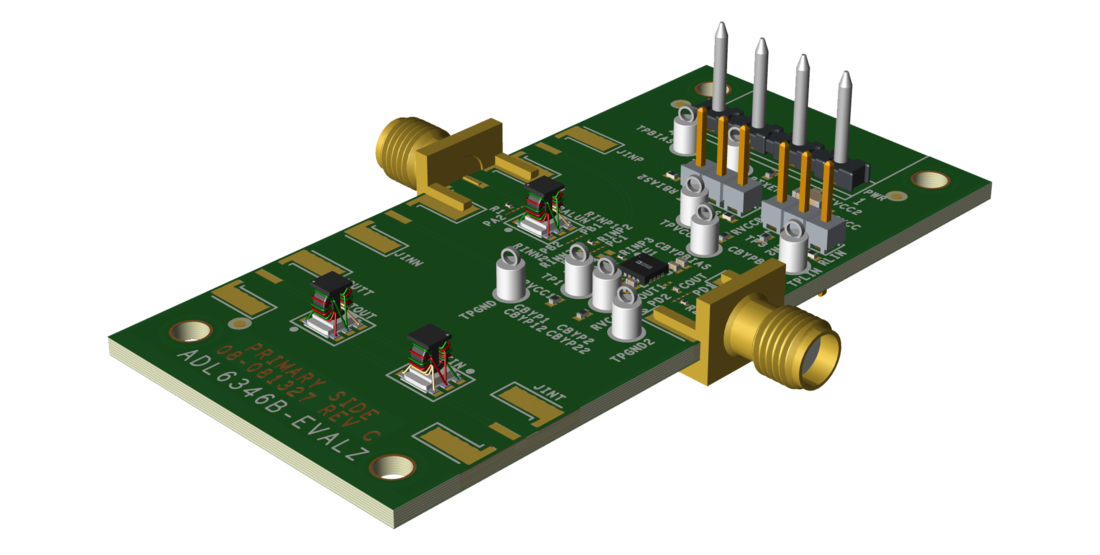

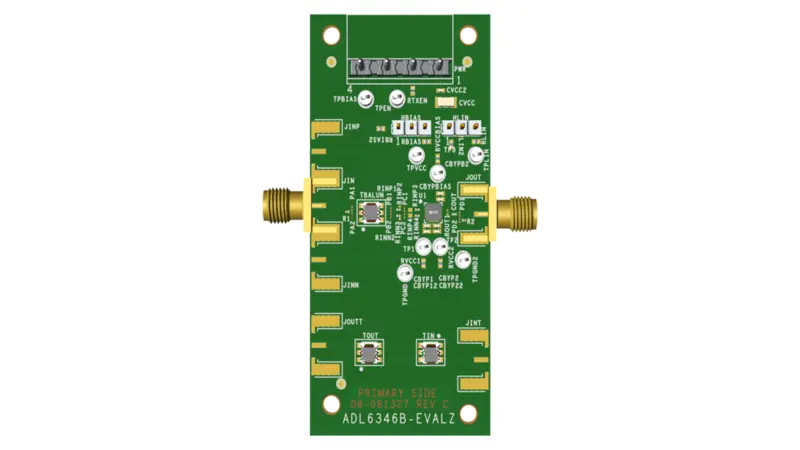

The ADL6346-EVALZB is designed to evaluate the features and performance of the ADL6346B, 40.0dB gain transmit amplifier, which has a frequency range of 1500MHz to 2700MHz.

Additional information on the ADL6346B is provided in the ADL6346B data sheet. Consult the data sheet in conjunction with this user guide when using the ADL6346-EVALZB evaluation board.

Resources

EVAL-ADL6346B User Guide: Evaluating the ADL6346B, 40dB Gain, 1500MHz to 2700MHz Transmit Amplifier (Rev.0)
4/20/2026

Latest Discussions

No discussions on ADL6346B yet. Have something to say?

Start a Discussion on EngineerZone®
