ADL6331

RECOMMENDED FOR NEW DESIGNS

0.38 GHz to 15 GHz TxVGA

Data Sheet (Rev. B) Product Selection Table

Part Models: 4
1ku List Price: Starting From $54.90

Viewing:

Overview

Broadband TxVGA interfacing RF-DAC to beamformer and PA
Operating frequency range: 0.38 GHz to 15 GHz, 2 product variants

ADL6331-A: 0.38 GHz to 8.0 GHz
ADL6331-B: 1.0 GHz to 15.0 GHz

Optimizes common-mode rejection of RF-DAC, even-order harmonics, and intermodulation
50 Ω differential inputs and 50 Ω single-ended outputs
Integrated broadband RF output balun
70 dB of gain control range in 1 dB step
RF DSA range: 24.0 dB with 1.0 dB step
Amplifier bypass loss of 12 dB each
Asynchronous toggle between multiple pre-defined attenuation values and bypass amplifier stages.

Power gain at 4 GHz: 15.5 dB (ADL6331-A), 15.8 dB (ADL6331-B)
Noise figure at 4 GHz: 7.5 dB (ADL6331-A), 8.1 dB (ADL6331-B)
OIP3 at 4 GHz: 32.8 dBm (ADL6331-A), 31.8 dBm (ADL6331-B)
OIP2 at 4 GHz: 59.7 dBm (ADL6331-A), 56.2 dBm (ADL6331-B)
OP1dB at 4 GHz: 12.2 dBm (ADL6331-A), 12.3 dBm (ADL6331-B)
Fully programmable through a 3- or 4-wire SPI
Single 3.3 V supply
24-terminal, 4.0 mm × 4.0 mm land grid array (LGA)

Part Models: 4
1ku List Price: Starting From $54.90

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADL6331ACCZA	24-Terminal LGA (4 mm x 4mm x 0.76 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADL6331ACCZA-R7	24-Terminal LGA (4 mm x 4mm x 0.76 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADL6331ACCZB	24-Terminal LGA (4 mm x 4mm x 0.76 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADL6331ACCZB-R7	24-Terminal LGA (4 mm x 4mm x 0.76 mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
LDO Linear Regulators 1
LTM4709	RECOMMENDED FOR NEW DESIGNS	Triple 3A, Ultralow Noise, High PSRR, Ultrafast μModule Linear Regulator with Configurable Output Array

Tools & Simulations

S-Parameter 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluating the ADL6331, 0.38 GHz to 15 GHz Transmitter VGA

Buy Now View Details

Features and Benefits

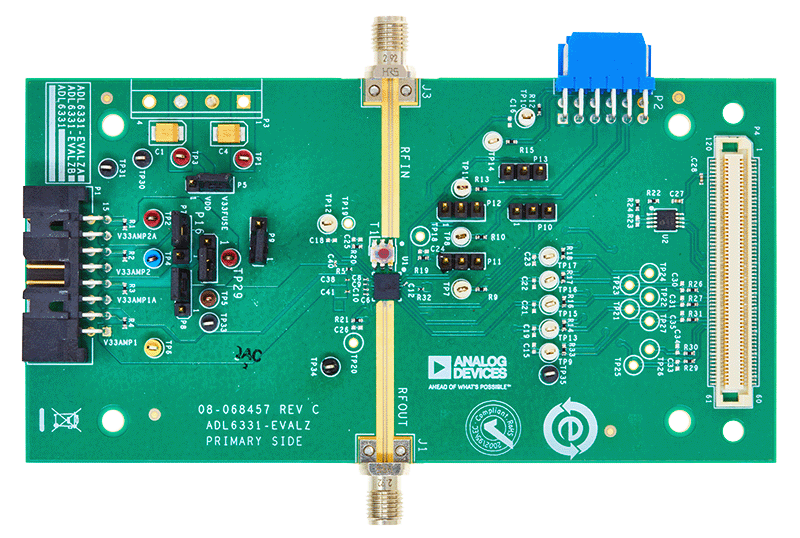

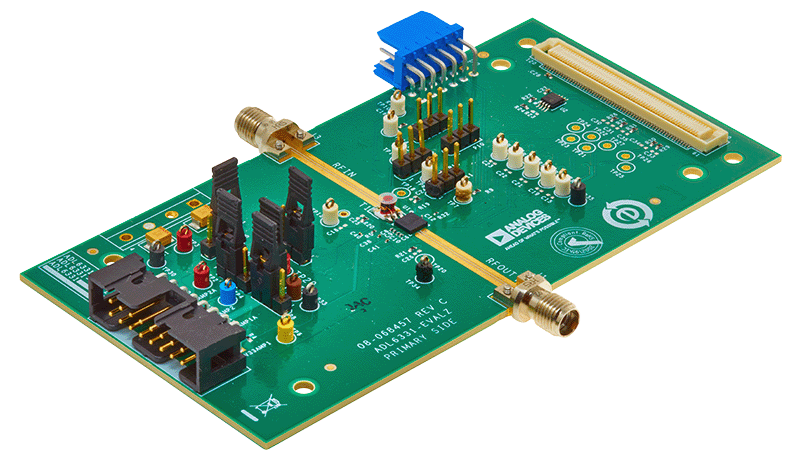

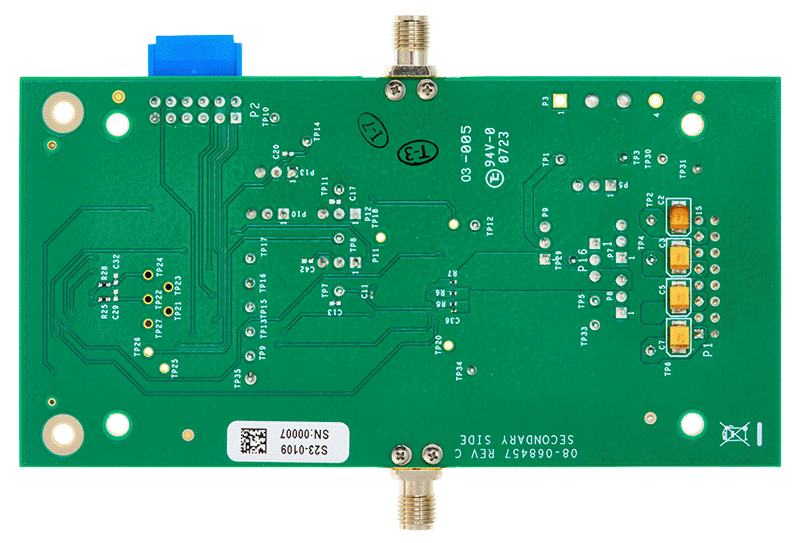

Full featured evaluation board for the ADL6331-EVALZA
Single-supply operation
Easy to use interface with Analysis | Control | Evaluation (ACE) software

Product Details

The ADL6331-EVALZA evaluation board allows the manual control of the ADL6331 through the USB port on a Microsoft^® Windows^® PC via an SDP-S interface board.

Additional information on the ADL6331 is provided in the ADL6331 data sheet. Consult the data sheet in conjunction with this user guide when using the ADL6331-EVALZA evaluation board.

Resources

UG-2198: Evaluating the ADL6331, 0.38 GHz to 15 GHz Transmitter VGA (Rev.B)
8/9/2024
