Overview

Features and Benefits

  • Frequency range: 21.2 GHz to 23.6 GHz
  • Typical gain of >22.5 dB
  • Low noise input
    • Noise figure
      • 3.3 dB typical at 21.2 GHz
      • 3.4 dB typical at 23.6 GHz
  • High linearity input
    • ≥1.0 dBm typical input third-order intercept (IIP3)
    • −8 dBm input 1 dB compression point (P1dB) at 23.6 GHz
  • Matched 50 Ω single-ended input
  • Matched 100 Ω differential outputs

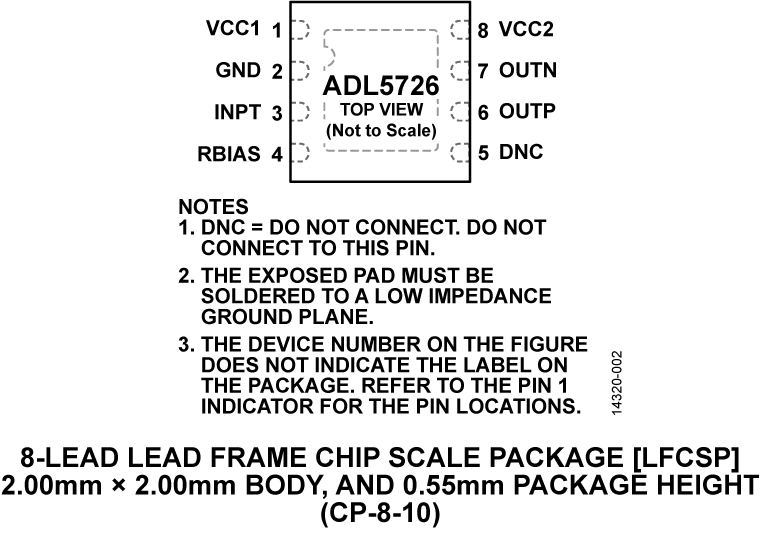

  • 8-lead, 2.00 mm × 2.00 mm LFCSP microwave packaging

Product Details

The ADL5726 is a narrow-band, high performance, low noise amplifier (LNA) targeting microwave radio link receiver designs. The monolithic silicon germanium (SiGe) design is optimized for microwave radio link bands ranging from 21.2 GHz to 23.6 GHz. The unique design offers a single-ended 50 Ω input impedance and provides a 100 Ω balanced differential output that is ideal for driving Analog Devices, Inc., differential downconverters and radio frequency (RF) sampling analog-to-digital converters (ADCs). This LNA provides noise figure performance that, in the past, required more expensive three-five (III-V) compounds process technology to achieve.

The ADL5721 and ADL5723 to ADL5726 family of narrow-band LNAs are each packaged in a tiny, thermally enhanced, 2.00 mm × 2.00 mm LFCSP package. The ADL5721 and ADL5723 to ADL5726 family operates over the temperature range of −40°C to +85°C.

Applications

  • Point to point microwave radios
  • Instrumentation
  • Satellite communications (SATCOM)
  • Phased arrays

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

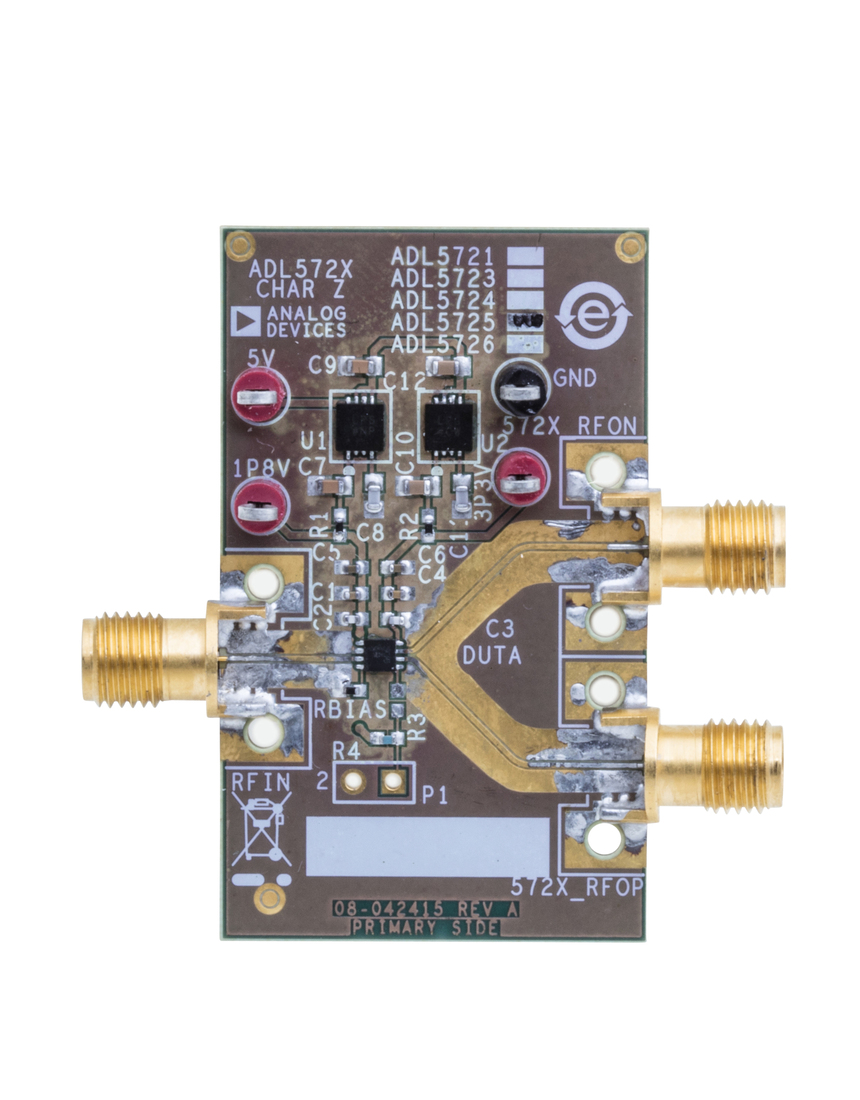

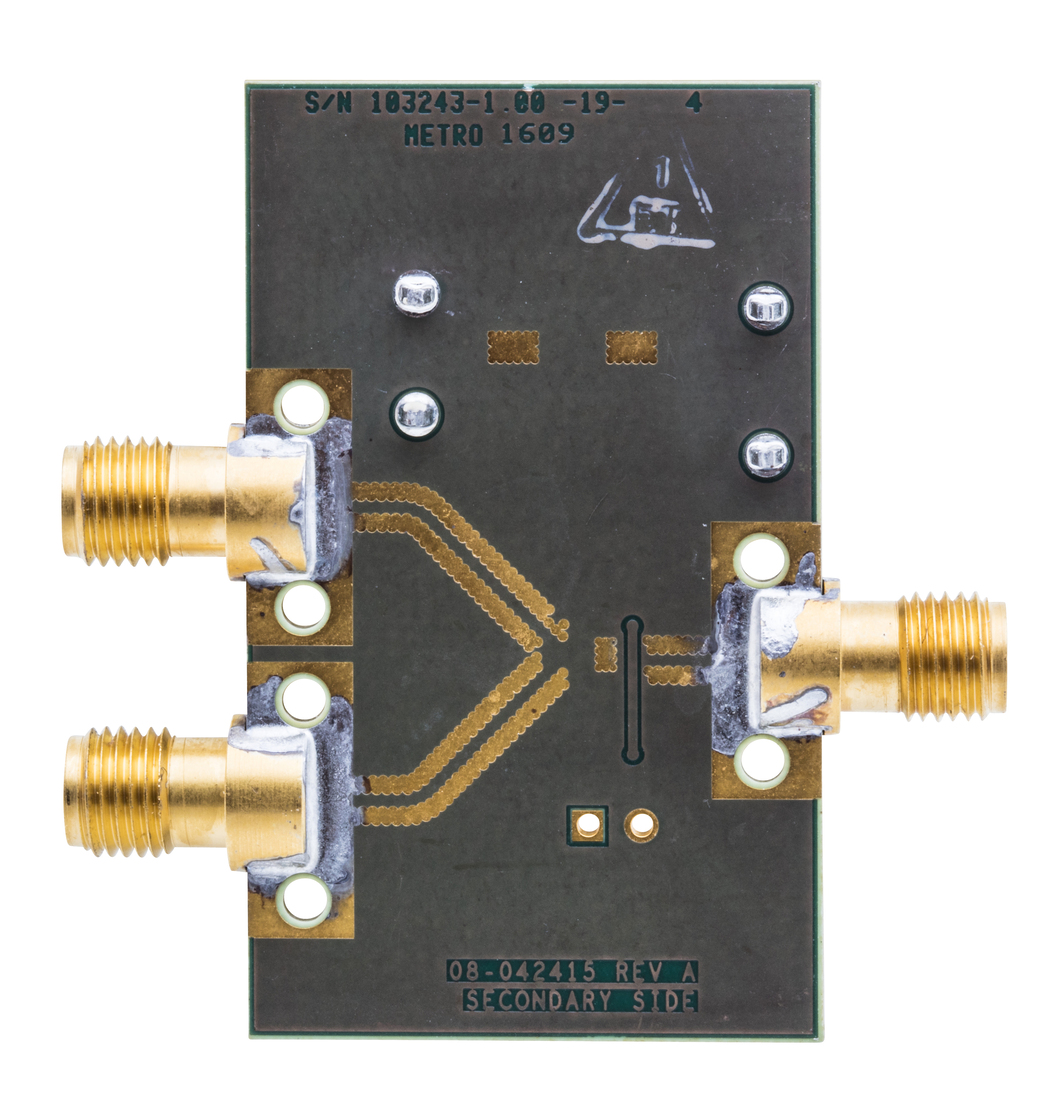

Evaluation Kits (1)

Tools & Simulations

Sys-Parameters

Sys-Parameter Models for Keysight Genesys

Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.

S-Parameters

Design Tools

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
ADL5726ACPZN-R7 Material Declaration Reliability Data 8-Lead LFCSP (2mm x 2mm w/ EP)
