ADL5724: 12.7 GHz to 15.4 GHz, Low Noise Amplifier Data Sheet (Rev. 0)5/3/2016318 K
Features and Benefits
- Frequency range: 12.7 GHz to 15.4 GHz
- Typical gain of >23.7 dB
- Low noise input
- Noise figure
- 2.1 dB typical at 12.7 GHz
- 2.4 dB typical at 15.4 GHz
- Noise figure
- High linearity input
- ≥2.0 dBm typical input third-order intercept (IIP3)
- −8 dBm input 1 dB compression point (P1dB) at 15.4 GHz
- Matched 50 Ω single-ended input
- Matched 100 Ω differential outputs

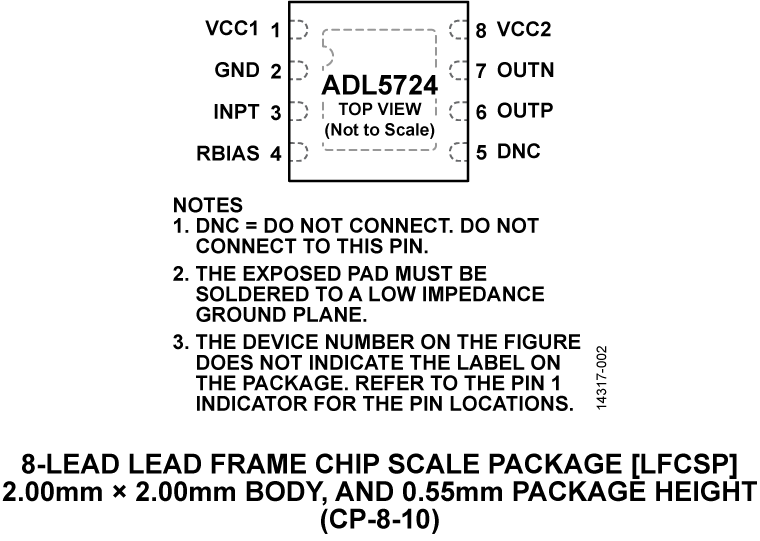

- 8-lead, 2.00 mm × 2.00 mm LFCSP microwave packaging

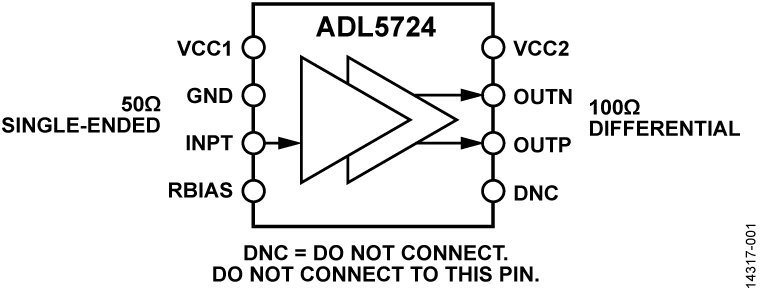

The ADL5724 is a narrow-band, high performance, low noise amplifier (LNA) targeting microwave radio link receiver designs. The monolithic silicon germanium (SiGe) design is optimized for microwave radio link bands ranging from 12.7 GHz to 15.4 GHz. The unique design offers a single-ended 50 Ω input impedance and provides a 100 Ω balanced differential output that is ideal for driving Analog Devices, Inc., differential downconverters and radio frequency (RF) sampling analog-to-digital converters (ADCs). This LNA provides noise figure performance that, in the past, required more expensive three-five (III-V) compounds process technology to achieve.
The ADL5721 and ADL5723 to ADL5726 family of narrow-band LNAs are each packaged in a tiny, thermally enhanced, 2.00 mm × 2.00 mm LFCSP package. The ADL5721 and ADL5723 to ADL5726 family operates over the temperature range of −40°C to +85°C.
- Point to point microwave radios
- Satellite communications (SATCOM)
- Phased arrays
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
This page contains ordering information for evaluating the ADL5724.
Documentation & Resources
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/20189M
Tools & Simulations
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADL5724ACPZN-R7||Material Declaration||Reliability Data||8-Lead LFCSP (2mm x 2mm w/ EP)|
