Features and Benefits
- Frequency range: 10.1 GHz to 11.7 GHz
- Typical gain of >24 dB
- Low noise input
- Noise figure
- 2.2 dB typical at 10.1 GHz
- 2.3 dB typical at 11.7 GHz
- Noise figure
- High linearity input
- ≥2.2 dBm typical input third-order intercept (IIP3)
- −10 dBm typical input 1 dB compression point (P1dB)
- Matched 50 Ω single-ended input
- Matched 100 Ω differential outputs
- 8-lead, 2.00 mm × 2.00 mm LFCSP microwave packaging
The ADL5723 is a narrow-band, high performance, low noise amplifier (LNA) targeting microwave radio link receiver designs. The monolithic silicon germanium (SiGe) design is optimized for microwave radio link bands ranging from 10.1 GHz to 11.7 GHz. The unique design offers a single-ended 50 Ω input impedance and provides a 100 Ω balanced differential output that is ideal for driving Analog Devices, Inc., differential downconverters and radio frequency (RF) sampling analog-to-digital converters (ADCs). This LNA provides noise figure performance that, in the past, required more expensive three-five (III-V) compounds process technology to achieve.
The ADL5721 and ADL5723 to ADL5726 family of narrow-band LNAs are each packaged in a tiny, thermally enhanced, 2.00 mm ×2.00 mm LFCSP package. The ADL5721 and ADL5723 to ADL5726 family operates over the temperature range of −40°C to +85°C.
- Point to point microwave radios
- Satellite communications (SATCOM)
- Phased arrays
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

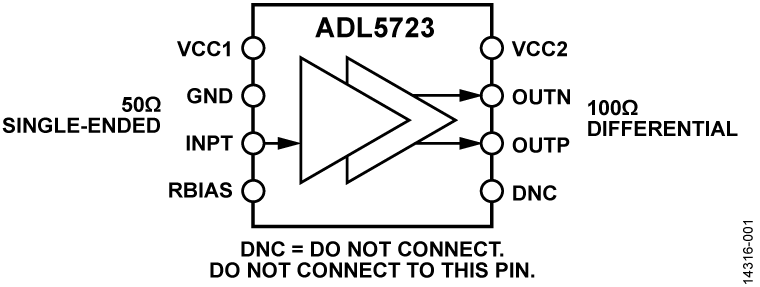

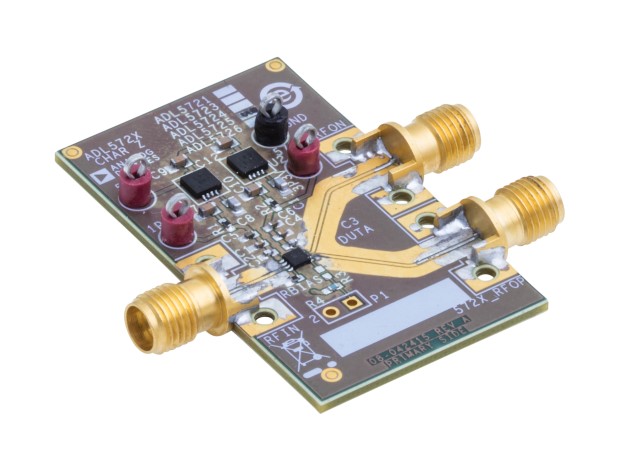

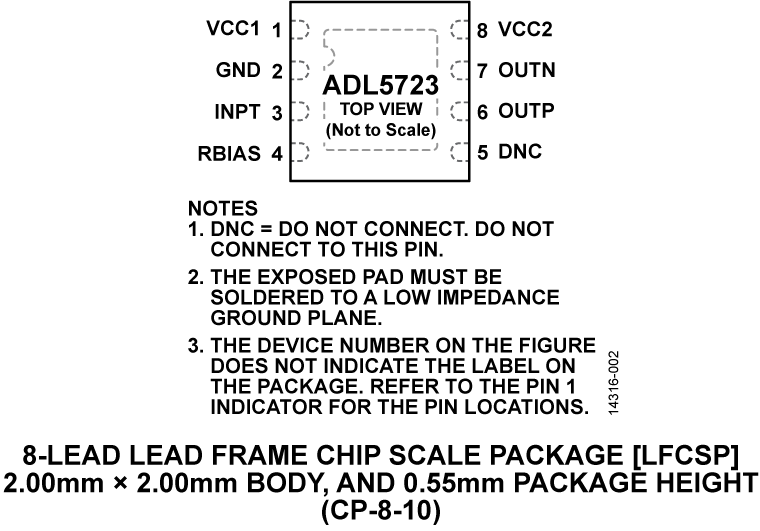

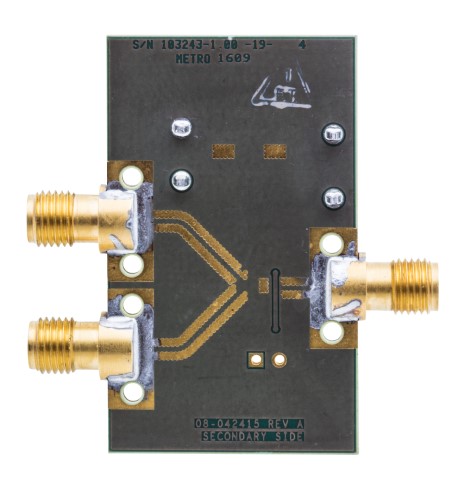

Evaluation Kits (1)
