Features
- Fixed gain of 22.2 dB
- Broad operation from 30 MHz to 6 GHz
- High dynamic range gain block
- Input and output internally matched to 50 Ω
- Integrated bias control circuit
- OIP3 of 40.0 dBm at 900 MHz
- P1dB of 21.0 dBm at 900 MHz
- Noise figure of 2.1 dB at 900 MHz
- Single 5 V power supply
- Low quiescent current of 94 mA
- Wide operating temperature range of −40°C to +105°C
- Thermally efficient SOT-89 package
- ESD rating of ±1.5 kV (Class 1C)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

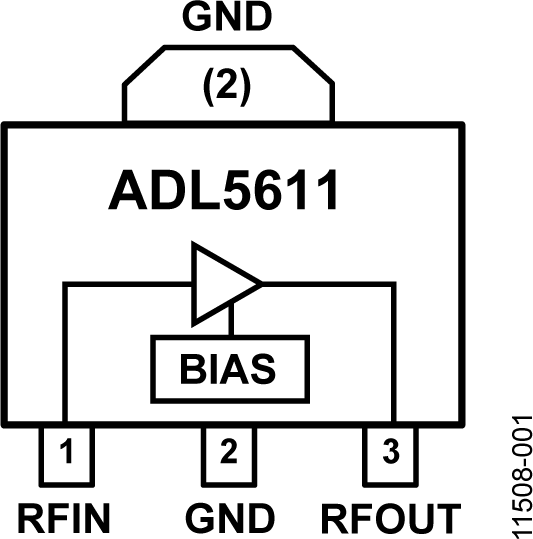

The ADL5611 is a single-ended RF/IF gain block amplifier that provides broadband operation from 30 MHz to 6 GHz. The ADL5611 provides a low noise figure of 2.1 dB with a very high OIP3 of 40.0 dBm simultaneously, which delivers a high dynamic range.
The ADL5611 provides a gain of 22.2 dB that is stable over frequency, temperature, and power supply, and from device to device. The amplifier is offered in the industry-standard SOT-89 package and is internally matched to 50 Ω at the input and output, making the ADL5611 easy to implement in a wide variety of applications. The only external parts required are the input and output ac coupling capacitors, power supply decoupling capacitors, and bias inductor.
The ADL5611 has a high ESD rating of ±1.5 kV (Class 1C) and is fully specified for operation across a wide temperature range of −40°C to +105°C.
A fully populated RoHS-compliant evaluation board is available.
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL5611
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Evaluation Design File
-
Application Note
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Evaluation Design File
1
zip
230 kB
Application Note
3
HTML
HTML
HTML
Documentation
Data Sheet 1
Application Note 1
Evaluation Design File 1
Product Selection Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL5611ARKZ-R7 |

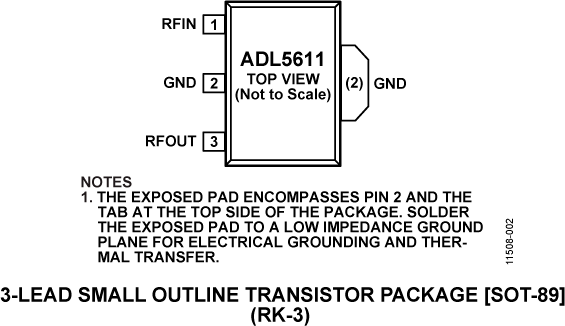

3-Lead SOT-89
|
|
- ADL5611ARKZ-R7
- Pin/Package Drawing
-
3-Lead SOT-89
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
May 28, 2017
- 17_0096
ADL5610 and ADL5611 Die Revision
ADL5611ARKZ-R7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
May 28, 2017
- 17_0096
ADL5610 and ADL5611 Die Revision
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Integer-N PLL2 |
||||
|
PRODUCTION |
Wideband Synthesizer with Integrated VCO |
|||
|
RECOMMENDED FOR NEW DESIGNS |
Wideband Synthesizer with Integrated VCO |
|||
|
Single, Double, and Triple Balanced Mixers2 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer |
|||
|
RECOMMENDED FOR NEW DESIGNS |
High IP3, 10 MHz TO 6 GHz, Active Mixer |
|||
Evaluation Kits 1
EVAL-ADL5611
ADL5611 Evaluation Board
Product Detail
ADL5611-EVALZ is a fully populated, 4-layer, FR4-based evaluation board. For normal operation it requires a single 5 V/200 mA power supply. The 5 V power supply should be connected to the test loops labeled VCC and GND. The RF input is applied to the SMA connector labeled RFIN. The RF output is available at the SMA connector labeled RFOUT.
Resources
Evaluation Kits1
Tools & Simulations 3
S-Parameter 1
S-Parameter
ADIsimRF
Sys-Parameter
