ADL5545: 30 MHz to 6 GHz RF/IF Gain Block Data Sheet (Rev. B)4/26/2013PDF406 kB
Overview
Features and Benefits
- Fixed gain of 24.1 dB
- Broadband operation from 30 MHz to 6 GHz
- Input/output internally matched to 50 Ω
- Integrated bias control circuit
- OIP3 of 36.4 dBm at 900 MHz
- P1dB of 18.1 dBm at 900 MHz
- Noise figure of 2.9 dB at 900 MHz
- Single 5 V power supply
- Low quiescent current of 56 mA
- Wide operating temperature range of −40°C to +105°C

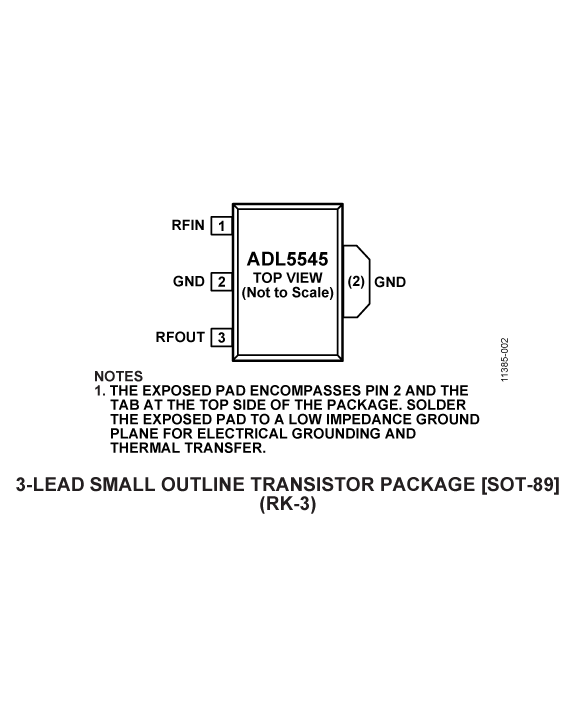

- Thermally efficient SOT-89 package
- ESD rating of ±1.5 kV (Class 1C)
Product Details

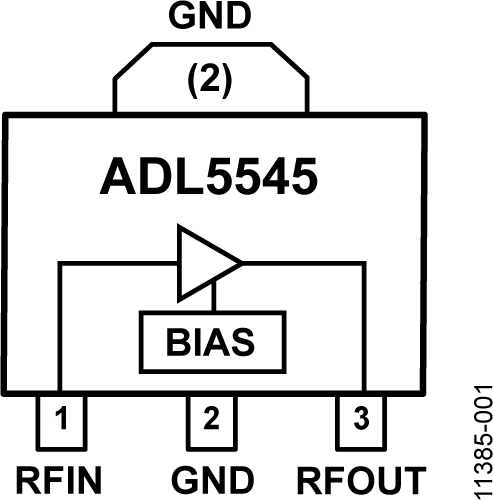

The ADL5545 is a single-ended RF/IF gain block amplifier that provides broadband operation from 30 MHz to 6 GHz. The ADL5545 provides over 36 dBm of OIP3 using only 56 mA from a 5 V supply.
The ADL5545 provides a gain of 24 dB, which is stable over frequency, temperature, power supply, and from device to device. The amplifier is offered in the industry-standard SOT-89 package and is internally matched to 50 Ω at the input and output, making the ADL5545 very easy to implement in a wide variety of applications. The only external components required are the input/output ac coupling capacitors, power supply decoupling capacitors, and dc bias inductor.
The ADL5545 is fabricated on an InGaP HBT process and has a high ESD rating of ±1.5 kV (Class 1C). The ADL5545 is also fully specified for operation across the wide temperature range of −40°C to +105°C. A fully populated RoHS-compliant evaluation board is available.
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/2018PDF9M
Tools & Simulations
Sys-Parameters
Sys-Parameter Models for Keysight Genesys
Sys-Parameter models contain behavioral parameters, such as P1dB, IP3, gain, noise figure and return loss, which describe nonlinear and linear characteristics of a device.
S-Parameters
ZIP
ADL5545 S-Parameters
28 kB
Design Tools
ADIsimRF
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
