Features and Benefits

  • Voltage-controlled amplifier/attenuator
  • Operating frequency: 1 MHz to 1.2 GHz
  • Optimized for controlling output power
  • High linearity: OIP3 47 dBm @ 100 MHz
  • Output noise floor: −149 dBm/Hz @ maximum gain
  • Input impedance: 50 Ω
  • Output impedance: 20 Ω
  • Wide gain-control range: 30 dB
  • Linear-in-dB gain control function: 40 mV/dB
  • Single-supply voltage: 4.75 V to 5.25 V

Product Details

The ADL5331 is a high performance, voltage-controlled variable gain amplifier/attenuator for use in applications with frequencies up to 1.2 GHz. The balanced structure of the signal path maximizes signal swing, eliminates common-mode noise and minimizes distortion while it also reduces the risk of spurious feed-forward at low gains and high frequencies caused by parasitic coupling.

The 50 Ω differential input system converts the applied differential voltage at INHI and INLO to a pair of differential currents with high linearity and good common-mode rejection. The signal currents are then applied to a proprietary voltage- controlled attenuator providing precise definition of the overall gain under the control of the linear-in-dB interface. The GAIN pin accepts a voltage from 0 V at a minimum gain to 1.4 V at a full gain with a 40 mV/dB scaling factor over most of the range.

The output of the high accuracy wideband attenuator is applied to a differential transimpedance output stage. The output stage provides a differential output at OPHI and OPLO, which must be pulled up to the supply with RF chokes or a center-tapped balun.

The ADL5331 consumes 240 mA of current including the output pins and operates off a single supply ranging from 4.75 V to 5.25 V. A power-down function is provided by applying a logic low input on the ENBL pin. The current consumption in power-down mode is 250 μA.

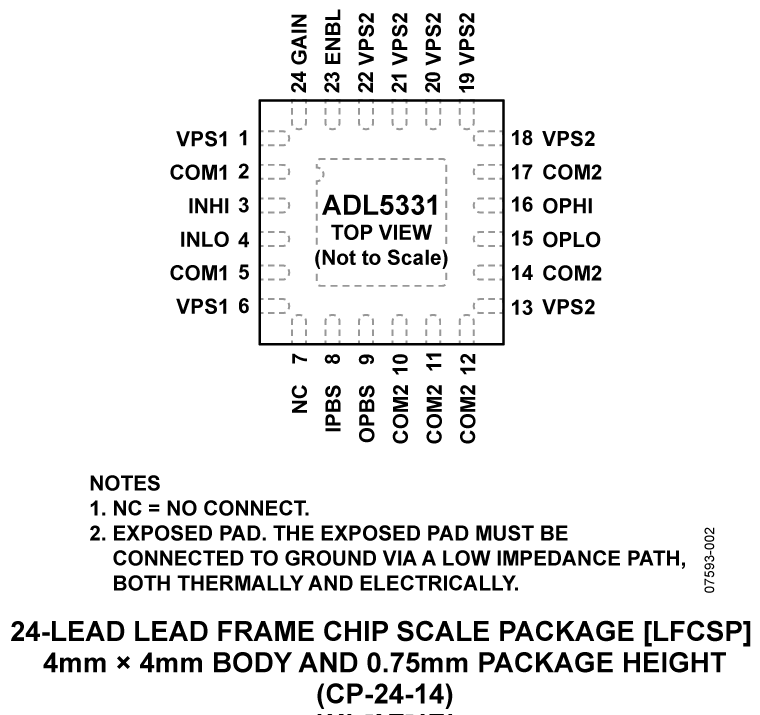

The ADL5331 is fabricated on an Analog Devices, Inc., proprietary high performance, complementary bipolar IC process. The ADL5331 is available in a 24-lead (4 mm × 4 mm), Pb-free LFCSP package and is specified for operation from ambient temperatures of −40°C to +85°C. An evaluation board is also available.


  • Transmit and receive power control at RF and IF
  • CATV distribution

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
