Suggested Replacement Parts :
Product Lifecycle Obsolete
The models in this product family are no longer available.
To find replacement products for this part:
AvailabilityThis model is Obsolete and all models in the family are Obsolete
Evaluation Kits (2)

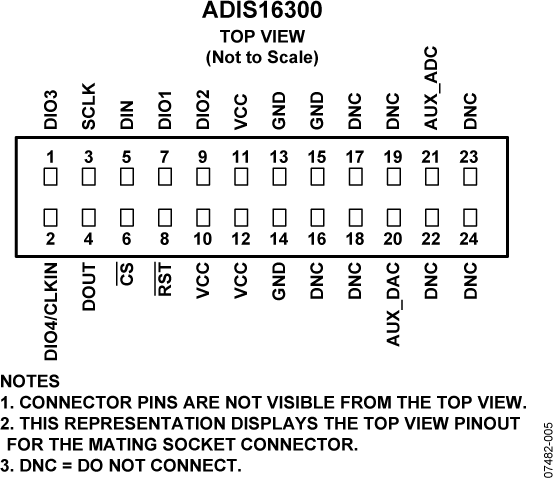

The ADIS16300/PCB is a breakout board which provides (1) ADIS16305BMLZ, (1) flexible cable and (1) interface PCB to simplify the process of prototyping during the early stages of system design and evaluation. The ADIS16300BMLZ is a fully-calibrated, MEMS 4DOF Inertial Sensor, which provides a serial peripheral interface (SPI) for all digital communications. It provides a dual-row, 24-pin connector interface that minimizes board space but does not support standard ribbon cable connections. The flexible cable and interface PCB provides access to the ADIS16300BMLZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.
The EVAL-ADIS system provides a simple, PC-based tool, for evaluating iSensor products, for those who are not ready to integrate them into embedded processor systems. This system supports application software that enable basic demonstration, individual register access and high-speed data capture for each supported device. Each application software package comes with an installation wizard, which facilitates simple installation and also includes a simple USB-driver package that is easy to use. All software packages associated with the EVAL-ADIS are compatible with Windows XP, Vista and 7 and provides both 32-bit and 64-bit USB drivers. The EVAL-ADIS circuit board is 0.125” thick, which enables pre-drilled, pre-tapped mounting holes for each iSensor device. The mounting holes accommodate M2x0.4mm machine screws. This kit also includes 5 sets of M2x0.4 machines screws, which provide for the various package thickness and eliminate the need to procure additional hardware. The integrated power system eliminates the need for external power supplies in most cases, but does provide for an external power supply input, for supply-sensitivity testing. The power system uses the USB’s +5V and provides a linear regulator option for +3.3V devices.
Features & BenefitsPC/USB-Compatible Evaluation for Gyroscopes & IMU
- Windows XP, Vista, & 7
- 32- and 64-bit USB drivers
- No external supply required
IMU Evaluation Software
- Full-rate, synchronous data acquisition (Data Capture)
- Register configuration & review (Register Access)
- Real-time waveform recorder (Main Screen)
- ADIS16xxx to USB Interface Board
- 6-ft Mini-USB Cable
- M2x0.4 machine screw kit (20pcs)
Software & Systems Requirements
