Features
- Low RON: 0.5 Ω
- High continuous current of up to 847 mA
- Flat RON across signal range: 0.003 Ω
- THD of −109 dB at 1 kHz
- Improved balance between on resistance and on capacitance
- Low RON (0.5 Ω) and CON (95 pF)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADG6436 is an analog multiplexer containing two independently selectable single-pole, double throw (SPDT) switches. An EN input is used to disable all of the switches. For use in multiplexer applications, both switches exhibit break-before-make switching action.
Each channel conducts equally well in both directions when on, and each switch has an input signal range that extends from VSS to VDD − 2 V. When switches are disabled, the signal levels up to the supplies are blocked.
The digital inputs are compatible with 5 V, 3.3 V, and 1.8 V logic inputs without the requirement for a separate digital logic supply pin.
The on-resistance profile is exceptionally flat over the full analog input range, which ensures good linearity and low distortion when switching audio signals.
APPLICATIONS
- Automatic test equipment
- Data acquisition
- Instrumentation
- Avionics
- Audio and video switching
- Communication systems
- Relay replacement
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADG6436
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
Data Sheet
1
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADG6436BCPZ-REEL7 | LFCSP:LEADFRM CHIP SCALE |
|
- ADG6436BCPZ-REEL7
- Pin/Package Drawing
- LFCSP:LEADFRM CHIP SCALE
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
LCD/CCD/OLED Bias1 |
||||
|
PRODUCTION |
Dual Micropower DC/DC Converters with Schottky Diodes |
|||
|
Negative Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
–28 V, −200 mA, Low Noise, Linear Regulator |
|||
|
Positive Linear Regulators (LDO)1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
40 V, 200 mA, Low Noise, CMOS LDO Linear Regulator |
|||
Evaluation Kits 1
EVAL-ADG6436
Evaluating the ADG6436, 0.5 Ω On Resistance, ±20 V, +36 V, Dual SPDT Switch
Features and Benefits
- Low RON: 0.5 Ω
- High continuous current of up to 847 mA
- Flat RON across signal range: 0.003 Ω
- Improved balance between on resistance and on capacitance
- 1.8 V logic compatibility
- 16-lead, 4 mm × 4 mm LFCSP
- Pin to pin compatible with the ADG5436 and ADG5436F
- Fully specified at ±20 V and +36 V
- Operational with asymmetric power supplies
- VSS to VDD − 2 V analog signal range
Product Detail
The EVAL-ADG6436EBZ is the evaluation board for the ADG6436. The ADG6436 is an analog multiplexer, containing two independently selectable single-pole, double throw (SPDT) switches. An EN input is used to disable all of the switches. For use in multiplexer applications, both switches exhibit break-before-make switching action. Each channel conducts equally well in both directions when on, and each switch has an input signal range that extends from VSS to VDD − 2 V. When switches are disabled, signal levels up to the supplies are blocked. The digital inputs are compatible with 5 V, 3.3 V, and 1.8 V logic inputs without the requirement for a separate digital logic supply pin. The on-resistance profile is exceptionally flat over the full analog input range, which ensures good linearity and low distortion when switching audio signals.

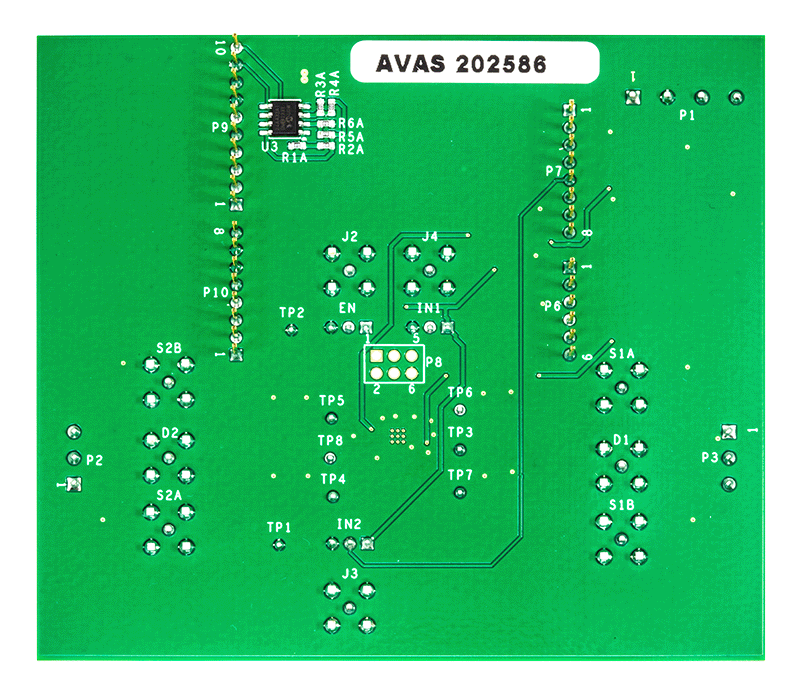

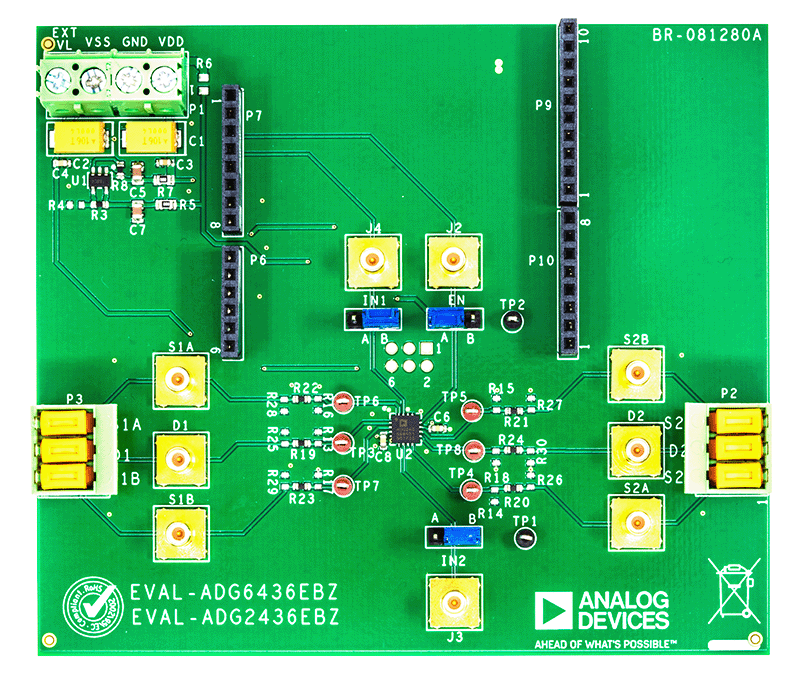

Figure 1 shows the EVAL-ADG6436EBZ evaluation board. The ADG6436 is located in the center of the evaluation board, and wire screw terminals are provided to connect to each of the source and drain pins. Three screw terminals power the device, and a fourth terminal provides users with a defined digital logic supply voltage, if required. Alternatively, the digital logic supply voltage can be supplied from the ADP7142 that is on the board.
