Features and Benefits
- Measures active and reactive energy, sampled waveforms, current and voltage rms
- 6 current input channels and 1 voltage channel
- <0.1% error in active and reactive energy over a dynamic range of 1000:1
- Supports current transformer and Rogowski coil sensors
- Provides instantaneous current and voltage readings
- Angle measurements on all 6 channels
- 2 kHz bandwidth operation
- Reference: 1.2 V (drift 10 ppm/°C typical) with external overdrive capability
- Flexible I2C, SPI, and HSDC serial interfaces
The ADE7816 is a highly accurate, multichannel metering device that is capable of measuring one voltage channel and up to six current channels. It measures line voltage and current and calculates active and reactive energy, as well as instantaneous rms voltage and current. The device incorporates seven sigma-delta (Σ-Δ) ADCs with a high accuracy energy measurement core. The six current input channels allow multiple loads to be measured simultaneously. The voltage channel and the six current channels each have a complete signal path allowing for a full range of measurements. Each input channel supports a flexible gain stage and is suitable for use with current transformers (CTs). Six on-chip digital integrators facilitate the use of the Rogowski coil sensors.
The ADE7816 provides access to on-chip meter registers via either the SPI or I2C interface. A dedicated high speed interface, the high speed data capture (HSDC) port, can be used in conjunction with I2C to provide access to real-time ADC output information. A full range of power quality information, such as overcurrent, overvoltage, peak, and sag detection, is accessible via the two external interrupt pins, IRQ0 and IRQ1.
The ADE7816 energy metering IC operates from a 3.3 V supply voltage and is available in a 40-lead LFCSP that is Pb free and RoHS compliant.
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

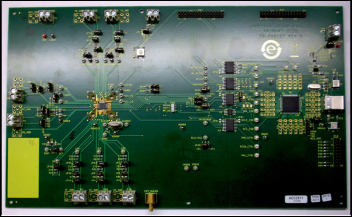

The ADE7816 evaluation kit includes an evaluation board that allows the performance of the ADE7816 six channel energy measurement IC to be evaluated. The ADE7816 evaluation kit includes evaluation software, written in LabVIEW®, that provides access to the registers of the ADE7816 using a PC interface.
Documentation & Resources
AN-1152: Calibrating a Single-Phase Energy Meter Based on the ADE7816 (Rev. 0)5/15/2012164 kB
AN-1137: ADE7816 Theory of Operation (Rev. 0)2/27/2012191 kB
AN-639: Frequently Asked Questions (FAQs) Analog Devices Energy (ADE) Products (Rev. A)8/17/2005165 kB
ADE7816 Multichannel Energy Measurement9/15/2014340 K
Tools & Simulations
ADE7816 Companion Parts
Recommended Digital Isolators
- For a dual, bi-directional, 5kV, hot swap isolator: ADuM2250.
- For a dual, bi-directional, 2.5kV, hot swap isolator: ADUM1250.
Recommended External References
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADE7816ACPZ||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|ADE7816ACPZ-RL||Material Declaration||Reliability Data||40-Lead LFCSP (6mm x 6mm w/ EP)|
|Wafer Fabrication Data|
