ADCMP356
Comparator & 0.6 V Reference in 4-SC70 w/ Push-Pull Active-High Output
Top
Overview
Features and Benefits
- Comparators with 0.6 V on-chip references
- Output stages:
- Open-drain active-low (ADCMP350)
- Open-drain active-high (ADCMP354)
- Push-pull active-high (ADCMP356)
- High voltage (up to 22 V) tolerance on VIN and open-drain output pins
- Low power consumption (10 μA)
- 10 nA input bias current
- 15 mV hysteresis
- 5 μs propagation delay
- Specified over −40°C to +125°C temperature range
- 4-lead SC70 package

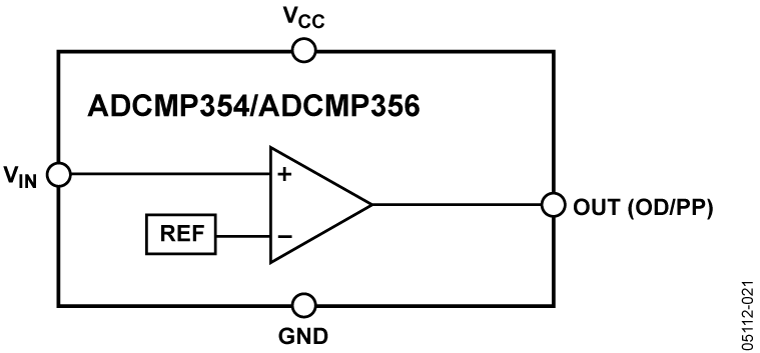

Product Details
The ADCMP350/ADCMP354/ADCMP356 parts are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltages of up to 22 V on the input of all devices and the output of the open-drain devices. High performance over the −40°C to +125°C temperature range makes them suitable for use in automotive and other thermally harsh applications, while low power consumption and space-efficient SC70 packaging make them ideal for battery-powered portable equipment.Applications
- Voltage detectors
- Microprocessor systems
- Computers
- Battery monitors
- Intelligent instruments
- Portable equipment
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
