Overview

Features and Benefits

  • 17 GHz to 22 GHz frequency range
  • Low power dissipation (<12 mW per channel)

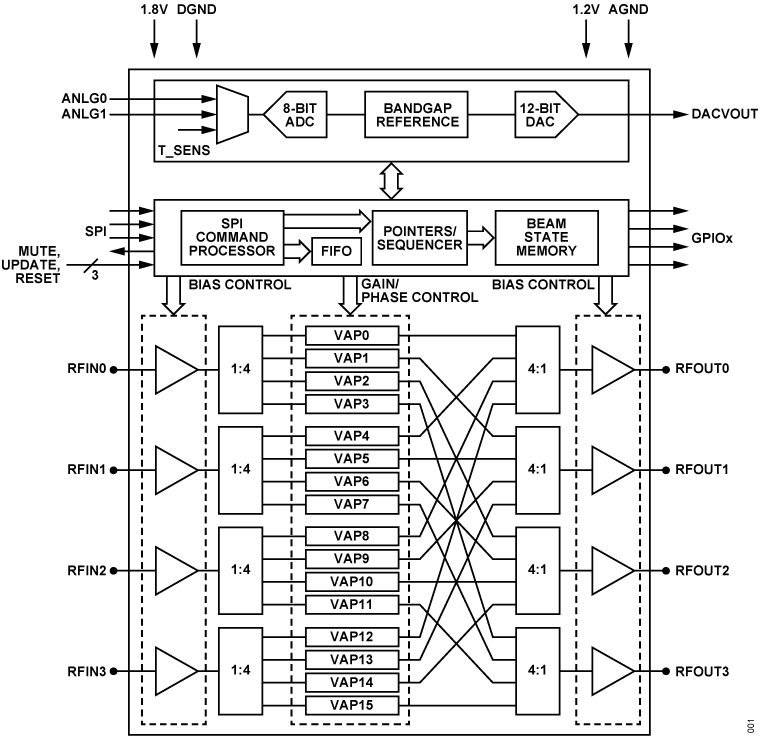

  • 4 beam/16 channel beamforming IC
  • Configurable for transmit or receive operation
  • Programmable time delay and step attenuator for beam steering
  • Internal memory for storing beam positions
  • User programmable sequencer for quick and efficient beam state selection
    • Update, reset, & mute beam commands issued via pins or SPI
    • Supports beam hopping and raster scanning
  • Integrated ADC for:
    • Temperature sensor
    • General analog inputs
  • Programmable bias modes
  • 16 chip parallel addressability over 4-wire SPI interface
  • Easy to use BGA package

For more information please contact ADI at beamformer@analog.com.

Product Lifecycle icon-recommended Pre-Release

This product is new and engineering validation may still be underway. Quantities may be limited and design specifications may change while we ready the product for release to production.
