Features and Benefits
- Extremely low harmonic distortion (HD)
- −106 dBc HD2 at 10 MHz
- −82 dBc HD2 at 50 MHz
- −109 dBc HD3 at 10 MHz
- −82 dBc HD3 at 50 MHz
- Low input voltage noise: 2.6 nV/√Hz
- High speed
- −3 dB bandwidth of 1000 MHz, G = +1
- Slew rate: 4700 V/μs
- 0.1 dB gain flatness to 150 MHz
- Fast overdrive recovery of 4 ns
- 1 mV typical offset voltage
- Externally adjustable gain
- Differential-to-differential or single-ended-to-differential operation
- Adjustable output common-mode voltage
- Wide supply voltage range: +5 V to ±5 V
- Single or dual amplifier configuration available
The ADA4938-1 / ADA4938-2 are low noise, ultralow distortion, high speed differential amplifiers. It is an ideal choice for driving high performance ADCs with resolutions up to 16 bits from dc to 27 MHz, or up to 12 bits from dc to 74 MHz. The output common-mode voltage is adjustable over a wide range, allowing the ADA4938-1/ADA4938-2 to match the input of the ADC. The internal common-mode feedback loop also provides exceptional output balance as well as suppression of even-order harmonic distortion products.
Full differential and single-ended-to-differential gain configurations are easily realized with the ADA4938-1/ADA4938-2. A simple external feedback network of four resistors determines the closed-loop gain of the amplifier.
The ADA4938-1 / ADA4938-2 are fabricated using the Analog Devices, Inc., proprietary third generation, high voltage XFCB process, enabling it to achieve very low levels of distortion with an input voltage noise of only 2.6 nV/√Hz. The low dc offset and excellent dynamic performance of the ADA4938-1/ADA4938-2 makes them well-suited for a wide variety of data acquisition and signal processing applications.
The ADA4938-1 (single amplifier) is available in a Pb-free, 3 mm × 3 mm, 16-lead LFCSP. The ADA4938-2 (dual amplifier) is available in a Pb-free, 4 mm × 4 mm, 24-lead LFCSP. The pinouts have been optimized to facilitate layout and minimize distortion. The devices are specified to operate over the extended industrial temperature range of −40°C to +85°C.
- ADC drivers
- Single-ended-to-differential converters
- IF and baseband gain blocks
- Differential buffers
- Line drivers
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

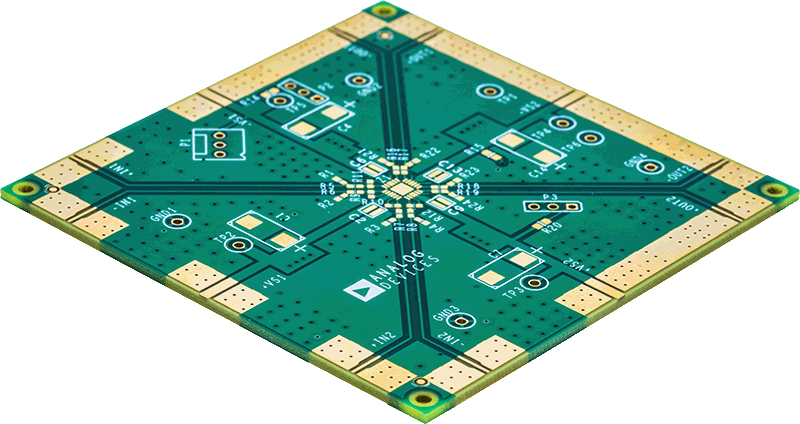

The EVAL-FDA-2CPZ-24 is designed to aid in the evaluation of dual high speed differential amplifiers. The EVAL-FDA-2CPZ-24 is a bare board (that is, there are no components soldered to the board) that enables users to quickly prototype a variety of differential amplifier circuits, which minimizes risk and reduces time to market. The EVAL-FDA-2CPZ-24 evaluation board supports any of the Analog Devices, Inc., dual high speed differential amplifiers in 4 mm × 4 mm, lead frame chip scale packages (LFCSP).
Features & Benefits
- Enables quick breadboarding/prototyping
- User-defined circuit configuration
- Edge-mounted SMA connector provisions
- Easy connection to test equipment and other circuits
- Two independent circuits enhance flexibility
Documentation & Resources
AN-282: Fundamentals of Sampled Data Systems2/14/20152131 kB
AN-0990: Terminating a Differential Amplifier in Single-Ended Input Applications (Rev. 0)2/14/2015181 kB
AN-0992: Active Filter Evaluation Board for Differential Amplifiers (Rev. 0)2/14/201585 kB
AN-589: Ways to Optimize the Performance of a Difference Amplifier (Rev. B)2/14/2015115 kB
AN-1026: High Speed Differential ADC Driver Design Considerations (Rev. A)2/14/2015355 kB
AN-584: Using the AD813X Differential Amplifier (Rev. 0)10/14/2002174 kB
MT-076: Differential Driver Analysis2/14/201595 kB
MT-075: Differential Drivers for High Speed ADCs Overview2/14/2015183 kB
MT-218: Multiple Feedback Band-Pass Design Example2/10/201290 K
"Rules of the Road" for High-Speed Differential ADC Drivers5/1/2009 Analog Dialogue
