ADA4084-4S
Aerospace Quad Low Noise, Rail-to-Rail I/O, Low Power Operational Amplifiers
Top
Overview
Features and Benefits
- Rail-to-rail input/output
- Low power: 0.675 mA typical per amplifier at ±1.5 V
- Gain bandwidth product: 15.9 MHz at AV =100 typical
- Unity-gain crossover: 9.9 MHz typical
- −3 dB closed-loop bandwidth: 13.9 MHz typical at ±15 V
- Low offset voltage: 100 μV maximum
- Unity-gain stable
- High slew rate: 4.6 V/μs typical
- Low noise: 3.9 nV/√Hz typical at 1 kHz
Product Details
The ADA4084-4S (quad) is a single-supply, 10 MHz bandwidth amplifier featuring rail-to-rail inputs and outputs. It is guaranteed to operate from +3 V to +30 V (or ±1.5 V to ±15 V).
This amplifier is well suited for single-supply applications requiring both ac and precision dc performance. The combination of wide bandwidth, low noise, and precision makes the ADA4084-4S useful in a wide variety of applications, including filters and instrumentation.
The ability to swing rail to rail at both the input and output enables designers to build multistage filters in single-supply systems and to maintain high signal-to-noise ratios.
The ADA4084 represents the latest generation of the OP484S generation amplifiers.

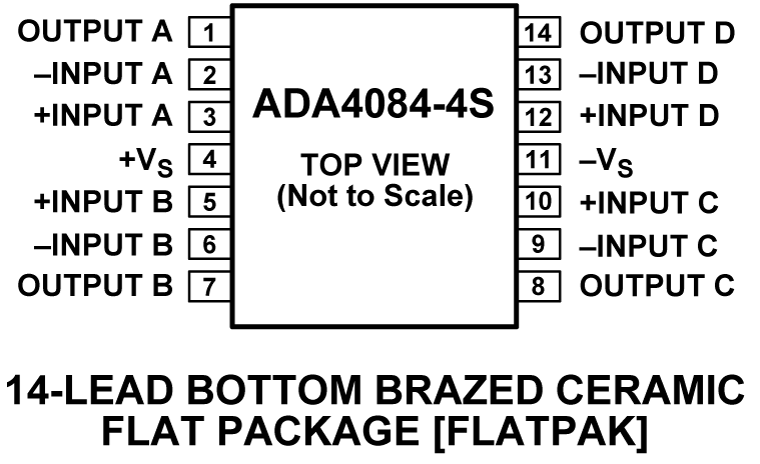

The ADA4084-4S is specified over the military temperature range of −55°C to +125°C. The quad ADA4084-4S is available in the 14-lead flat pack surface-mount package.
The ADA4084-4S is a member of a growing series of high voltage, low noise op amps offered by Analog Devices, Inc.
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| 5962L1523602VXA | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| 5962R1523601VXA | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| ADA4084-4AF-EMX | Material Declaration | Reliability Data | CER. FLATPACK WITH LEADS | |
| Wafer Fabrication Data |
