AD8671S

PRODUCTION

Aerospace Single Precision Very Low Noise, Low Input Bias Current, Operational Amplifier

Part Models: 2
1ku List Price: Starting From $184.58

Viewing:

Overview

Very low noise: 3.8 nV/√Hz
Wide Bandwidth: 10MHz
Low Input Bias Current: 12 nA
Low Offset Voltage: 75 µV

Low supply current: 3 mA typ per amplifier
Dual supply operation: ±5V to ±15V
Unity Gain Stable
No Phase Reversal

The AD8671S is a very high precision amplifier featuring very low noise, very low offset voltage and drift, low input bias current, 10 MHz bandwidth, and low power consumption. The AD8671S combination of ultralow noise, high precision, speed, and stability is unmatched. Applications for these amplifiers include high quality PLL filters, precision filters, precision power supply controls, ATE, data acquisition, and precision controls. The AD8671S is specified over the mil temperature range (−55°C to +125°C).

Part Models: 2
1ku List Price: Starting From $184.58

Documentation

Data Sheet 1

AD8671S: Military Data Sheet 02/14/2011

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

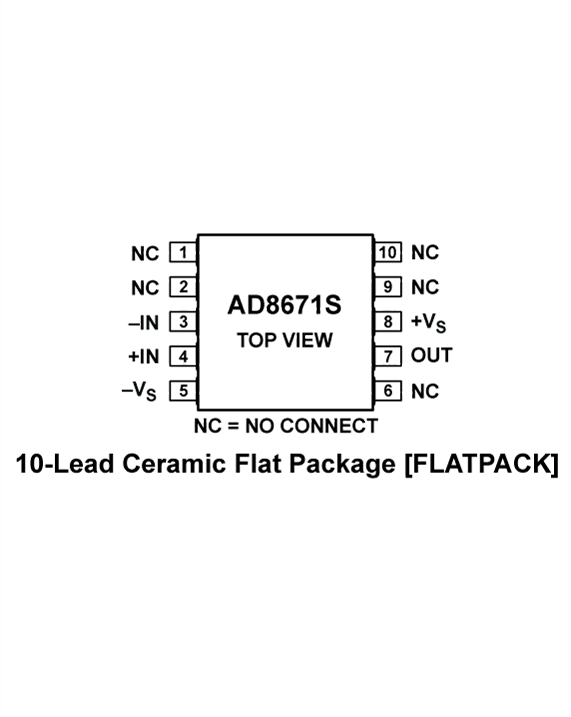

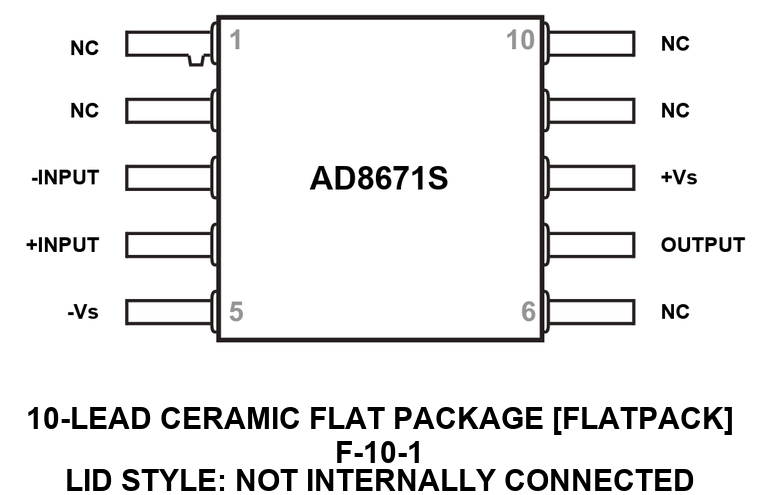

5962L0922301VHA	10-Lead FlatPack	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8671AL-EMX	10-Lead FlatPack	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 30, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
5962L0922301VHA	PRODUCTION
AD8671AL-EMX	PRODUCTION
Nov 18, 2015 - 15_0219 Laser Marking Standardization for Aerospace Packages
		PCN15_0219_Form Material_Report Qualification Results Summary
5962L0922301VHA	PRODUCTION
AD8671AL-EMX	PRODUCTION
Oct 2, 2013 - 13_0163 Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices
		PCN13_0163_Form Material_Report Qualification Plan Summary
5962L0922301VHA	PRODUCTION
AD8671AL-EMX	PRODUCTION
Nov 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.
		PCN12_0199_Form Material_Report Qualification Report Summary Datasheet Specification Comparison
5962L0922301VHA	PRODUCTION
AD8671AL-EMX	PRODUCTION
Nov 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
5962L0922301VHA	PRODUCTION
AD8671AL-EMX	PRODUCTION
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
5962L0922301VHA	PRODUCTION
AD8671AL-EMX	PRODUCTION

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

AD8671

SPICE Model 1

AD8671 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
