AD8619

PRODUCTION

Low Cost Micropower, Low Noise CMOS RRIO Quad Op Amp

Data Sheet (Rev. H) Product Selection Table

Part Models: 8
1ku List Price: Starting From $1.37

Viewing:

Overview

Offset voltage: 2.2 mV maximum
Low input bias current: 1 pA maximum
Single-supply operation: 1.8 V to 5.5 V
Low noise: 22 nV/√Hz
Micropower: 50 μA/amplifier maximum over temperature
No phase reversal
Unity gain stable
Qualified for automotive applications

Newer Alternatives:

ADA4505-4 with lower power consumption.

The AD8613 / AD8617 / AD8619 are single, dual, and quad micropower, rail-to-rail input and output amplifiers that feature low supply current, as well as low input voltage and current noise. The parts are fully specified to operate from 1.8 V to 5 V single supply, or ±0.9 V and ±2.5 V dual supply. The combination of low noise, very low input bias currents, and low power consumption make the AD8613 / AD8617 / AD8619 especially useful in portable and loop-powered instrumentation.

The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems.

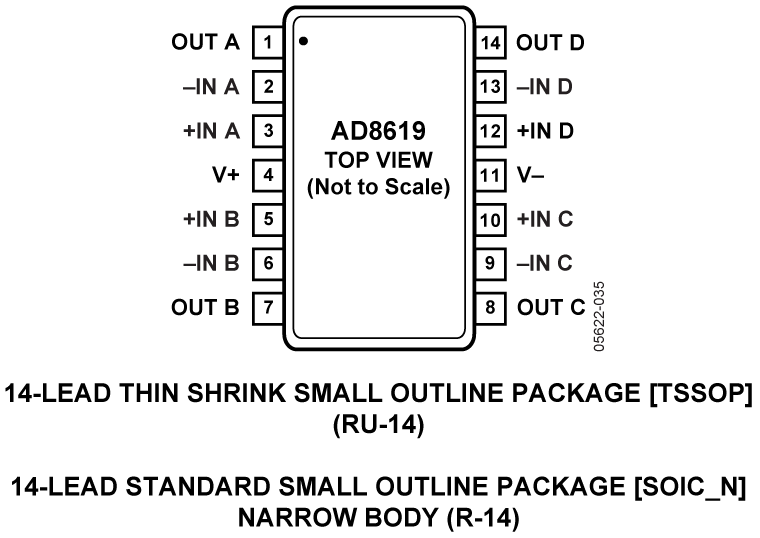

The AD8613 is available in a 5-lead SC70 package and a 5-lead TSOT-23 package. The AD8617 is available in 8-lead MSOP, 8-lead SOIC, and 8-lead LFCSP packages. The AD8619 is available in 14-lead TSSOP and 14-lead SOIC packages. The AD8617W is qualified for automotive applications and is available in 8-lead MSOP and 8-lead SOIC packages. The AD8619W is qualified for automotive applications and is available in 14-lead SOIC and 14-lead TSSOP packages.

Applications

Battery-powered instrumentation
Multipole filters
Current shunt sense
Sensors
ADC predrivers
DAC drivers/level shifters
Low power ASIC input or output amplifiers

Part Models: 8
1ku List Price: Starting From $1.37

Documentation

Data Sheet 1

AD8613/AD8617/AD8619: Low Cost Micropower, Low Noise CMOS Rail-to-Rail, Input/Output Operational Amplifiers Data Sheet (Rev.H) 02/01/2006

Technical Articles 1

Micropower ICs Take the Heartburn Out of Heart Rate Monitor Designs 03/01/2012

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8619ARUZ	14-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619ARUZ-REEL	14-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619ARZ	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619ARZ-REEL7	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619WARUZ-R7	14-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619WARUZ-RL	14-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619WARZ-R7	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8619WARZ-RL	14-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 5, 2021 - 21_0035 Amkor Philippines as an Alternate Site for TSSOP_4.4
		PCN21_0035_Form Material_Report Qualification Results Summary Other
AD8619ARUZ	PRODUCTION
AD8619ARUZ-REEL	PRODUCTION
Jan 20, 2012 - 11_0218 Halogen Free Material Change for Certain TSSOP Products at Carsem
		PCN11_0218_Form Material_Report Qualification Report Summary
AD8619ARUZ	PRODUCTION
AD8619ARUZ-REEL	PRODUCTION
Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
AD8619ARUZ	PRODUCTION
AD8619ARUZ-REEL	PRODUCTION
AD8619ARZ	PRODUCTION
AD8619ARZ-REEL7	PRODUCTION
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD8619ARUZ	PRODUCTION
AD8619ARUZ-REEL	PRODUCTION
AD8619ARZ	PRODUCTION
AD8619ARZ-REEL7	PRODUCTION
Nov 23, 2010 - 10_0004 Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor
		PCN10_0004_Form Material_Report ADI0012 Reliability Report
AD8619ARZ	PRODUCTION
AD8619ARZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

AD8619

Analog Photodiode Wizard

Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

Open Tool

Signal Chain Designer

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

SPICE Model 1

AD8619 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

EVAL-OPAMP-4 Evaluation Board

Buy Now View Details

Product Details

The Universal Precision Op Amp Evaluation Boards has been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs Compliant. See references below on what board to order by lead count and package.

EVAL-PRAOPAMP-4RUZ (Quad 14-Lead TSSOP) RU-14
EVAL-PRAOPAMP-4RZ (Quad 14-Lead SOIC) R-14
