Overview

Features and Benefits

  • Integrated constant current and voltage modes with automatic switchover
  • Charge and discharge modes
  • Precision voltage and current measurement
  • Integrated precision control feedback blocks
  • Precision interface to PWM or linear power converters
  • Fixed gain settings
    Current sense gain: 26 V/V (typ)
    Voltage sense gain: 0.8 V/V (typ)
  • Excellent ac and dc performance
  • Maximum offset voltage drift:
    0.9 μV/°C
  • Maximum gain drift: 3 ppm/°C
  • Low current sense amplifier input voltage noise: >9 nV/√Hz typ
  • Current sense CMRR:
    108 dB minimum
  • TTL compliant logic

Product Details

The AD8451 is a precision analog front end and controller for testing and monitoring battery cells. A precision fixed gain instrumentation amplifier (IA) measures the battery charge/discharge current, and a fixed gain difference amplifier (DA) measures the battery voltage. Internal laser trimmed resistor networks set the gains for the IA and the DA, optimizing the performance of the AD8451 over the rated temperature range. The IA gain is 26 and the DA gain is 0.8.

Voltages at the ISET and VSET inputs set the desired constant current (CC) and constant voltage (CV) values. CC to CV switching is automatic and transparent to the system.

A TTL logic level input, MODE, selects the charge or discharge mode (high for charge, low for discharge). An analog output, VCTRL, interfaces directly with the Analog Devices, Inc., ADP1972 PWM controller.

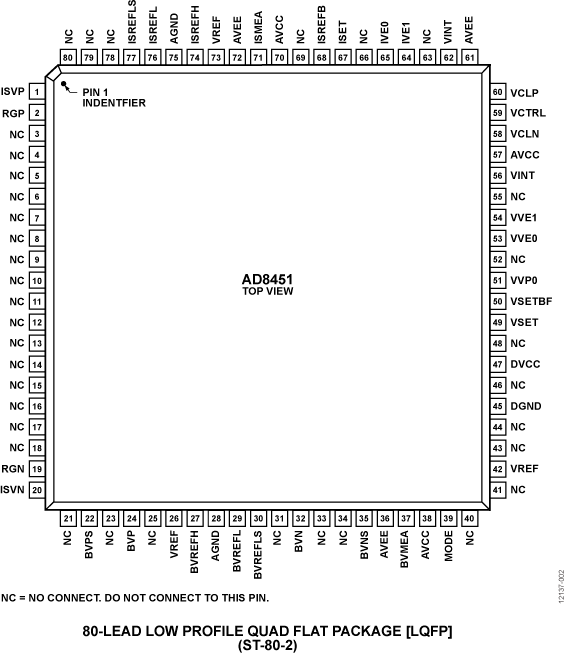

The AD8451 simplifies designs by providing excellent accuracy, performance over temperature, flexibility with functionality, and overall reliability in a space-saving package. The AD8451 is available in an 80-lead, 14 mm × 14 mm × 1 mm LQFP package and is rated for an operating temperature of −40°C to +85°C.

APPLICATIONS

  • Battery cell formation and testing
  • Battery module testing

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

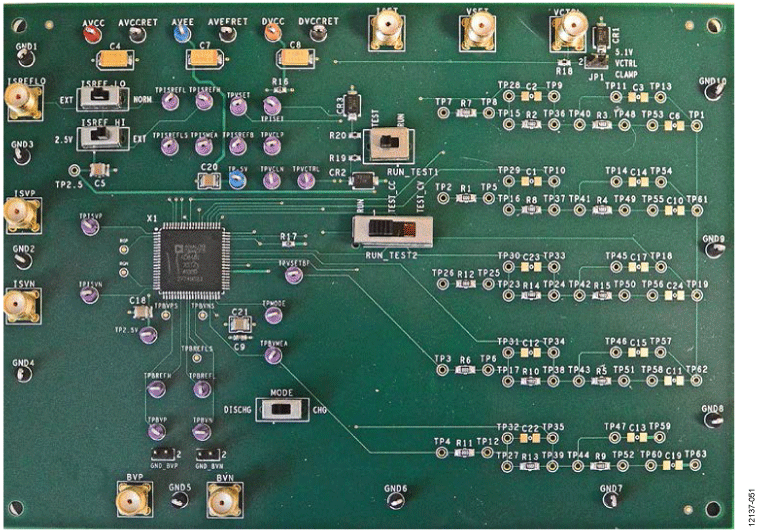

Evaluation Kits (1)

Tools & Simulations

SPICE Models

Design Tools

ADIsimPE Linear and Mixed-Signal Circuit Simulator – Personal Edition

ADIsimPE, which is powered by SIMetrix/SIMPLIS, is a circuit simulation suite optimized for the design and development of analog and mixed signal circuits. SIMetrix mode is ideal for the simulation of general non-switching circuits. It provides full Pspice compatibility for use with industry-standard SPICE models. SIMPLIS (SIMulation Piecewise-Linear System) mode simulates the operation of switching circuits with vastly improved robustness, speed, and accuracy compared to standard SPICE. It is particularly useful for switching power supply, PLLs, and ADC/DAC applications.

Product Recommendations

AD8451 Companion Parts

Recommended Battery Testing and Formation

  • For battery testing and formation application: ADP1972.
