AD826

Low Cost, High Speed, Low Power Dual Operational Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
SPICE Model AD826 SPICE Macro Model Rev. A, 11/92 Download 2.62 K SPICE Model AD826A SPICE Macro Model Rev. A, 11/92 Download 2.78 K
Part Models 4
1ku List Price Starting From $3.61
Features
  • High Speed:
    50 MHz Unity Gain Bandwidth
    350 V/µs Slew Rate
    70 ns Settling Time to 0.01%
  • Easy to Use:
    Drives Unlimited Capacitive Loads
    50 mA Min Output Current Per Amplifier
    Specified for +5 V, ±5 V and ±15 V Operation
    2.0 V p-p Output Swing into a
    150 Ω Load (Vs = +5 V)
  • Low Power:
    7.5 mA Max Power Supply
    Current Per Amp
  • Good Video Performance
    Differential Gain & Phase
    Error of 0.07% & 0.11°
  • Excellent DC Performance:
    2.0 mV Max Input Offset Voltage
Additional Details
show more Icon
The AD826 is a dual, high speed voltage feedback op amp. It is ideal for use in applications which require unity gain stability and high output drive capability, such as buffering and cable driving. The 50 MHz bandwidth and 350 V/µs slew rate make the AD826 useful in many high speed applications including: video, CATV, copiers, LCDs, image scanners and fax machines.

The AD826 features high output current drive capability of 50 mA min per amp, and is able to drive unlimited capacitive loads. With a low power supply current of 15 mA max for both amplifiers, the AD826 is a true general purpose operational amplifier.

The AD826 is ideal for power sensitive applications such as video cameras and portable instrumentation. The AD826 can operate from a single +5V supply, while still achieving 25 MHz of bandwidth. Furthermore the AD826 is fully specified from a single +5V to ±15V power supplies.

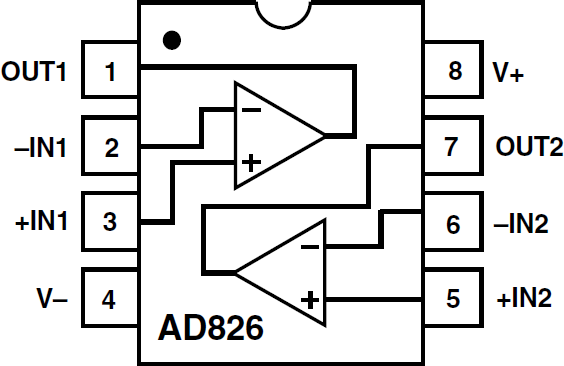

The AD826 excels as an ADC/DAC buffer or active filter in data acquisition systems and achieves a settling time of 70 ns to 0.01%, with a low input offset voltage of 2mV max. The AD826 is available in small 8-pin plastic mini-DIP and SO packages.

Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
SPICE Model AD826 SPICE Macro Model Rev. A, 11/92 Download 2.62 K SPICE Model AD826A SPICE Macro Model Rev. A, 11/92 Download 2.78 K
Part Models 4
1ku List Price Starting From $3.61
