Features
- High speed
140 MHz bandwidth (3 dB, G = +1)
120 MHz bandwidth (3 dB, G = +2)
35 MHz bandwidth (0.1 dB, G = + 2)
2500 V/µs slew rate
25 ns settling time to 0.1% (for a 2 V step)
65 ns settling time to 0.01% (for a 10 V step) - Excellent dc precision
3 mV max input offfset voltage - Low distortion: THD = -74 dB @ 10 MHz
- Excellent video performance (RL = 150 Ω)
0.01% differential gain, 0.01° differential phase
Voltage noise of 1.9 nV/√Hz - Flexible Operation
Specified for ±5 V and ±15 V operation
±2.3 V output swing into a 75 Ω Load
(VS = ±5 V)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
A wideband current feedback operational amplifier, the AD811 is optimized for broadcast-quality video systems. The -3 dB bandwidth of 120 MHz at a gain of +2 and differential gain and phase of 0.01% and 0.01° (RL = 150 W) make the AD811 an excellent choice for all video systems. The AD811 is designed to meet a stringent 0.1 dB gain flatness specification to a bandwidth of 35 MHz (G = +2) in addition to the low differential gain and phase errors. This performance is achieved whether driving one or two back terminated 75 W cables, with a low power supply current of 16.5 mA. Furthermore, the AD811 is specified over a power supply range of ±4.5 V to ±18 V.
The AD811 is also excellent for pulsed applications where transient response is crititcal. It can achieve a maximum slew rate of greater than 2500 V/µs with a settling time of less than 25 ns to 0.1% on a 2 V step and 65 ns to 0.01% on a 10 V step.
The AD811 is ideal as an ADC or DAC buffer in data acquisition systems due to its low distortion up to 10 MHz and its wide unity gain bandwidth. Because the AD811 is a current feedback amplifier, this bandwidth can be maintained over a wide range of gains. The AD811 also offers low voltage and current noise of 1.9nV/√Hz and 20 pA/√Hz, respectively, and excellent dc accuracy for wide dynamic range applications.
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD811
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
User Guide
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
2
Application Note
7
541 kB
HTML
HTML
HTML
User Guide
2
Documentation
Tutorial 3
Analog Dialogue 1
Webcast 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| 5962-9313101M2A | 20 ld LCC |
|
|
| 5962-9313101MPA |
8-Lead CerDIP
|
|
|
| AD811ACHIPS | none available |
|
|

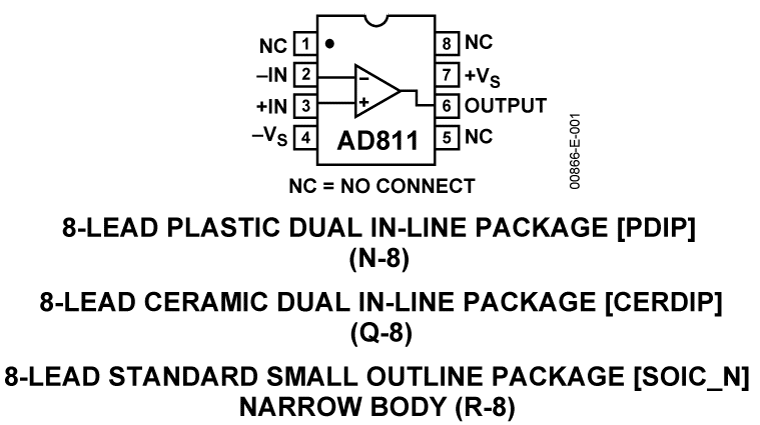

| AD811ANZ |
8-Lead PDIP
|
|
|

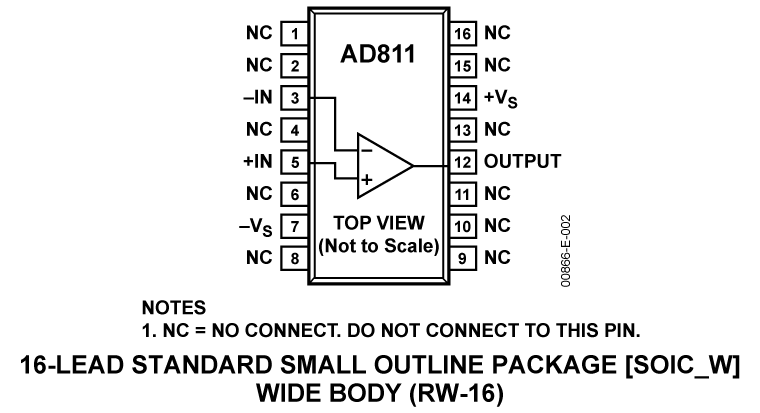

| AD811ARZ-16 |
16-Lead SOIC Wide
|
|
|
| AD811ARZ-16-REEL |
16-Lead SOIC Wide
|
|
|
| AD811ARZ-16-REEL7 |
16-Lead SOIC Wide
|
|
|
| AD811JRZ |
8-Lead SOIC
|
|
|
| AD811JRZ-REEL7 |
8-Lead SOIC
|
|
|
| AD811SCHIPS | none available |
|
|

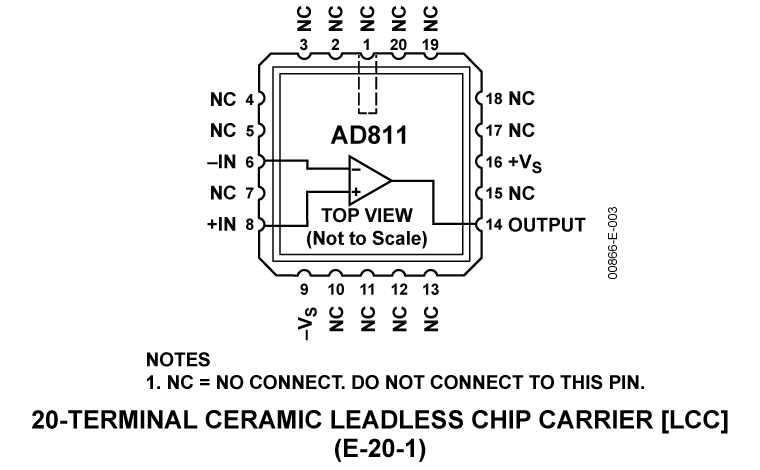

| AD811SE/883B |
20-Lead LCC
|
|
|
| AD811SQ/883B |
8-Lead CerDIP
|
|
- 5962-9313101M2A
- Pin/Package Drawing
- 20 ld LCC
- Documentation
-
