AD810

PRODUCTION

Low Power Video Op Amp with Disable

Data Sheet (Rev. B) Product Selection Table

Part Models: 8
1ku List Price: Starting From $3.72

Viewing:

Part Details

High speed
- 80 MHz typical −3 dB bandwidth (G = +1)
- 75 MHz typical −3 dB bandwidth (G = +2)
- 1000 V/µs typical slew rate
- 50 ns typical settling time to 0.1% (V_OUT = 10 V step)
Ideal for video applications
- 30 MHz typical 0.1 dB bandwidth (G = +2, V_S = ±15 V)
- 0.02% typical differential gain (V_S = ±15 V)
- 0.04° typical differential phase (V_S = ±15 V)
Low noise
- 2.9 nV/√Hz typical input voltage noise
- 13 pA/√Hz typical inverting input current noise
Low power
- 8.0 mA maximum supply current (quiescent)
- 2.1 mA typical supply current (power-down mode)

High performance disable function
- Turn off time: 100 ns typical
- Break before make guaranteed
- Input to output isolation of 64 dB (off state)
Flexible operation
Specified for ±5 V and ±15 V operation
±2.9 V typical output swing into a 150 Ω load (V_S = ±5 V)
Download AD810-EP data sheet (pdf)
Military temperature range: −55°C to +105°C
Controlled manufacturing baseline
1 assembly/test site
1 fabrication site
Product change notification
Qualification data available on request
V62/19601-01XE DSCC Drawing Number

Part Models: 8
1ku List Price: Starting From $3.72

Documentation

Data Sheet 3

AD810: Low Power Video Op Amp with Disable Data Sheet (Rev.B) 02/24/2010

AD810-EP: Low Power Video Op Amp with Disable (Rev.0) 05/28/2019

AD810: Military Data Sheet 01/01/2000

User Guide 1

UG-135: Evaluation Board for Single, High Speed Operational Amplifiers (8-Lead SOIC and Exposed Paddle) 04/22/2010

Frequently Asked Question 1

FAQ 12/07/2014

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

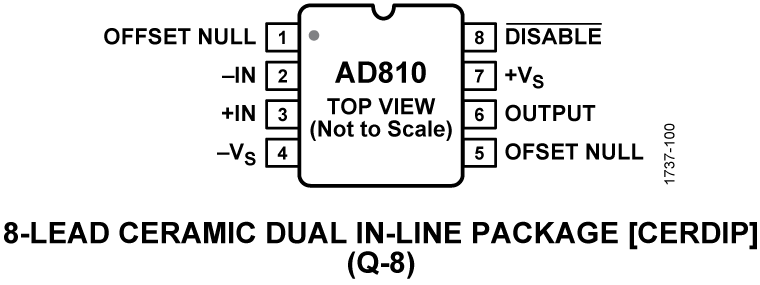

5962-9313201MPA	8-Lead CerDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD810ACHIPS	none available	Material Declaration Reliablity Data	Ultra Librarian SamacSys

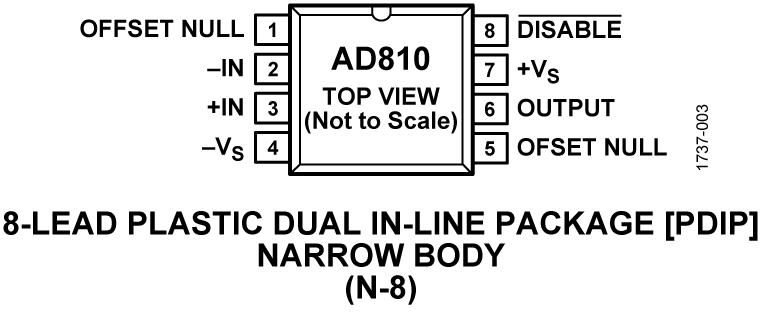

AD810ANZ	8-Lead PDIP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

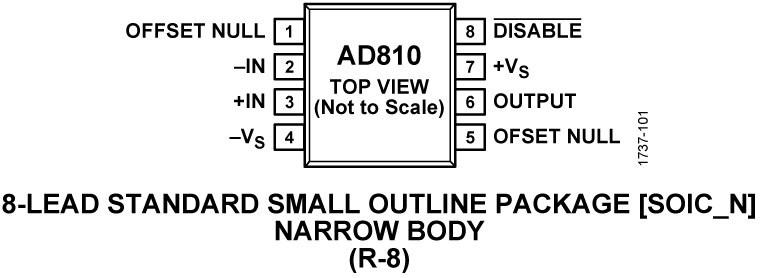

AD810ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD810ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD810ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD810TRZ-EP	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD810TRZ-EP-RL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Apr 9, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
5962-9313201MPA
Nov 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.
		PCN12_0199_Form Material_Report Qualification Report Summary Datasheet Specification Comparison
5962-9313201MPA
Nov 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
5962-9313201MPA		PCN11_0050_Form Material_Report
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
5962-9313201MPA		PCN11_0182_Form Material_Report
Feb 1, 2010 - 10_0020 Test Solutions Services, Inc.(TSSI) as Subcontractor Burn-in Facility.
		Material_Report PCN10_0020_Form Qual Plan
5962-9313201MPA		Material_Report PCN10_0020_Form Qual Plan
Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD810ANZ	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

AD810 SPICE Macro Models 3

Evaluation Kits

Universal Evaluation Board for Single High Speed Operational Amplifiers

Buy Now View Details

Features and Benefits

Enables quick breadboarding/prototyping
User defined circuit configuration
Edge mounted Subminiature Version A (SMA) connector
provisions Easy connection to test equipment and other circuits

Product Details

The Universal Single High Speed Amplifier Evaluation Boards are bare boards that enable users to quickly prototype a variety of amplifier circuits, which minimizes risk and reduces time to market. These boards are all RoHs Compliant. See ordering guide below on what board to order by lead count and package.
