Overview
Features and Benefits
- Low cost
- Easy to use voltage feedback architecture
- High speed
300 MHz, -3 dB bandwidth (G = +1)
1400 V/µs slew rate
20 ns settling to 0.1%
Low distortion: -72 dBc @ 10 MHz
Low noise: 6 nV/√Hz
Low dc rrrors: 5mV max VOS, 1.2 µA max IB - Small packaging
- High output drive current: over 60 mA
- Excellent video specifications
(RL = 150 Ω, G = +2)
Gain flatness 0.1 dB to 40 MHz
0.01% differential gain error
0.02° differential phase error - Drives 4 video loads (37.5 V) with 0.02% differential gain and 0.1° differential phase
- Low power, ±5 V supplies 5 mA typ/amplifier power supply current
Product Details
The AD8056 (dual) voltage feedback amplifier offers bandwidth and slew rate typically found in current feedback amplifiers. Additionally, this amplifier is easy to use and available at a very low cost.
Despite its low cost, the AD8056 provides excellent overall performance. For video applications, its differential gain and phase error is 0.01% and 0.02° into a 150 Ω load, and 0.02% and 0.1° while driving four video loads (37.50 Ω).
Its 0.1 dB flatness out to 40 MHz, wide bandwidth out to 300 MHz, along with 1400 V/µs slew rate and 20 ns settling time, make them useful for a variety of high-speed applications.
The AD8056 requires only 5 mA typ/amplifier of supply current and operates on a dual ±5 V or single +12 V power supply, while capable of delivering over 60 mA of load current. The AD8056 is available in a small 8-lead PDIP, 8-lead SOIC, and 8-lead MSOP packages. These features make the AD8056 ideal for portable and battery powered applications where size and power are critical. This amplifier in the R-8, N-8 and RM-8 packages are available in the extended temperature range of -40°C to +125°C.
AD8055 (Single) PDIP-8, SOIC-8 and SOT-23-5

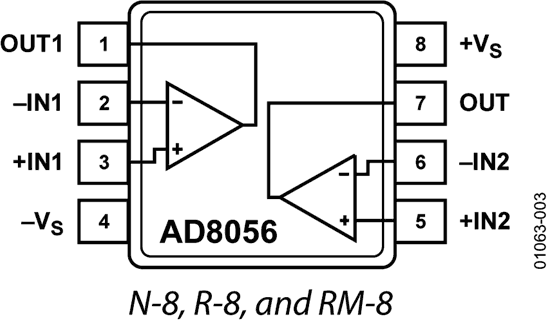

AD8056 (Dual) PDIP-8, SOIC-8 and MSOP-8
