AD8027/AD8028: Low Distortion, High-Speed Rail-to-Rail Input/Output Amplifiers Data Sheet (Rev. D)9/25/2015606 kB
AD8028-KGD: Known Good Die Data Sheet (Rev. B)7/10/2012177 kB
Features and Benefits
- Download AD8028-KGD Data Sheet. Available as Known Good Die and fully guaranteed to data sheet specifications.
- High speed
- 190 MHz, −3 dB bandwidth (G = +1)
- 100 V/µs slew rate
- Low distortion
- 120 dBc at 1 MHz SFDR
- 80 dBc at 5 MHz SFDR
- Selectable input crossover threshold
- Low noise
- 4.3 nV/√Hz
- 1.6 pA/√Hz
- Low offset voltage: 900 µV maximum
- Low power: 6.5 mA per amplifier supply current
- Power-down mode
- No phase reversal: VIN > |VS| + 200 mV
- Wide supply range: 2.7 V to 12 V
- Small packaging: 8-lead SOIC, 6-lead SOT-23, 10-lead MSOP
- Qualified for automotive applications (AD8028WARMZ-R7 only)
The AD8027/AD8028 are high speed amplifiers with rail-to-rail input and output that operate on low supply voltages and are optimized for high performance and a wide dynamic signal range. The AD8027/AD8028 have low noise (4.3 nV/√Hz, 1.6 pA/√Hz) and low distortion (120 dBc at 1 MHz). In applications that use a fraction of or use the entire input dynamic range and require low distortion, the AD8027/AD8028 are ideal choices.

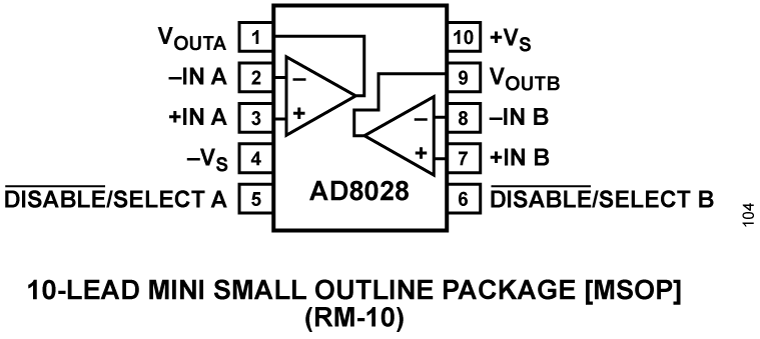

Many rail-to-rail input amplifiers have an input stage that switches from one differential pair to another as the input signal crosses a threshold voltage, which causes distortion. The AD8027/AD8028 have a unique feature that allows the user to select the input crossover threshold voltage through the DISABLE/SELECT pin (DISABLE/SELECT x in the 10-lead MSOP, hereafter referred to as DISABLE/SELECT throughout this data sheet). This feature controls the voltage at which the complementary transistor input pairs switch. The AD8027/AD8028 also have intrinsically low crossover distortion.
With their wide supply voltage range (2.7 V to 12 V) and wide bandwidth (190 MHz), the AD8027/AD8028 amplifiers are designed to work in a variety of applications where speed and performance are needed on low supply voltages. The high performance of the AD8027/AD8028 is achieved with a quiescent current of only 6.5 mA (typical) per amplifier. The AD8027/AD8028 have a shutdown mode that is controlled via the DISABLE/SELECT pin.
The AD8027/AD8028 are available in 8-lead SOIC, 6-lead SOT-23, and 10-lead MSOP packages. The AD8028WARMZ-R7 is an automotive grade version, qualified for automotive applications. See the Automotive Products section for more details. The AD8027/AD8028 family is designed to work over the extended temperature range of −40°C to +125°C.
- ADC drivers
- Level shifting
- Professional video
- Low voltage instrumentation
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The Universal Dual High Speed Amplifier Evaluation Boards are bare boards that enables users to quickly prototype a variety of amplifier circuits, which minimizes risk and reduces time to market. These boards are all RoHs Compliant. See ordering guide below on what board to order by lead count and package.
UG-776: Universal Evaluation Board for Dual High Speed Op Amps Offered in 10-Lead, 3 mm × 3 mm LFCSP241.87 K
UG-337: Universal Evaluation Board for Dual, High Speed Op Amps Offered in 10-Lead MSOP Packages284 kB
UG-267: Universal Evaluation Board for Dual High Speed Op Amps Offered in 8-Lead 3 mm × 3 mm LFCSP
Documentation & Resources
AN-402: Replacing Output Clamping Op Amps with Input Clamping Amps2/14/201555 kB
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications (Rev. 0)2/14/2015166 kB
UG-128: Universal Evaluation Board for Dual High Speed Op Amps in SOIC Packages4/19/2010208 kB
MT-053: Op Amp Distortion: HD, THD, THD + N, IMD, SFDR, MTPR2/14/2015104 kB
MT-052: Op Amp Noise Figure: Don't Be Misled2/14/201560 kB
MT-050: Op Amp Total Output Noise Calculations for Second-Order System2/14/201538 kB
MT-049: Op Amp Total Output Noise Calculations for Single-Pole System2/14/201540 kB
MT-048: Op Amp Noise Relationships: 1/f Noise, RMS Noise, and Equivalent Noise Bandwidth2/14/201581 kB
MT-047: Op Amp Noise2/14/201572 kB
MT-060: Choosing Between Voltage Feedback and Current Feedback Op Amps2/14/201562 kB
MT-059: Compensating for the Effects of Input Capacitance on VFB and CFB Op Amps Used in Current-to-Voltage Converters2/14/201569 kB
MT-033: Voltage Feedback Op Amp Gain and Bandwidth2/14/2015251 kB
MT-058: Effects of Feedback Capacitance on VFB and CFB Op Amps2/14/201566 kB
MT-056: High Speed Voltage Feedback Op Amps2/3/2009109 kB
MT-032: Ideal Voltage Feedback (VFB) Op Amp12/11/200865 kB
SAR ADC & Driver Quick-Match Guide9/13/2013251 kB
High Speed Amplifiers Selection Table2/27/200877 kB
Tools & Simulations
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.
A utility to convert between standard units of power measurement and signal strength.
This tool estimates die temperature and power dissipation based on the supply voltages, ambient temperature, load characteristics, and package thermal data.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|AD8028-KGD-CHIP||Material Declaration||Reliability Data||CHIPS OR DIE|
|AD8028ARMZ||Material Declaration||Reliability Data||10-Lead MSOP|
|AD8028ARMZ-REEL7||Material Declaration||Reliability Data||10-Lead MSOP|
|AD8028ARZ||Material Declaration||Reliability Data||8-Lead SOIC|
|AD8028ARZ-REEL||Material Declaration||Reliability Data||8-Lead SOIC|
|AD8028ARZ-REEL7||Material Declaration||Reliability Data||8-Lead SOIC|
|AD8028WARMZ-R7||Material Declaration||Reliability Data||10-Lead MSOP|
|Wafer Fabrication Data|
