AD8001S: Military Data Sheet5/7/2008
Overview
Features and Benefits
- Excellent Video Specifications
(RL = 150Ω, G = +2)
Gain Flatness 0.1 dB to 100 MHz
0.01% Differential Gain Error
0.025° Differential Phase Error - Low Power
5.5 mA Max Power Supply Current (55 mW) - High Speed and Fast Settling
880 MHz, -3 dB Bandwidth (G = +1)
440 MHz, -3 dB Bandwidth (G = +2)
1200 V/µs Slew Rate typical
10 ns Settling Time to 0.1%
- Low Distortion
-65 dBc THD, fc = 5 MHz
33 dBm Third Order Intercept, F1 = 10 MHz
-66 dB SFDR, f = 5 MHz - gh Output Drive
70 mA Output Current typical
Drives Up to 4 Back-Terminated Loads
(75Ω Each) While Maintaining
Good Differential
Gain/Phase Performance
(0.05%/0.25°)
Product Details
The AD8001 is a low power, high speed amplifier designed to operate on ±5 V supplies. The AD8001 features unique transimpedance linearization circuitry. This allows it to drive video loads with excellent differential gain and phase performance on only 50 mW of power. The AD8001 is a current feedback amplifier and features gain flatness of 0.1 dB to 100 MHz while offering differential gain and phase error of 0.01% and 0.025°. This makes the AD8001 ideal for professional video electronics such as cameras and video switchers. Additionally, the AD8001's low distortion and fast settling make it ideal for buffer high speed A-to-D converters.
The AD8001 offers low power of 5.5 mA max (VS = ±5 V) and can run on a single +12 V power supply, while being capable of delivering over 70 mA of load current. These features make this amplifier ideal for portable and battery powered applications where power is critical.
The outstanding bandwidth of 800 MHz along with 1200 V/µs of slew rate make the AD8001 useful in many general purpose high speed applications where dual power supplies of up to ±6 V and single supplies from 6 V to 12 V are needed.
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
AD8001S High Dose Rate Radiation Report7/31/2015
-
AD8001S Low Dose Rate Radiation Report7/31/2015
-
MT-034: Current Feedback (CFB) Op Amps3/26/2009
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| 5962L9459302VHA | Material Declaration | Reliability Data | 18 ld CerDip | |

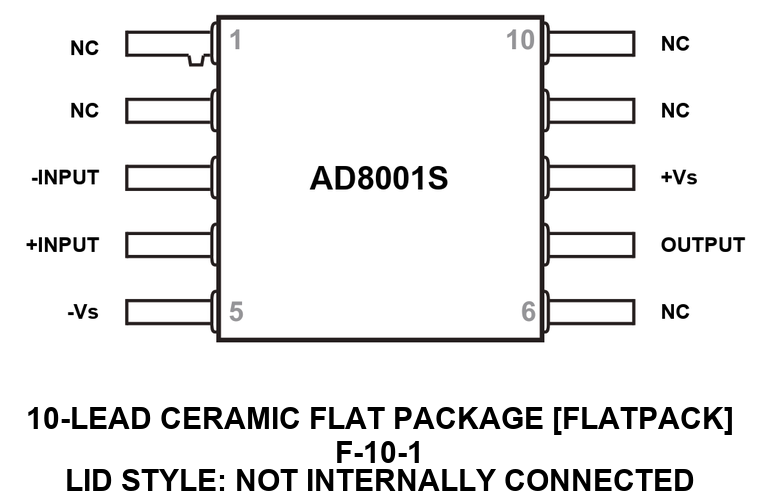

| 5962R9459301VHA | Material Declaration | Reliability Data | 10 ld Flat Pack | |

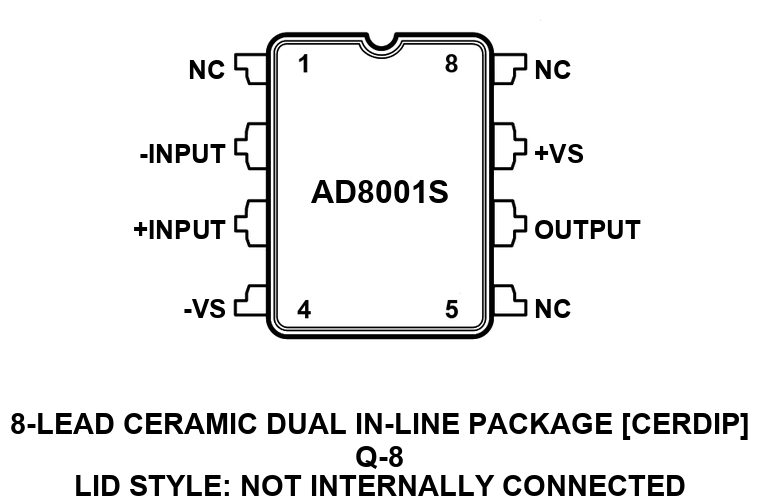

| 5962R9459301VPA | Material Declaration | Reliability Data | 8-Lead CerDIP | |
| Wafer Fabrication Data |
