  5. AD5737

Alternative Parts


Features and Benefits

  • 12-Bit Resolution and Monotonicity
  • Dynamic Power Control for Thermal Management or external PMOS mode
  • IOUT Range: 0mA-20mA, 4mA–20mA or 0mA–24mA ±0.1% (TUE) Maximum
  • User programmable Offset and Gain
  • On-Chip Diagnostics
  • On-Chip Reference: ±10 ppm/°C maximum
  • −40°C to +105°C Temperature Range

Product Details

The AD5737 is a quad-channel current output DAC that operates with a power supply range from 10.8 V to 33 V. On-chip dynamic power control minimizes package power dissipation by regulating the voltage on the output driver from 7.4 V to 29.5 V using a dc-to-dc boost converter optimized for minimum on-chip power dissipation.

Each channel has a corresponding CHART pin so that HART signals can be coupled onto the current output of the AD5737.

The AD5737 uses a versatile 3-wire serial interface that operates at clock rates of up to 30 MHz and is compatible with standard SPI, QSPI™, MICROWIRE®, DSP, and microcontroller interface standards. The serial interface also features optional CRC-8 packet error checking, as well as a watchdog timer that monitors activity on the interface.

For a 16 bit equivalent solution, look at the AD5757. For a voltage and current configurable version, see the AD5755, AD5755-1 or AD5735.

Product Highlights

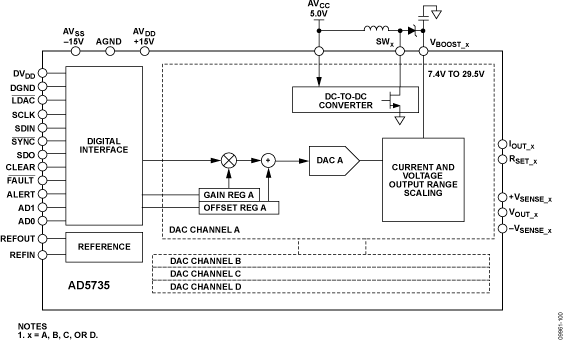

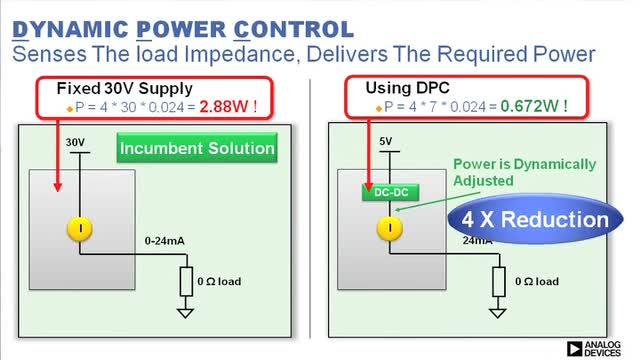

  1. Dynamic power control for thermal management.
  2. 12-bit performance.
  3. Quad channel.
  4. HART compliant.


  • Process control
  • Actuator Control
  • PLCs
  • HART Network Connectivity

Product Lifecycle icon-not-recommended Not Recommended for New Designs

This designates products ADI does not recommend broadly for new designs.

Evaluation Kits (1)

Software & Systems Requirements

Product Recommendations

AD5737 Companion Parts

Recommended Digital Isolators

Recommended External 5V References

  • For precision, low cost, wide supply, small package: ADR02.
  • For high accuracy, low noise, low temperature drift: ADR435, ADR445.

Recommended Low Power Hart Modem

Recommended Switching DC-DC Regulators

  • For a high voltage, buck regulator with integrated power MOSFET: ADP2302, ADP2303.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

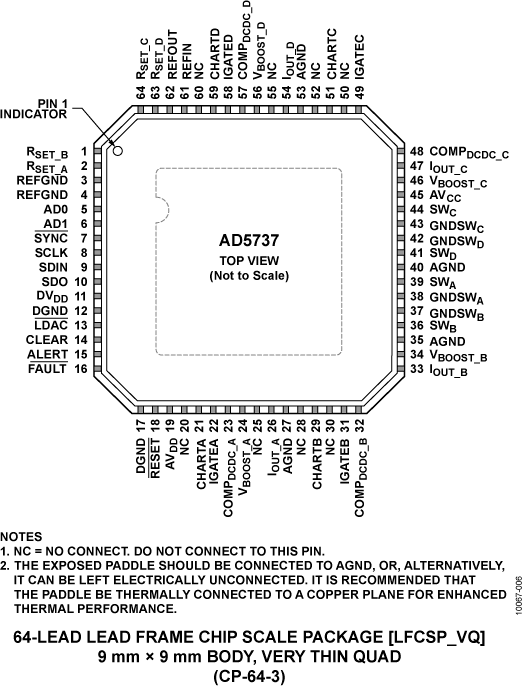

AD5737ACPZ Material Declaration Reliability Data 64-Lead LFCSP (9mm x 9mm w/ EP)
