Features and Benefits

  • 12-Bit Linearity and Monotonic
    -40°C to +125°C
  • Single +5 V to +12 V or dual ±5 V supply operation
  • Unipolar or Bipolar Voltage Output Spans
  • 5 µs Settling Time
  • Double Buffered Registers Enable Simultaneous Multi-Channel Updates
  • 4 Separate Rail-to Rail Reference Inputs
  • Data Readback Capability

Product Details

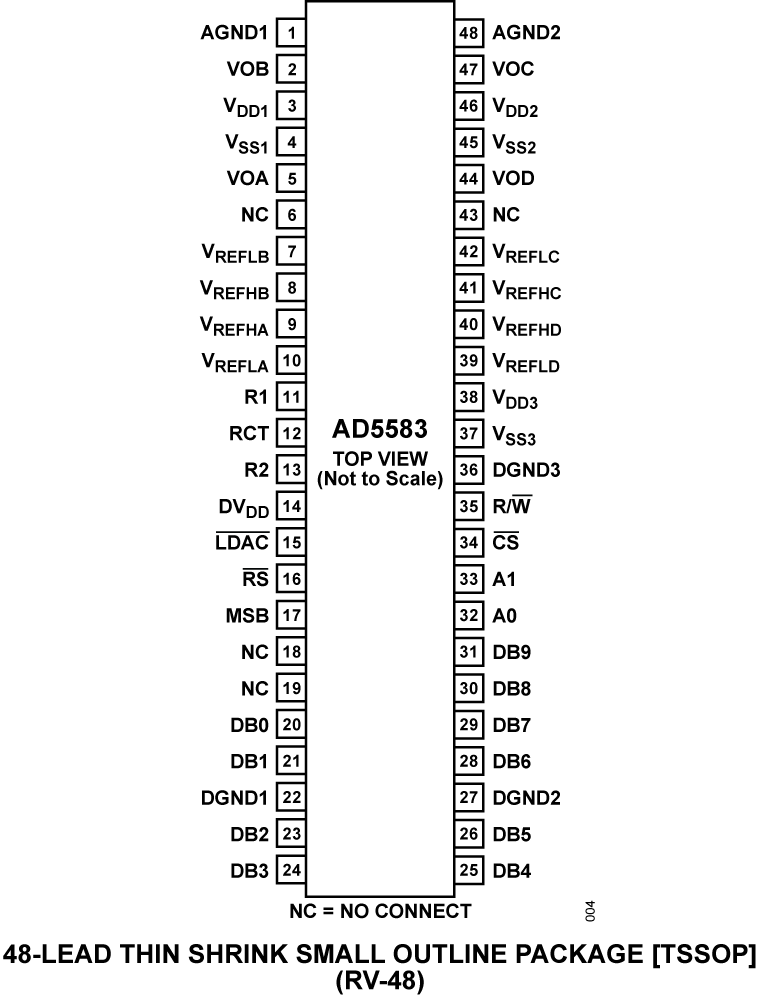

The new AD5582 / AD5583 offer pin compatible, quad 12-/10-Bit digital-to-analog converters with separate reference inputs allowing users to individually establish output spans. These low power (<3 mA), fast settling time (5 µs) devices are offered in the compact TSSOP-48 package. Fast parallel digital interfacing allows data loading at 20 MSPS and Readback of the input registers. Operation from single +5 to +15 V supplies as well as dual supply operation to ±5 V insures that most of the higher voltage actuators can be directly controlled without further amplification to higher voltages. Ideal for instrumentation, industrial control and optical network DWDM control circuits.

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

Precision DAC Error Budget Tool

The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
