Features and Benefits

  • 12-bit linearity and monotonic AD5582
  • Wide operating range: single 5 V to 15 V or dual ±5 V supply
  • Unipolar or bipolar operation
  • Double buffered registers enable independent or simultaneous multichannel updates
  • 4 independent rail-to-rail reference inputs
  • 20 mA high current output drive
  • Parallel interface
  • Data readback capability
  • 5 μs settling time
  • Built-in matching resistor simplifies negative reference
  • Unconditionally stable under any capacitive loading

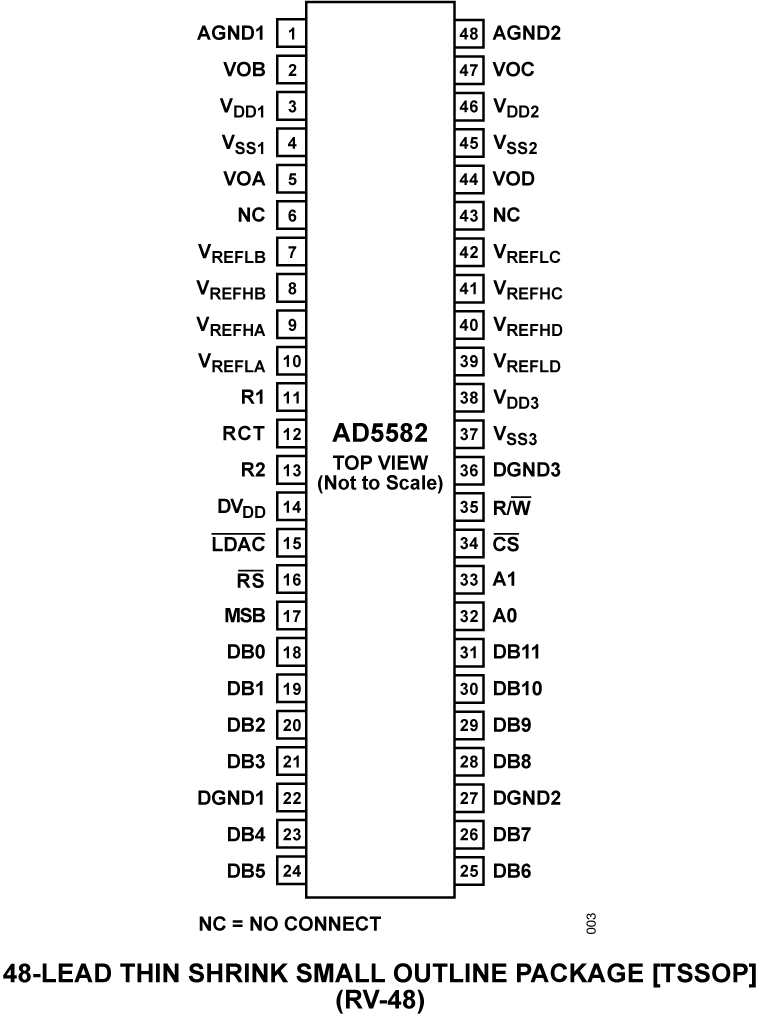

  • Compact footprint: TSSOP-48
  • Extended temperature range: −40°C to +125°C

Product Details

The AD5582/AD5583 family of quad, 12-/10-bit, voltage output digital-to-analog converters is designed to operate from a single 5 V to 15 V or dual ±5 V supply. It offers the user ease of use in single- or dual-supply systems. Built using an advance BiCMOS process, this high performance DAC is dynamically stable, capable of high current drive, and in a small form factor.

The applied external reference VREF determines the full-scale output voltage ranges from VSS to VDD, resulting in a wide selection of full-scale outputs. For multiplying and wide dynamic applications, ac reference inputs can be as high as |VDD – VSS|. Two built-in precision trimmed resistors are available and can be configured easily to provide four-quadrant multiplications.

A doubled-buffered parallel interface offers a fast settling time. A common level sensitive load DAC strobe (LDAC) input allows additional simultaneous update of all DAC outputs. An external asynchronous reset (RS) forces all registers to the zero code state when the MSB = 0 or to midscale when the MSB = 1.

Both parts are offered in the same pinout and package to allow users to select the appropriate resolution for a given application without PCB layout changes. The AD5582 is well suited for DAC8412 replacement in medium voltage applications in new designs, as well as any other general purpose multichannel 10-to 12-bit applications.

The AD5582/AD5583 are specified over the extended industrial (−40°C to +125°C) temperature range and offered in a thin and compact 1.1 mm TSSOP-48 package.


  • Process control equipment
  • Closed-loop servo control
  • Data acquisition systems
  • Digitally controlled calibration
  • Optical network control loops
  • 4 mA to 20 mA current transmitter

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

Precision DAC Error Budget Tool

The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
