Overview

Features and Benefits

  • Quad channel high voltage DAC
  • 12-bit resolution
  • Pin selectable 30 V or 60 V output range
  • Integrated Precision Reference
  • Low power serial interface with readback capability
  • Integrated Temperature Sensor Alarm function
  • Power-On Reset
  • Simultaneous updating via LDAC
  • Wide operating temperature: −40°C to +105°C

Product Details

The AD5504 is a quad-channel, 12-bit, serial input, digital-to-analog converter with on-chip high voltage output amplifiers and an integrated precision reference. The DAC output voltage ranges are programmable via the range select pin (R_SEL). If R_SEL is held high, the DAC output ranges are 0 V to 30 V. If R_SEL is held low, the DAC output ranges are 0 V to 60 V. The on-chip output amplifiers allow an output swing within the range of AGND + 0.5 V to VDD − 0.5 V.

The AD5504 has a high speed serial interface, which is com-patible with SPI®-, QSPI™-, MICROWIRE™-, and DSP-interface standards and can handle clock speeds of up to 16.667 MHz.

APPLICATIONS
  • Programmable voltage sources
  • High voltage LED drivers
  • Receiver bias in optical communications
  • Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

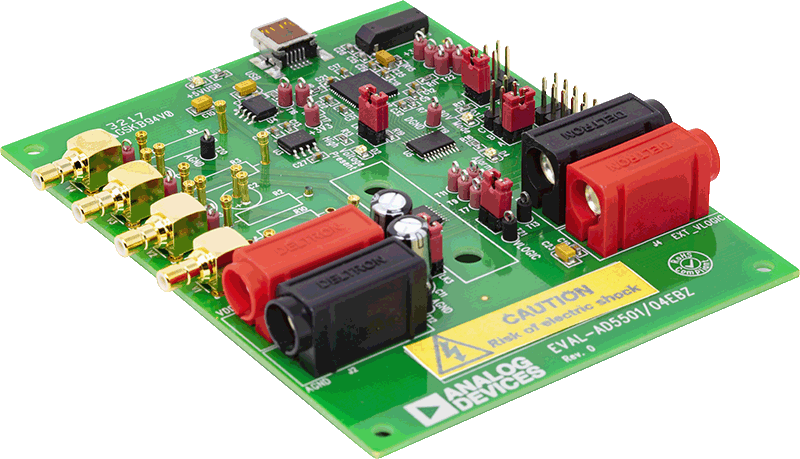

    Evaluation Kits (1)

    Tools & Simulations

    Precision DAC Error Budget Tool

    The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.

    Precision DAC Error Budget Tool

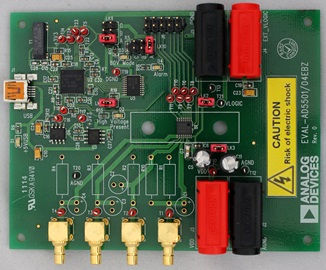

    Reference Designs (1)

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    AD5504BRUZ Material Declaration Reliability Data 16-Lead TSSOP
    AD5504BRUZ-REEL Material Declaration Reliability Data 16-Lead TSSOP
