Features
- 16-channel DAC in 52-lead LQFP package
- Guaranteed monotonic to 16/14 bits
- Nominal output voltage range of −10 V to +10 V
- Multiple output spans available
- Temperature monitoring function
- Channel monitoring multiplexer
- Digital reset (RESET)
- Clear function to user-defined SIGGNDx
- GPIO function
- System calibration function allowing user-programmable offset and gain
- Channel grouping and addressing features
- Data error checking feature
- SPI-compatible serial interface
- 2.5 V to 5.5 V digital interface
- Simultaneous update of DAC outputs
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD5360 / AD5361 contain 16, 16-/14-bit DACs in a single 52-lead LQFP package. It provides buffered voltage outputs with a span four times the reference voltage. The gain and offset of each DAC can be independently trimmed to remove errors. For even greater flexibility, the device is divided into two groups of eight DACs, and the output range of each group can be independently adjusted by an offset DAC.
The AD5360 / AD5361 offer guaranteed operation over a wide supply range with VSS from −4.5 V to −16.5 V and VDD from +8 V to +16.5 V. The output amplifier headroom requirement is 1.4 V operating with a load current of 1 mA.
The AD5360 / AD5361 have a high speed 4-wire serial interface, which is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards and can handle clock speeds of up to 50 MHz. All the outputs can be updated simultaneously by taking the LDAC input low. Each channel has a programmable gain and an offset adjust register.
Each DAC output is amplified and buffered on-chip with respect to an external SIGGND input. The DAC outputs can also be switched to SIGGND via the CLR pin.
APPLICATIONS
- Instrumentation
- Industrial control systems
- Level setting in automatic test equipment (ATE)
- Variable optical attenuators (VOA)
- Optical line cards
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5361
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Application Note
-
Product Highlight
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
Application Note
6
HTML
HTML
HTML
HTML
Product Highlight
1
Documentation
Data Sheet 1
Application Note 4
AN-1582: Automated Calibration Technique That Reduces the AD5360 16-Channel, 16-Bit DAC Offset Voltage to Less Than 1 mV (Rev.A)
AN-1587: 16 Channels of Programmable Output Span Using the AD5360 16-Bit Voltage Output DAC (Rev.A)
AN-0986: Adjusting the Output Range and Span of the AD5362
AN-1036: Clear to Any Voltage Using the AD5370
Product Highlight 1
Product Selection Guide 1
Product Highlight 1
Solutions Bulletin & Brochure 1
Device Drivers 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

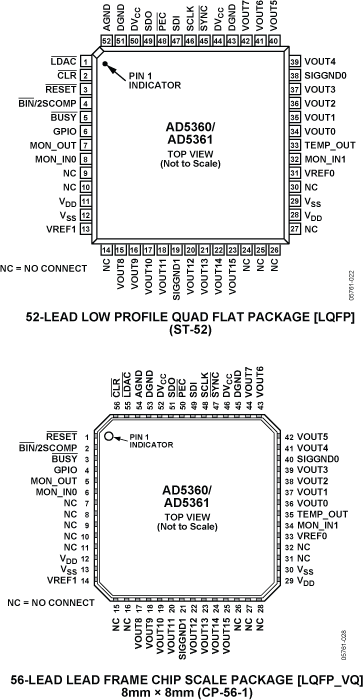

| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5361BCPZ |
56-Lead LFCSP (8mm x 8mm)
|
|
|
| AD5361BCPZ-REEL7 |
56-Lead LFCSP (8mm x 8mm)
|
|
|
| AD5361BSTZ |
52-Lead LQFP (10mm x 10mm)
|
|
- AD5361BCPZ
- Pin/Package Drawing
-
56-Lead LFCSP (8mm x 8mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5361BCPZ-REEL7
- Pin/Package Drawing
-
56-Lead LFCSP (8mm x 8mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5361BSTZ
- Pin/Package Drawing
-
52-Lead LQFP (10mm x 10mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 9, 2021
- 20_0126
Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
AD5361BCPZ
PRODUCTION
AD5361BCPZ-REEL7
PRODUCTION
Jun 16, 2009
- 09_0027
Conversion to Laser Mark for the LQFP Packages (Single Grades)
AD5361BSTZ
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 9, 2021
- 20_0126
Conversion of Select Sizes LFCSP Products from Punched to Sawn and Transfer of Assembly Site to ASE Korea
AD5361BCPZ
PRODUCTION
AD5361BCPZ-REEL7
PRODUCTION
Jun 16, 2009
- 09_0027
Conversion to Laser Mark for the LQFP Packages (Single Grades)
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1

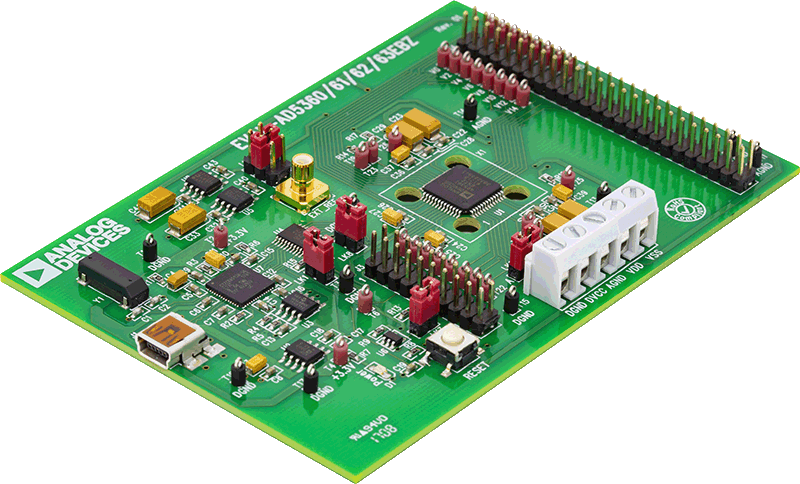

EVAL-AD5361
AD5361 Evaluation Board
Product Detail
Resources
Evaluation Kits1
Tools & Simulations 1
Precision DAC Error Budget Tool
