Overview
Features and Benefits
- 16-channel DAC in 52-lead LQFP package
- Guaranteed monotonic to 16/14 bits
- Nominal output voltage range of −10 V to +10 V
- Multiple output spans available
- Temperature monitoring function
- Channel monitoring multiplexer
- Digital reset (RESET)
- See Data Sheet for Additional Information
Product Details
The AD5360 / AD5361 contain sixteen, 16-/14-bit DACs in a single 52-lead LQFP or 56-lead LFCSP package. They provide buffered voltage outputs with a span four times the reference voltage. The gain and offset of each DAC can be independently trimmed to remove errors. For even greater flexibility, the device is divided into two groups of eight DACs, and the output range of each group can be independently adjusted by an offset DAC.
The AD5360 / AD5361 offer guaranteed operation over a wide supply range with VSS from −4.5 V to −16.5 V and VDD from +8 V to +16.5 V. The output amplifier headroom requirement is 1.4 V.
The AD5360 / AD5361 have a high speed 4-wire serial interface, which is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards and can handle clock speeds of up to 50 MHz. All the outputs can be updated simultaneously by taking the LDAC input low. Each channel has a programmable gain register and an offset adjust register.
Each DAC output is amplified and buffered on-chip with respect to an external SIGGNDx input. The DAC outputs can also be switched to SIGGNDx via the CLR pin.
APPLICATIONS
- Instrumentation
- Industrial control systems
- Level setting in automatic test equipment (ATE)
- Variable optical attenuators (VOA)
- Optical line cards
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

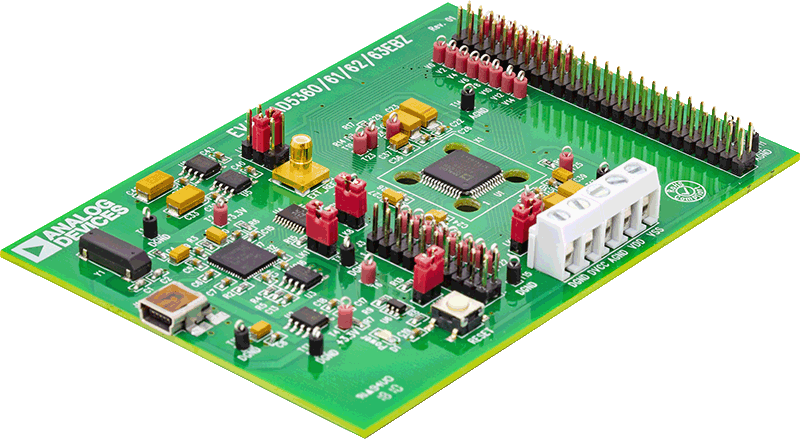

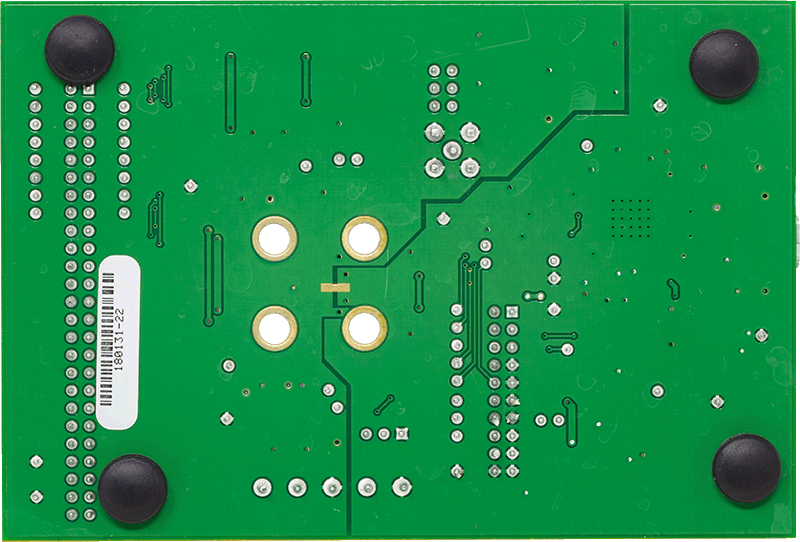

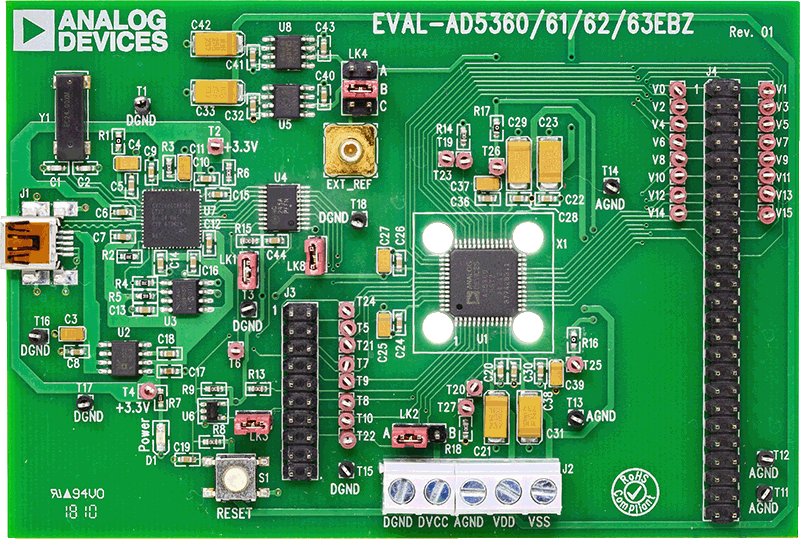

Evaluation Kits (1)
Documentation & Resources
-
AN-1587: 16 Channels of Programmable Output Span Using the AD5360 16-Bit Voltage Output DAC (Rev. A)10/3/2018
-
AN-1582: Automated Calibration Technique That Reduces the AD5360 16-Channel, 16-Bit DAC Offset Voltage to Less Than 1 mV (Rev. A)9/13/2018
-
AN-1036: Clear to Any Voltage Using the AD5370 (Rev. 0)2/14/2015
-
AN-0986: Adjusting the Output Range and Span of the AD5362 (Rev. 0)2/14/2015
-
Cyclic Redundancy Checking Ensures Correct Data Communications2/1/2011 Analog Dialogue
-
Automated Calibration Technique Reduces DAC Offset to Less than 1 mV6/1/2009 Analog Dialogue
-
Open-Loop Calibration Techniques for Digital-to-Analog Converters6/1/2008 Analog Dialogue
Software & Systems Requirements
Evaluation Software
Device Drivers
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD5360-WAFER | Material Declaration | Reliability Data | CHIPS OR DIE | |
| AD5360BCPZ | Material Declaration | Reliability Data | 56-Lead LFCSP (8mm x 8mm) | |
| AD5360BCPZ-REEL7 | Material Declaration | Reliability Data | 56-Lead LFCSP (8mm x 8mm) | |
| AD5360BSTZ | Material Declaration | Reliability Data | 52-Lead LQFP (10mm x 10mm) | |
| Wafer Fabrication Data |
