MAX9669
PRODUCTION10-Bit Programmable Gamma Reference System with MTP for TFT LCDs
10-Bit DAC Resolution and MTP Memory Provides Nonvolatile Memory, Eliminating the Need for External EEPROM
- Part Models
- 2
- 1ku List Price
- price unavailable
Overview
- 16-Channel Gamma Correction, 10-Bit Resolution
- VCOM Driver
- Integrated MTP Memory
- Programmable VCOM Limits
- 200mA Peak Current on Gamma Channels
- 600mA Peak Current on VCOM Channel
- 1µs Settling Time

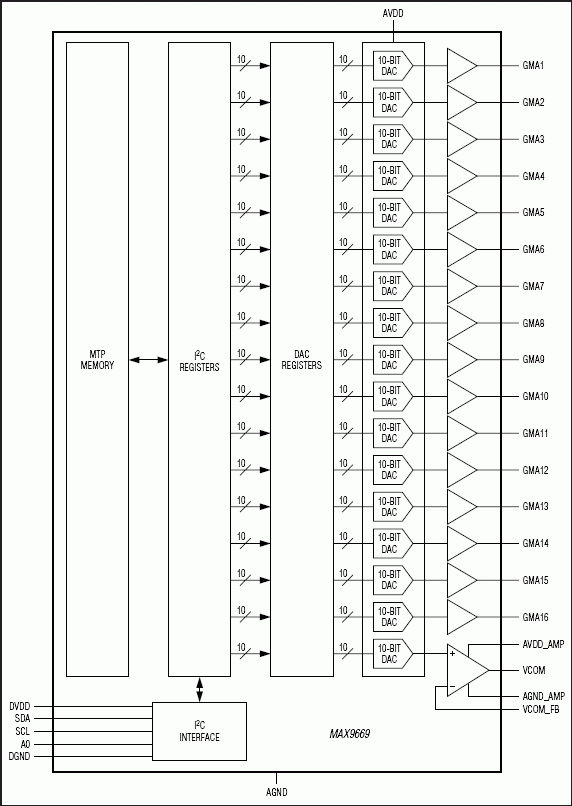

The MAX9669 outputs 16 voltage references for gamma correction in TFT LCDs and one voltage reference for VCOM. Each gamma reference voltage has its own 10-bit digital-to-analog converter (DAC) and buffer to ensure a stable voltage. The VCOM reference voltage has its own 10-bit DAC and an amplifier to ensure a stable voltage when critical levels and patterns are displayed. The MAX9669 features integrated multiple-time programmable (MTP) memory to store gamma and VCOM values on the chip, eliminating the need for external EEPROM. The MAX9669 supports up to 100 write operations to the on-chip nonvolatile memory.
The gamma outputs can drive 200mA peak transient current and settle within 1µs. The VCOM output can provide 600mA peak transient current and also settles within 1µs. The analog supply voltage range extends from 9V to 20V, and the digital supply voltage range extends from 2.7V to 3.6V.
Gamma values and the VCOM value are programmed into registers through the I²C interface.
Applications
- TFT LCDs
