MAX77978

Name: MAX77978
Brand: Analog Devices
Price: 2.63 USD
Availability: InStock

PRODUCTION

Standalone USB Type-C and USB Power Delivery Controller

Industry's Simplest Standalone USB Type-C and USB Power Delivery Controller

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.63

Viewing:

Overview

MCU-Based Configuration
- No Firmware Development Needed inAutonomous Configuration
- Customizable Firmware Based on EndApplication Requirements
RISC-V CPU and 16Kbyte MTP
- USB Type-C Compliant Default Embedded Firmware
- Supports Customizable Actions on Events
- Firmware Updates for Future Specification Revisions
USB Type-C Support and USB-PD Support
- USB Type-C Version 2.3 and PD3.2 Compliant
- Mode Configuration: Sink/Source/Dual Role Port
- Programmable Power Supply (PPS) Sink Support
- Fast Role Swap (FRS) Initial Sink Support
- Alternate Mode Support and Integrated SBUCrossbar Mux
- Integrated V_CONN Switch with OCP
- Support Try.Snk State and Try.Src State
- Debug Accessory Sink/Source Mode

Supports BC1.2 Legacy/Proprietary Charger/ HVDCP Detection.
Integrated D+/D- Switches for USB2.0 and UART
Integrated eUSB2-USB 2.0 Repeater Compliant toUSB Revision2.0 (Rev 1.2)
Liquid Corrosion Mitigation Mode
V_DD Operating Range, 3.1V – 5.5V
High Voltage V_BUS (52V), DP/DN (16V), CC (52V)
Short to V_BUS Protection on CC Pins and SBU Pins (50V)
Dead Battery Support (SNK Mode Support When NoVDD Applied)
I²C Programmable Configuration (Three SIDs)

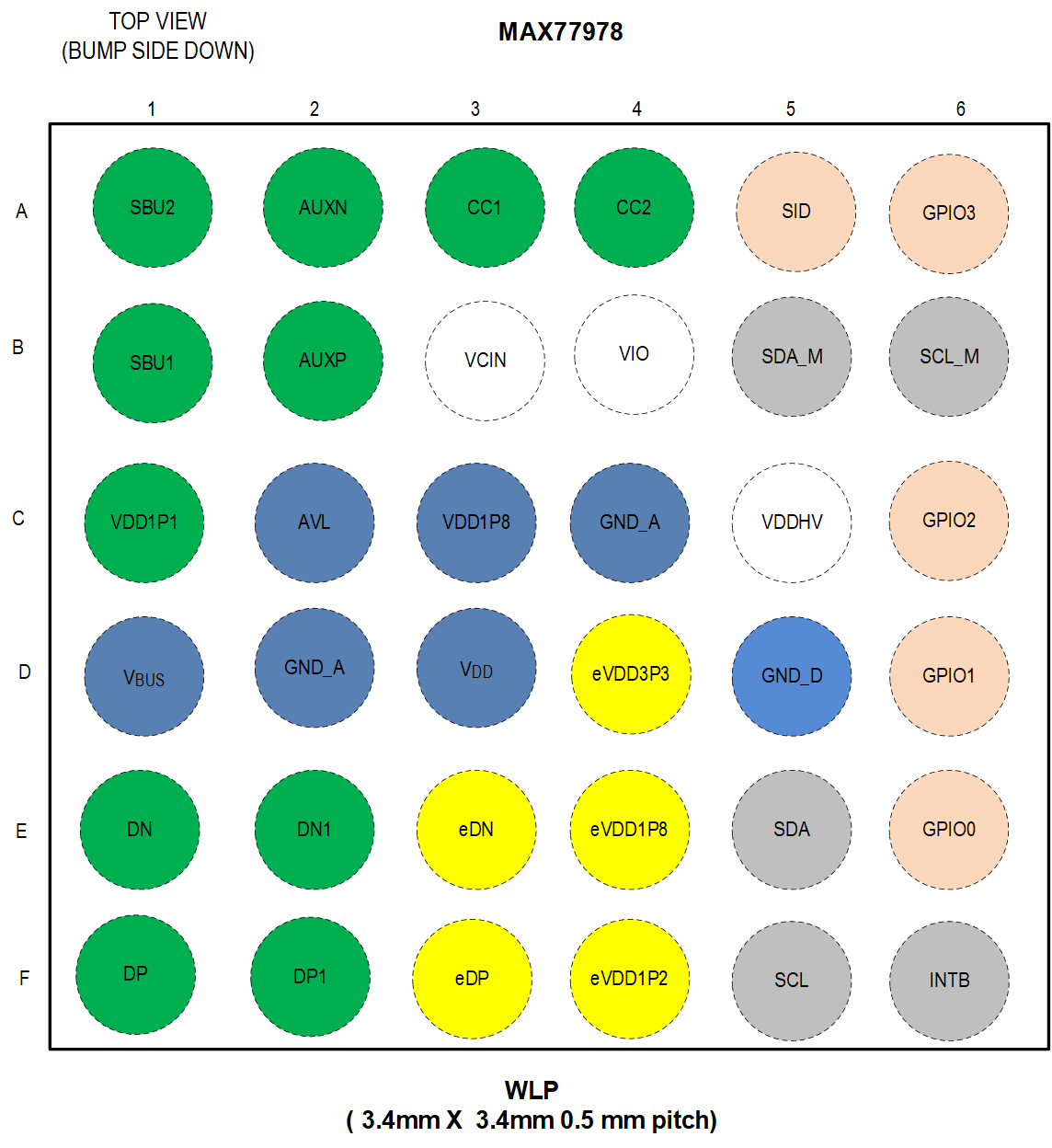

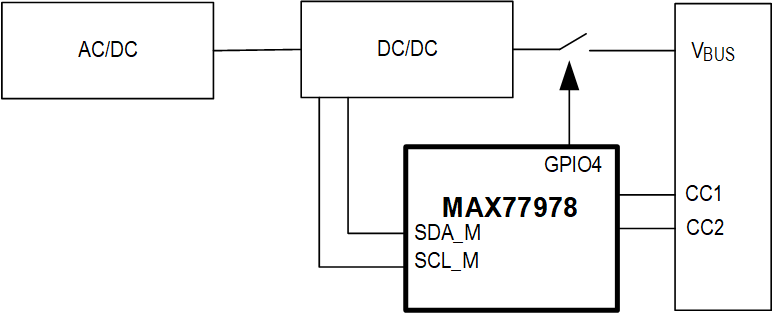

I²C Controller to Control the External Charger or DC-DC Converter

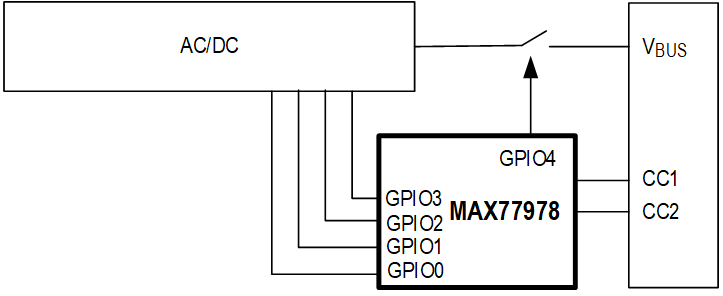

5 Configurable GPIOs (Including SID)

Part Models: 2
1ku List Price: Starting From $2.63

Documentation

Data Sheet 1

MAX77978: Standalone USB Type-C and USB Power Delivery Controller Data Sheet (Rev.1) 09/03/2026

User Guide 2

MAX77978EVKIT User Guide: Evaluates: MAX77978 (Rev.0) 09/03/2026

MAX77978 Register Map, Custom script and OP Code Command Guide (Rev.21) 09/03/2026

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX77978EWX+	WLCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX77978EWX+T	WLCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 1

MAX77978 - Linux Driver NEW

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
MAX77958	PRODUCTION	Standalone USB Type-C and USB Power Delivery Controller

Evaluation Kits

Evaluates: MAX77978

Buy Now View Details

Features and Benefits

MCU-Based Configuration

No Firmware Development Needed in Autonomous Configuration
Customizable Firmware Based on End Application Requirements

RISC-V CPU and 16Kbyte MTP

USB Type-C Compliant Default Embedded Firmware
Supports Customizable Actions on Events
Firmware Updates for Future Specification Revisions

USB Type-C Support and USB-PD Support

USB Type-C Version 2.3 and PD3.2 Compliant
Mode Configuration: Sink/Source/Dual Role Port
Programmable Power Supply (PPS) Sink Support
Fast Role Swap (FRS) Initial Sink Support
Alternate Mode Support and integrated SBU Crossbar Mux
Integrated VCONN Switch with OCP
Support Try.Snk State and Try.Src State
Debug Accessory Sink/Source Mode

Supports BC1.2 Legacy/Proprietary Charger/HVDCP Detection
Integrated D+/D- Switches for USB2.0 and UART

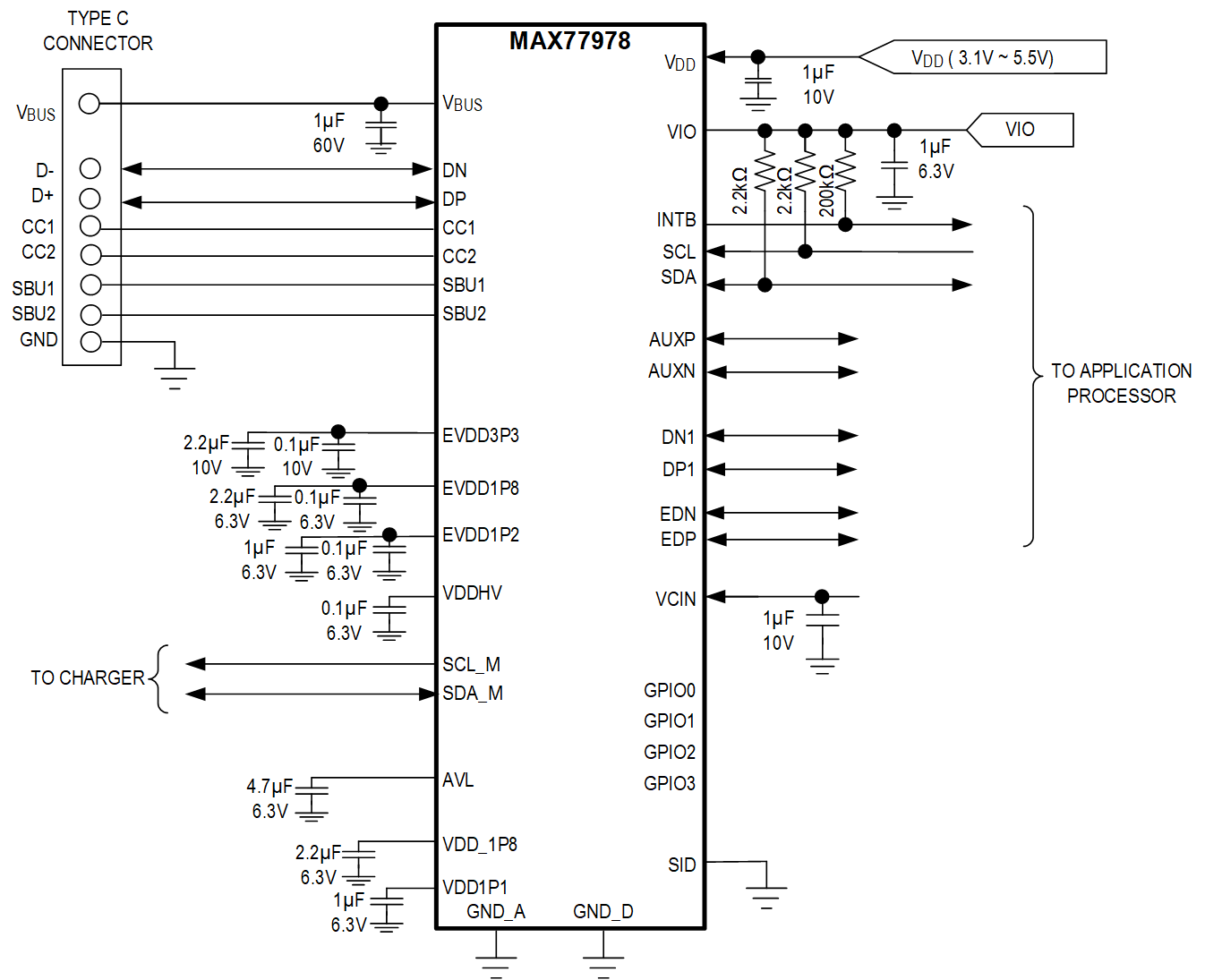

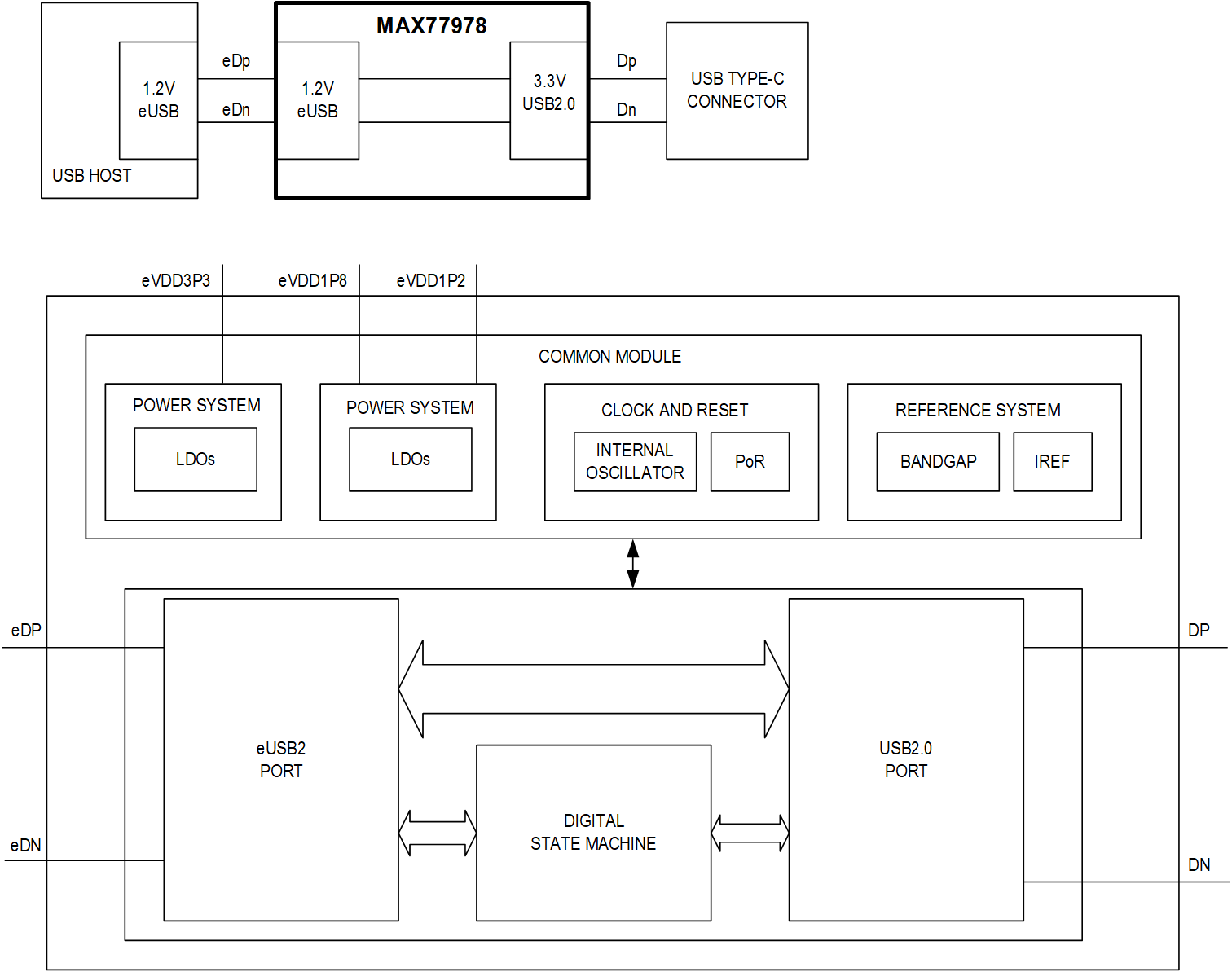

Integrated eUSB2-USB 2.0 Repeater
Liquid Corrosion Mitigation Mode
VDD Operating Range, 3.1V to 5.5V
High Voltage VBUS (52V), DP/DN (24V), CC (52V)
Short-to-VBUS Protection on CC Pins and SBU Pins (50V)
Dead Battery Support (Sink Mode Support when No VDD Applied)
I²C Programmable Configuration (Three SIDs)
I²C Controller-to-Control External Charger or DC-DC Converter
Five Configurable GPIOs (Including SID)

Product Details

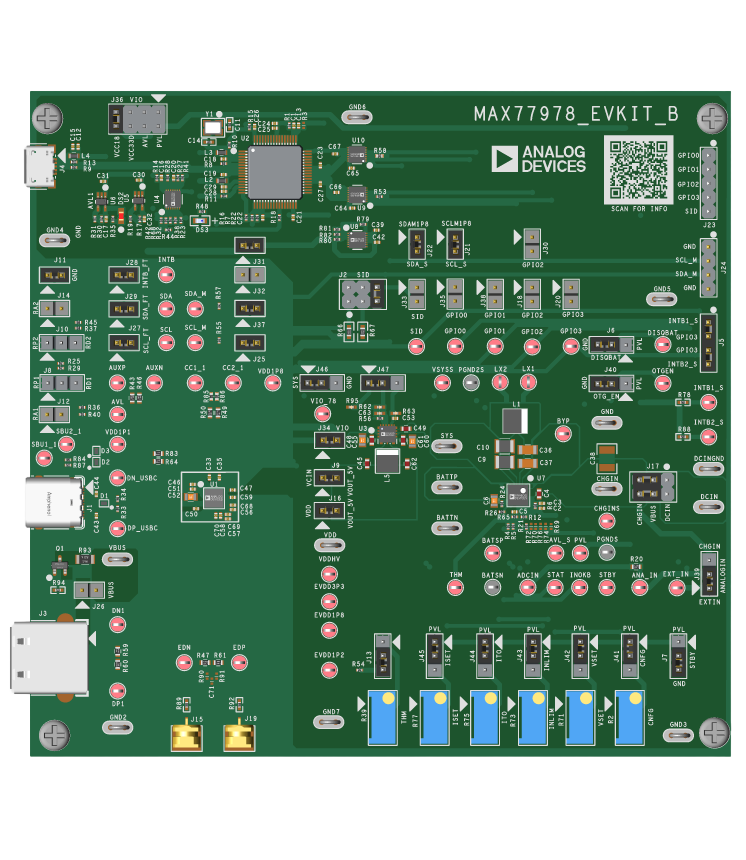

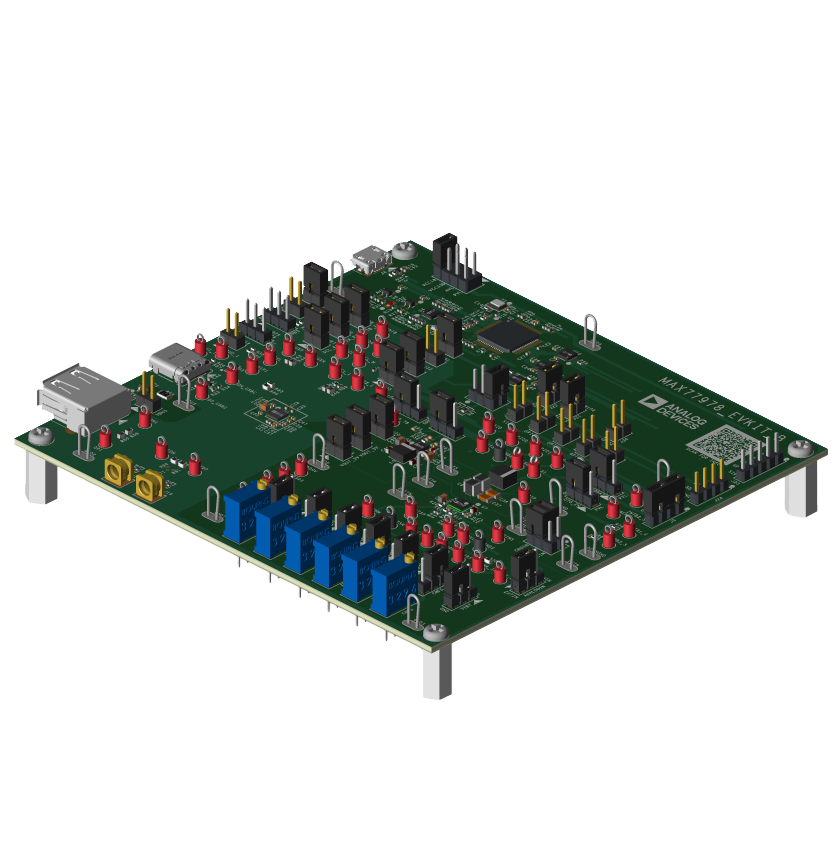

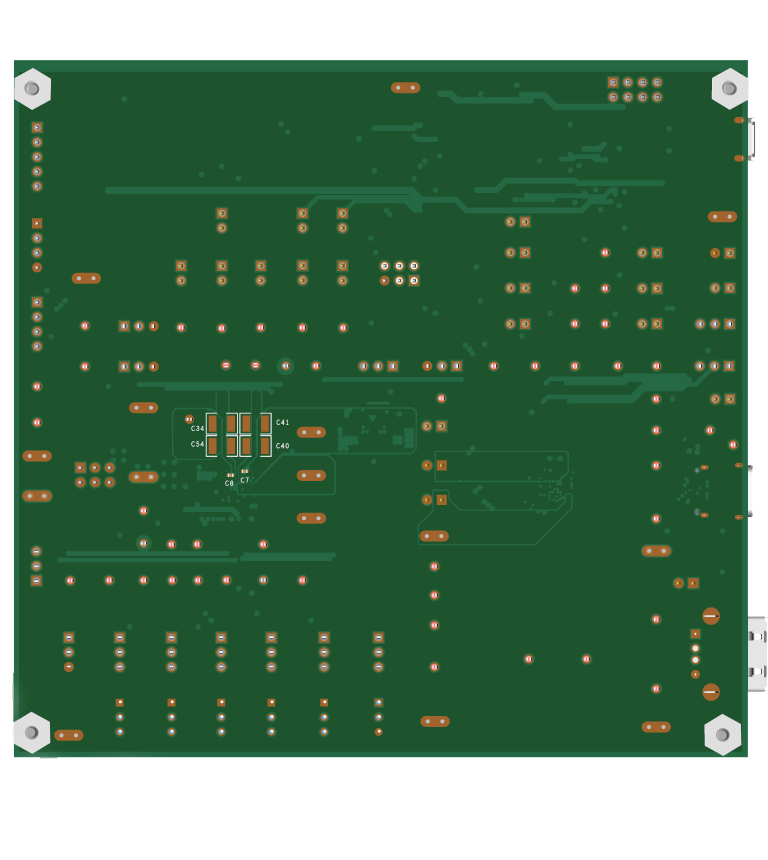

The MAX77978 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that evaluates the MAX77978 Standalone USB Type-C^® and Power Delivery Controller.

The EV kit contains the MAX77963 charger to demonstrate the MAX77978's I²C controller feature. The MAX77963 is a buck-boost charger designed for 2S/3S Li+ battery applications. It can operate with input voltages ranging from 3.5V to 23V and features a maximum programmable fast-charging current of 3.2A.

The MAX42403 buck converter is installed on the EV kit to provide 5V to the VCIN pin. The MAX77963 uses SYS to enable the buck converter.

The EV kit includes the IC evaluation board, which features an integrated I²C-communication interface and a USB micro-B cable. Windows^®-based graphical user interface (GUI) software is available with the EV kit and can be downloaded from the Analog Devices website at www.analog.com. The EV kit software requires a Windows 7 or newer operating system.
