MAX77978EVKIT Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

MCU-Based Configuration

No Firmware Development Needed in Autonomous Configuration
Customizable Firmware Based on End Application Requirements

RISC-V CPU and 16Kbyte MTP

USB Type-C Compliant Default Embedded Firmware
Supports Customizable Actions on Events
Firmware Updates for Future Specification Revisions

USB Type-C Support and USB-PD Support

USB Type-C Version 2.3 and PD3.2 Compliant
Mode Configuration: Sink/Source/Dual Role Port
Programmable Power Supply (PPS) Sink Support
Fast Role Swap (FRS) Initial Sink Support
Alternate Mode Support and integrated SBU Crossbar Mux
Integrated VCONN Switch with OCP
Support Try.Snk State and Try.Src State
Debug Accessory Sink/Source Mode

Supports BC1.2 Legacy/Proprietary Charger/HVDCP Detection
Integrated D+/D- Switches for USB2.0 and UART
Integrated eUSB2-USB 2.0 Repeater
Liquid Corrosion Mitigation Mode
VDD Operating Range, 3.1V to 5.5V
High Voltage VBUS (52V), DP/DN (24V), CC (52V)
Short-to-VBUS Protection on CC Pins and SBU Pins (50V)
Dead Battery Support (Sink Mode Support when No VDD Applied)
I²C Programmable Configuration (Three SIDs)
I²C Controller-to-Control External Charger or DC-DC Converter
Five Configurable GPIOs (Including SID)

Product Details

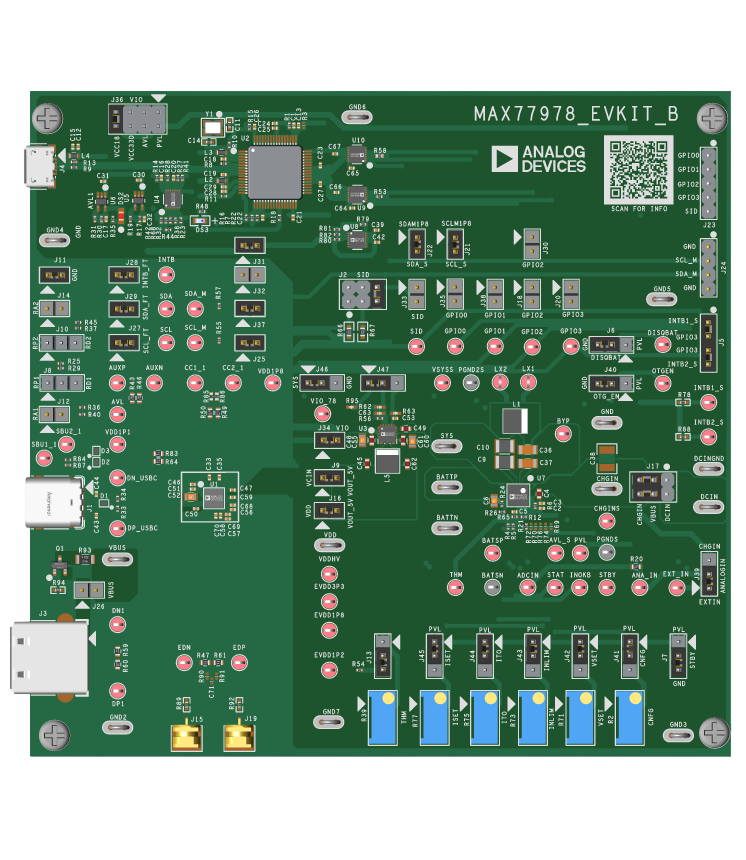

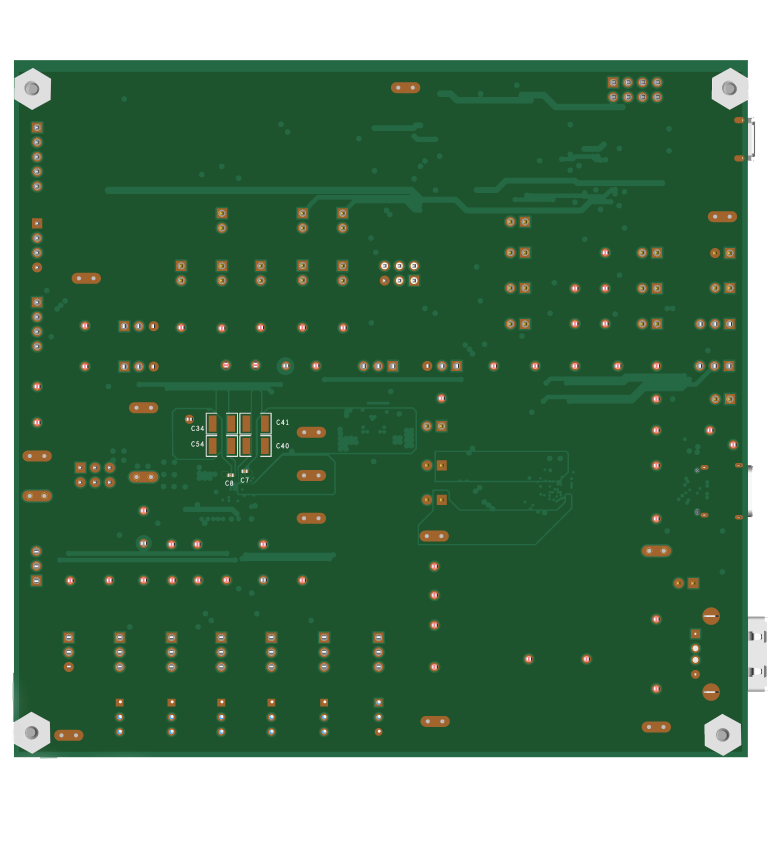

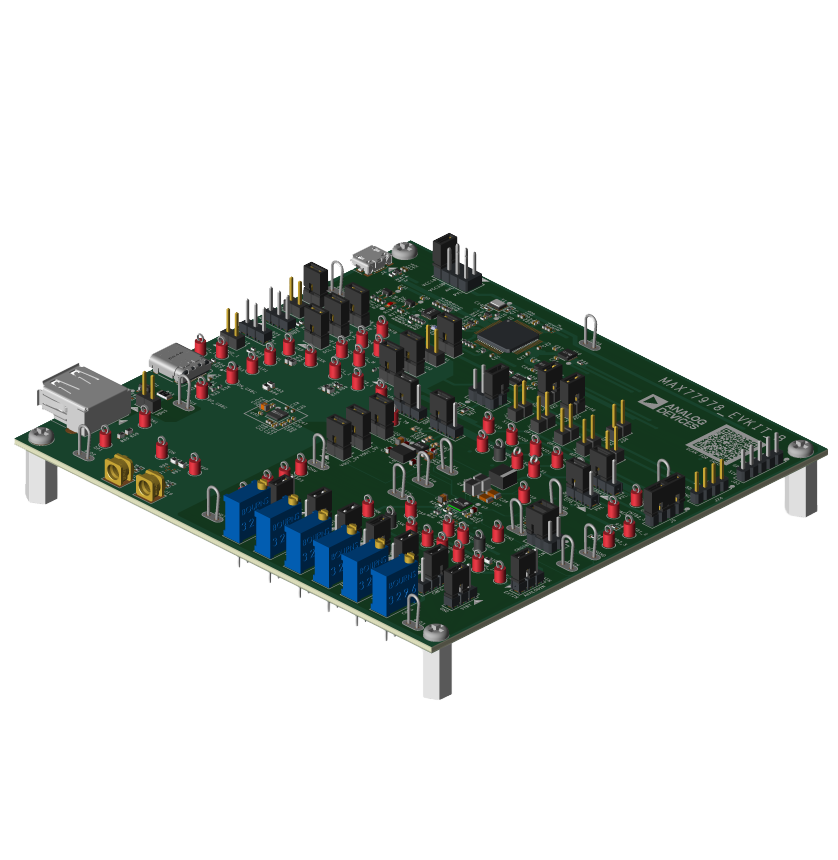

The MAX77978 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that evaluates the MAX77978 Standalone USB Type-C^® and Power Delivery Controller.

The EV kit contains the MAX77963 charger to demonstrate the MAX77978's I²C controller feature. The MAX77963 is a buck-boost charger designed for 2S/3S Li+ battery applications. It can operate with input voltages ranging from 3.5V to 23V and features a maximum programmable fast-charging current of 3.2A.

The MAX42403 buck converter is installed on the EV kit to provide 5V to the VCIN pin. The MAX77963 uses SYS to enable the buck converter.

The EV kit includes the IC evaluation board, which features an integrated I²C-communication interface and a USB micro-B cable. Windows^®-based graphical user interface (GUI) software is available with the EV kit and can be downloaded from the Analog Devices website at www.analog.com. The EV kit software requires a Windows 7 or newer operating system.
