Features and Benefits

  • RF Bandwidth: 25 - 3000 MHz
  • Maximum Phase Detector Rate 100 MHz
  • 3.3 V Supply
  • Ultra Low Phase Noise -110 dBc/Hz in Band Typ.
  • Figure of Merit (FOM) -226 dBc/Hz
  • 24-bit Step Size, Resolution 3 Hz typ
  • Exact Frequency Mode with 0 Hz frequency error
  • Fast Frequency Hopping
  • 40 Lead 6x6 mm SMT Package: 36 mm2

Product Details

The HMC832LP6GE is a 3.3 V, high performance, wide-band, Fractional-N Phase-Locked-Loop (PLL) that features an integrated Voltage Controlled Oscillator (VCO) with a fundamental frequency of 1500 MHz - 3000 MHz, and an integrated VCO Output Divider (divide by 1/2/4/6.../60/62), that enables the HMC832LP6GE to generate continuous frequencies from 25 MHz to 3000 MHz. The integrated Phase Detector (PD) and delta-sigma modulator, capable of operating at up to 100 MHz, permit wider loop-bandwidths and faster frequency tuning, with excellent spectral performance.

Industry leading phase noise and spurious performance, across all frequencies, enable the HMC832LP6GE to minimize blocker effects, improve receiver sensitivity and transmitter spectral purity. Low noise floor (-160 dBc/Hz) eliminates any contribution to modulator/mixer noise floor in transmitter applications.

The HMC832LP6GE features all 3.3 V supply and an innovative Programmable Performance technology that enables the HMC832LP6GE to tailor current consumption and corresponding noise floor performance to each individual application by selecting either a low current consumption mode, or a high performance mode for an improved noise floor performance.

Additional features of the HMC832LP6GE include 12 dB of RF output gain control in 1 dB steps; Output Mute function to automatically mute the output during frequency changes when the device is not locked; Selectable resistance for better output return loss; Programmable differential or single-ended outputs, with the ability to select either output in single-ended mode; and a delta-sigma modulator Exact Frequency Mode which enables users to generate output frequencies with 0 Hz frequency error.


  • Cellular Infrastructure
  • Microwave Radio
  • WiMax, WiFi
  • Communications Test Equipment
  • CATV Equipment
  • DDS Replacement
  • Military
  • Tunable Reference Source for Spurious- Free Performance

Product Lifecycle icon-not-recommended Last Time Buy

All products in this family will be obsolete soon. Please contact ADI Sales or Distributors to arrange for final purchases and read our Obsolescence Information to review the time periods for placing final orders and receiving final shipments.

Documentation & Resources

  • View All (13)
  • Data Sheets (1)
  • Application Notes (4)
  • Product Selection Guide (1)
  • Quality Documentation (3)
  • Technical Articles (3)
  • Tape & Reel Specification (1)
  • Tools & Simulations

    Design Tools


    ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

    ADIsimFrequency Planner Tool

    For those developers dealing with integer boundary spurs from Analog’s PLL synthesizers, the best solution is ADIsimFrequencyPlanner. The frequency planner quickly analyzes the PFD frequency for a user’s output requirements and then optimizes the frequency of each output to identify the highest contributing integer boundary spur performance.

    Product Recommendations

    HMC832 Companion Parts

    Recommended Reference Buffer

    • With integrated filters for improved noise: LTC6957.

    Recommended Reference Clean Up PLL

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.

    PCN-PDN Information

    Sample & Buy

    See our Ordering FAQs for answers to questions about online orders, payment options and more.


    The USA list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. sales office or authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.

    Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact with any questions regarding this Sample Site.

    Price Table Help

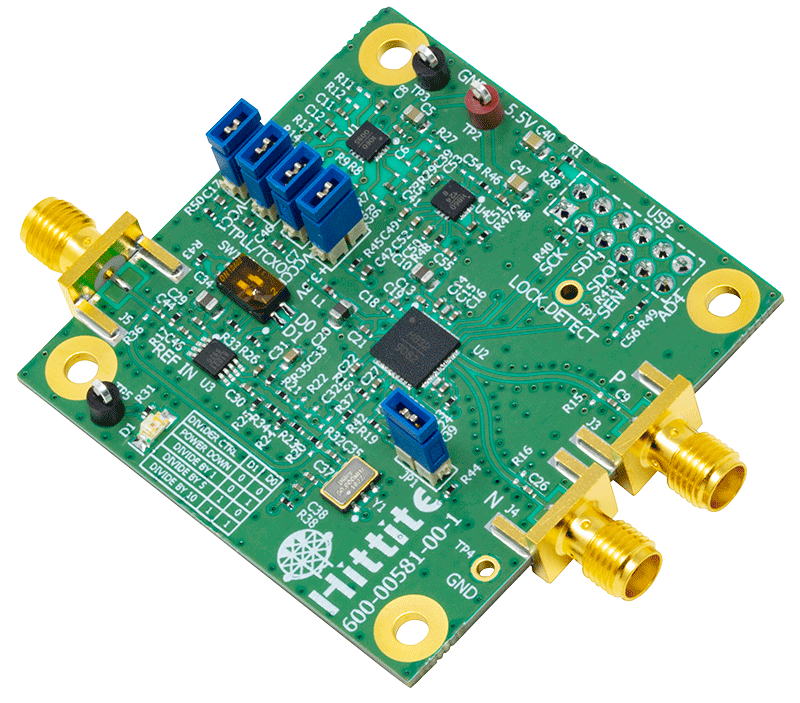

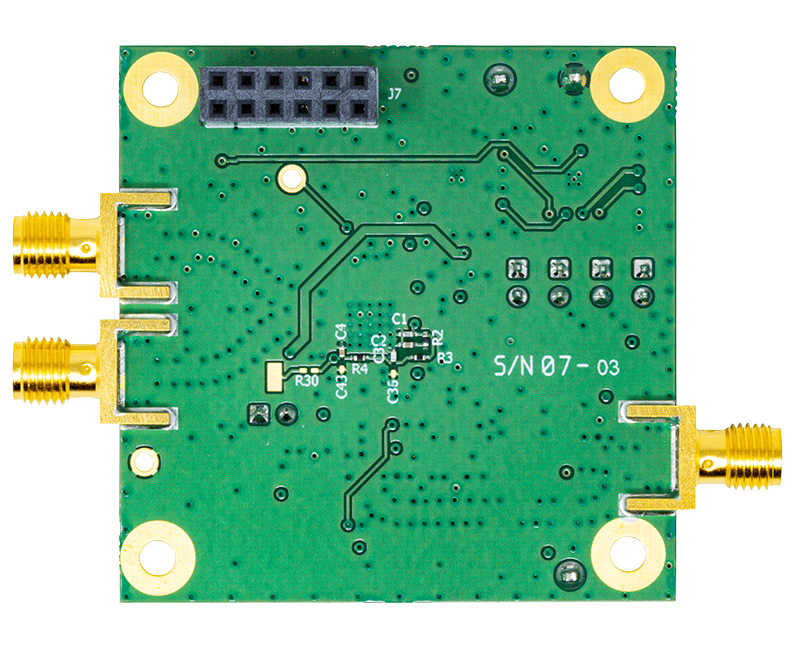

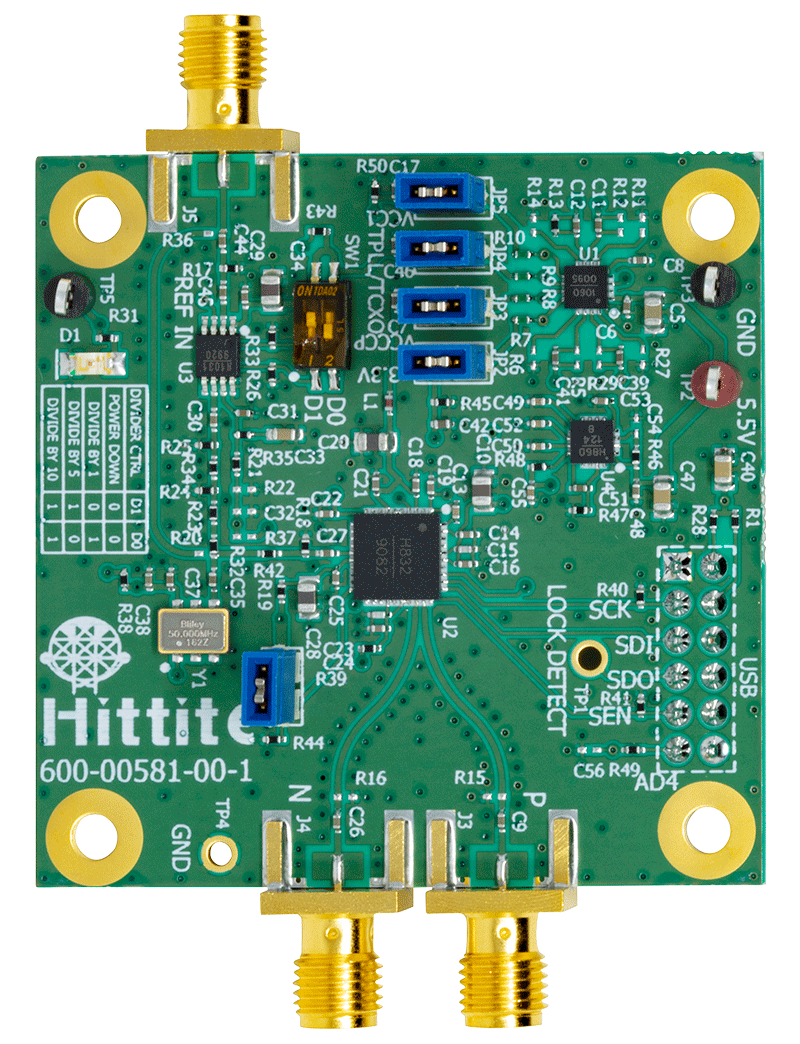

    Evaluation Boards
