ADXL367
Nanopower, 3-Axis, ±2 g/±4 g/±8 g Digital Output MEMS Accelerometer
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- Supply voltage range
- Single-cell battery operation: 1.1 V to 3.6 V
- Internal power supply regulation for high PSRR
- Ultralow power
- 0.89 μA at 100 Hz ODR, 2.0 V supply
- 180 nA motion activated wake-up mode
- 40 nA standby current
- High resolution: 0.25 mg/LSB
- Built-in features for system level power savings
- Single-tap and double-tap detection with only 35 nA of added current
- Adjustable threshold sleep and wake-up modes for motion activation
- Autonomous interrupt processing, without need for microcontroller intervention, to allow the rest of the system to be turned off completely
- Deep 512 sample embedded FIFO minimizes host processor load
- Awake state output enables implementation of motion activated switch
- Low noise to 170 μg/√Hz
- Acceleration sample synchronization via external trigger
- On-chip temperature sensor
- Internal two-pole antialias filter
- SPI (4-wire) and I2C digital interfaces
- Small and thin 2.2 mm × 2.3 mm × 0.87 mm package

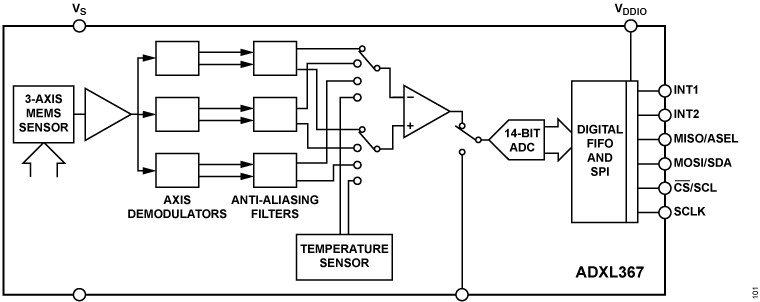

The ADXL367 is an ultralow power, 3-axis microelectromechanical systems (MEMS) accelerometer that consumes only 0.89 μA at a 100 Hz output data rate and 180 nA when in motion-triggered wake-up mode. Unlike accelerometers that use power duty cycling to achieve low power consumption, the ADXL367 does not alias input signals by undersampling, but samples the full bandwidth of the sensor at all data rates.
The ADXL367 always provides 14-bit output resolution. 8-bit formatted data is offered for more efficient single-byte transfers when a lower resolution is sufficient. 12-bit formatted data is also provided for ADXL362 design compatibility. Measurement ranges of ±2 g, ±4 g, and ±8 g are available, with a resolution of 0.25 mg/LSB on the ±2 g range.
In addition to its ultralow power consumption, the ADXL367 has many features to enable true system level power reduction. It includes a deep multimode output first in, first out (FIFO), a built-in micropower temperature sensor, an internal analog-to-digital converter (ADC) for synchronous conversion of an additional analog input with interrupt capability, single-tap and double-tap detection that can operate at any output data rate with only an added 35 nA of current, and a state machine to prevent a false triggering. In addition, the ADXL367 has provisions for external control of the sampling time and/or an external clock.
The ADXL367 operates on a wide 1.1 V to 3.6 V supply range, and can interface, if necessary, to a host operating on a separate supply voltage. The ADXL367 is available in a 2.2 mm × 2.3 mm × 0.87 mm package.
APPLICATIONS
- 24/7 sensing
- Hearing aids
- Vital signs monitoring devices
- Motion-enabled power save switches
- Motion-enabled metering devices
- Smart watch with single-cell operation
- Smart home
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADXL367
Documentation
Filters
1 Applied
Data Sheet
2
User Guide
4
WIKI
WIKI
WIKI
WIKI
Technical Articles
1
HTML
Application Note
2
HTML
HTML
Documentation
Data Sheet 1
User Guide 4
Application Note 1
Device Drivers 5
3rd Party Solutions 1
Webcast 2
Video
2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

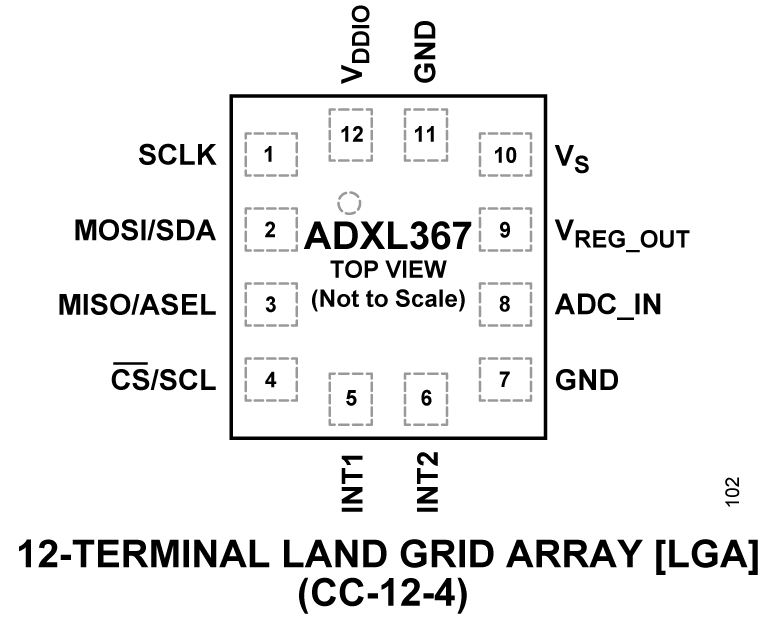

Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
ADXL367BCCZ | 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm) |
|
|
ADXL367BCCZ-RL | 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm) |
|
|
ADXL367BCCZ-RL7 | 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm) |
|
|
ADXL367U8-BCCZ | 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm) |
|
|
ADXL367U8-BCCZ-RL | 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm) |
|
|
ADXL367U8-BCCZ-RL7 | 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm) |
|
- ADXL367BCCZ
- Pin/Package Drawing
- 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADXL367BCCZ-RL
- Pin/Package Drawing
- 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADXL367BCCZ-RL7
- Pin/Package Drawing
- 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADXL367U8-BCCZ
- Pin/Package Drawing
- 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADXL367U8-BCCZ-RL
- Pin/Package Drawing
- 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- ADXL367U8-BCCZ-RL7
- Pin/Package Drawing
- 12-terminal LGA (2.2 mm x 2.3 mm x 0.87 mm)
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 20, 2023
- 23_0149
Qualification of Alternate Wafer Fab Site for MEMS Products ADXL362 and ADXL367
ADXL367BCCZ
ADXL367BCCZ-RL
ADXL367BCCZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 20, 2023
- 23_0149
Qualification of Alternate Wafer Fab Site for MEMS Products ADXL362 and ADXL367
ADXL367BCCZ
ADXL367BCCZ-RL
ADXL367BCCZ-RL7
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Parts | Product Life Cycle | Description |
---|---|---|
RECOMMENDED FOR NEW DESIGNS |
Micropower, 3-Axis, ±2 g/±4 g/±8 g Digital Output MEMS Accelerometer |
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 2
EVAL-ADXL367-SDP
ADXL367 Customer Evaluation System
Product Detail

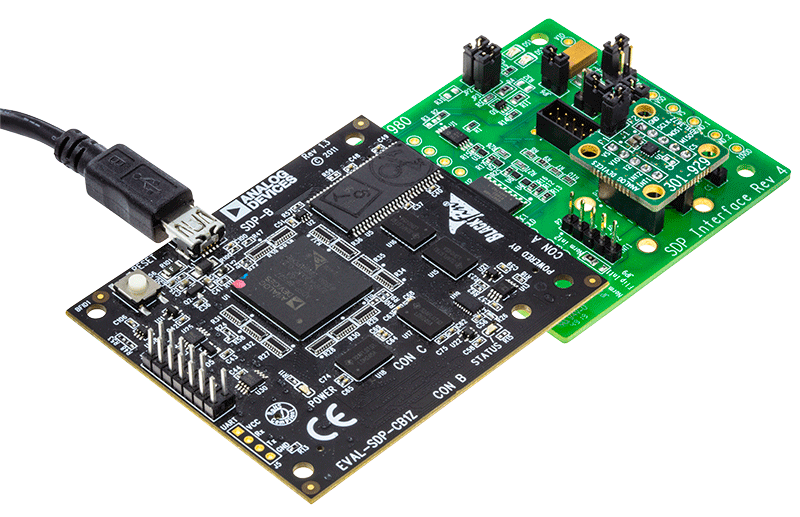

The EVAL-ADXL367-SDP is an easy-to-use Customer Evaluation System that allows the user a quick start on testing and evaluating the ADXL367 accelerometer. The system consists of a main board (EVAL-SDP-CB1Z evaluation platform), an interface board (EVAL-SDP-INTER4-Z), and a satellite board (EVAL-ADXL367Z breakout board).
The EVAL-SDP-CB1Z board, also called “SDP-B”, connects directly to a PC via an USB cable, with the USB connection providing both communications and power to the board. The SDP-B is connected to the interface board (EVAL-SDP-INTER4-Z), which provides the signal conditioning and electrical connections to communicate with the satellite board (EVAL-ADXL367Z) through a cable. This cable allows the satellite to be easily manipulated for testing or separately placed into an environmental chamber for temperature or humidity testing. Separating the boards mitigates corruption of data due to the temperature and humidity effects of other components.
The EVAL-ADXL367-SDP Customer Evaluation System comes with all the necessary cables and connectors. Each part of this kit can be purchased separately.
Resources
EVAL-ADXL367Z
ADXL367 Breakout Board
Product Detail

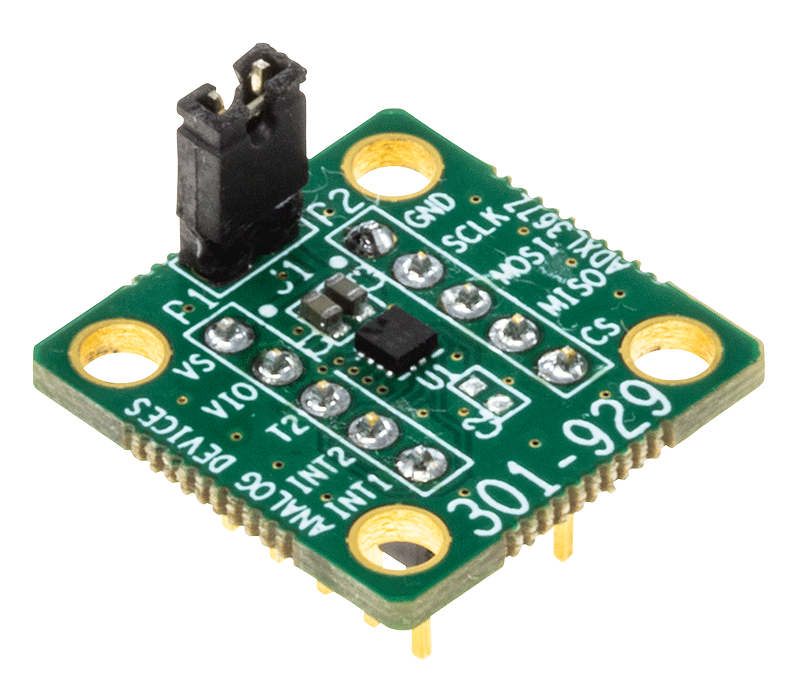

The EVAL-ADXL367Z is a simple breakout board that enables easy connection of an ADXL367 into an existing system. The ADXL367 is a nanowatt, 3-axis, digital-output accelerometer whose industry leading low power consumption and built-in features make it ideal for use in a wide variety of applications. Due to its small size, the EVAL-ADXL367Z has minimal effect on performance of the system and of the accelerometer, and thus it is ideal for evaluation of the ADXL367 in an existing system. Note that the ADXL367 must be communicated with digitally via SPI or I2C. No processor is included with the EVAL-ADXL367Z; firmware must be supplied externally by the user. For evaluation boards that include a processor, please see the EVAL-ADXL367-SDP.
