ADSP-21562

400MHz SHARC+ DSP with 640KB L1, 256KB Shared L2 SRAM, 120-lead LQFP_EP

Data Sheet

Rev. PrE

Pre-Release

Top

New Content (1)

Application Notes
EE-418: ADSP-2156x Board Design Guidelines for Dynamic Memory Controller

Overview

Features and Benefits
Product Details

Features and Benefits

SHARC+ Core infrastructure

400MHz (max) Core clock frequency
640KB on-chip Level 1 (L1) SRAM memory (with parity) increases low latency performance
32-bit, 40-bit & 64-bit floating point support
Byte, short-word, word, long-word addressed

Memory

256KB on-chip Level 2 (L2) SRAM with ECC protection - eliminates need for external memory in many use cases
One Level 3 (L3) interface optimized for low system power, providing 16-bit interface to DDR3 (supporting 1.35 V capable DDR3L devices) SDRAM devices

Advanced Hardware Accelerators

Enhanced FIR/IIR offload engines running at Core clock frequency for added processing power
Security Crypto Engines with OTP

Powerful DMA System

Innovative Digital Audio Interface (DAI) includes:

8x Full SPORT interfaces w/TDM & I2S modes
2x S/PDIF Rx/Tx, 8 ASRC pairs
4x Precision Clock Generators
24 Buffers

Other Peripheral Connectivity / Interfaces:

2x Quad SPI, 1x Octal SPI
MLB 3-pin
4x I2C, 2x UARTs
6x General Purpose Timer, 1x General Purpose Counter
2x Watchdog Timers
2-ch 12bit Housekeeping ADCs
22 GPIO pins, 24 DAI pins
Thermal Sensor

Package

14mm x 14mm 120-lead LQFP_EP

Additional Features

Security and Protection
- Crypto hardware accelerators
- Fast secure boot with IP protection

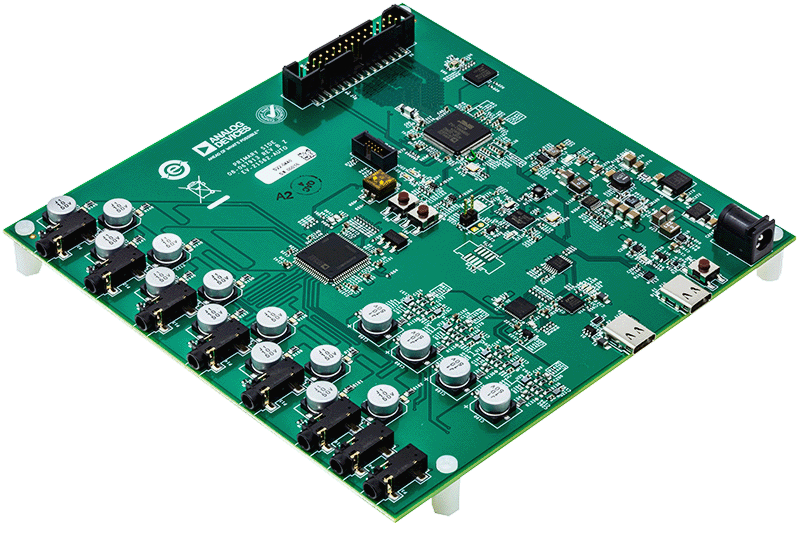

Product Details

Reaching speeds up to 1GHz, the ADSP-2156x processors are members of the SHARC^® family of products. The ADSP-2156x processor is based on the SHARC+^® single core. The ADSP-2156x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.

By integrating a rich set of industry-leading system peripherals and memory (see Table 1 on the datasheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to RISC (reduced instruction set computing), multimedia support, and leading-edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, pro audio, and industrial-based applications that require high floating-point performance.

Applications

Automotive:
- Audio Amplifier, Head Unit, Cockpit Domain Controller, Rear Seat Entertainment
Consumer & Professional Audio:
- 3D Soundbar, Home AVR, Mixing Console, Next-gen Conferencing System

Product Categories

Processors & DSP
- SHARC Processors

Markets & Technology

ADSP-2156x Family: Summary and Comparison

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Pre-Release

This product is new and engineering validation may still be underway. Quantities may be limited and design specifications may change while we ready the product for release to production.
