ADPL44002

Name: ADPL44002
Brand: Analog Devices
Price: 0.33 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

40V, 200mA, Low Noise, CMOS LDO Linear Regulator

Data Sheet (Rev. 0) Product Selection Table

Part Models: 9
1ku List Price: Starting From $0.30

Viewing:

Overview

Low Noise: 20μV_RMS Independent of Fixed Output Voltage
PSRR of 78dB at 10 kHz, V_OUT ≤ 5V, V_IN = 7V
Input Voltage Range: 2.7V to 40V
Maximum Output Current: 200mA
Initial Accuracy: ±1%
Accuracy Over Line, Load, and Temperature
- ±1.8%, T_J = −40°C to +125°C
Low Dropout Voltage: 220mV (typical) at a 200mA Load, V_OUT = 5V
User Programmable Soft Start (LFCSP only)
Low Quiescent Current, I_GND = 80μA (typical) with no Load

Low Shutdown Current: 1.8μA at V_IN = 6V, 3.0μA at V_IN = 40V
Stable with a Small 2.2 μF Ceramic Output Capacitor

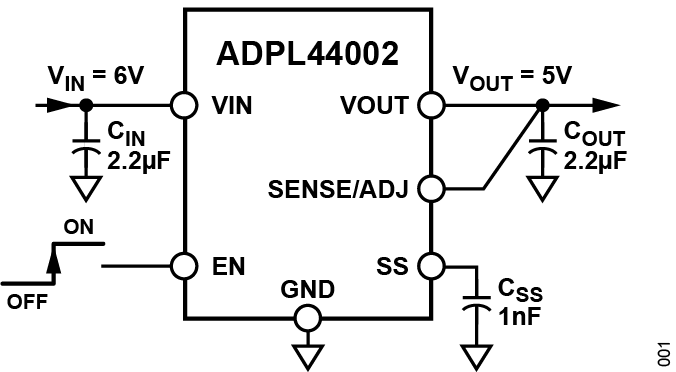

Fixed Output Voltage Options: 1.8V, 2.5V, 3.3V, and 5.0V

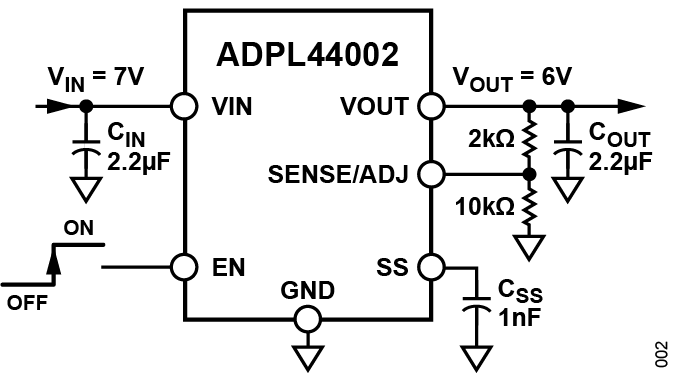

Adjustable Output from 1.2V to V_IN – V_DO, Output can be Adjusted Above Initial Set Point
Precision Enable

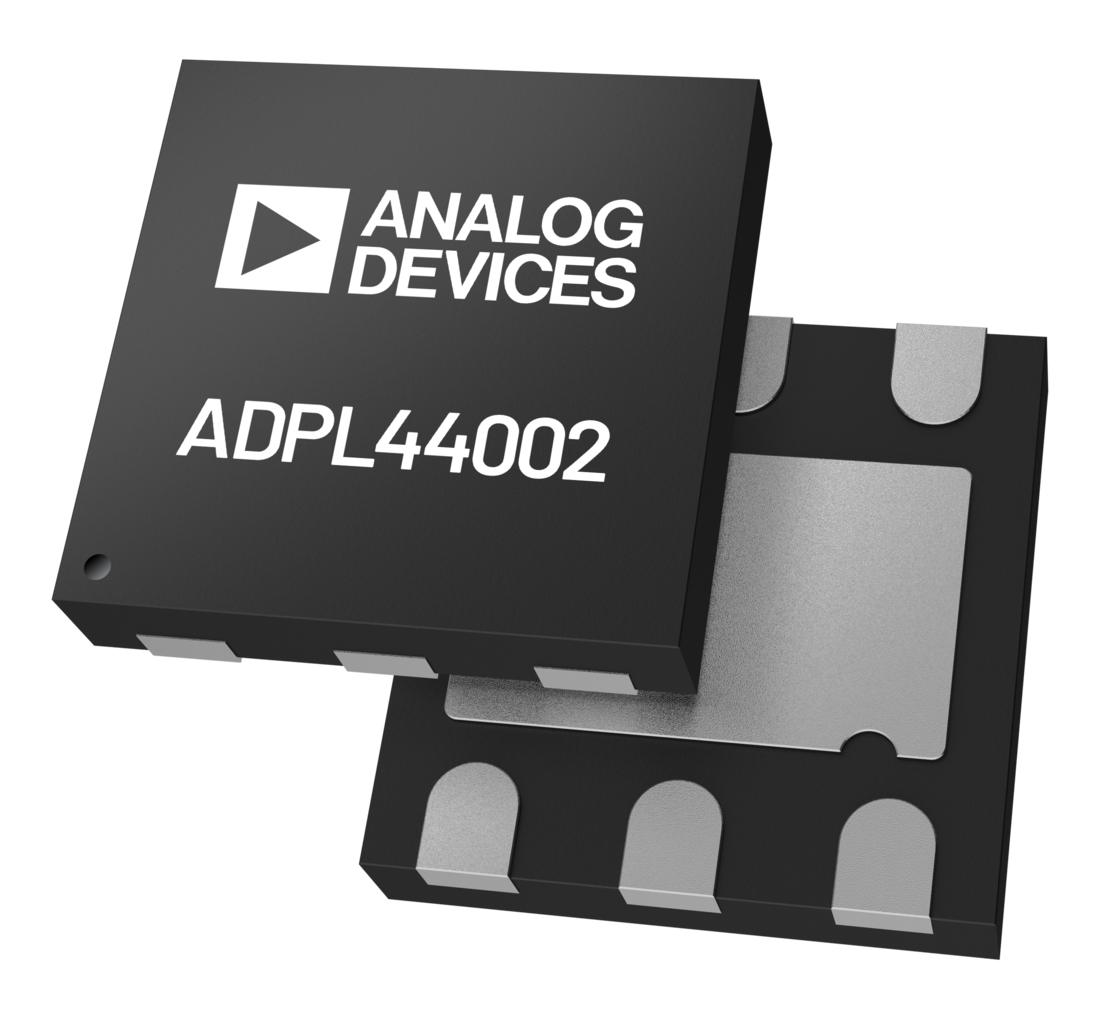

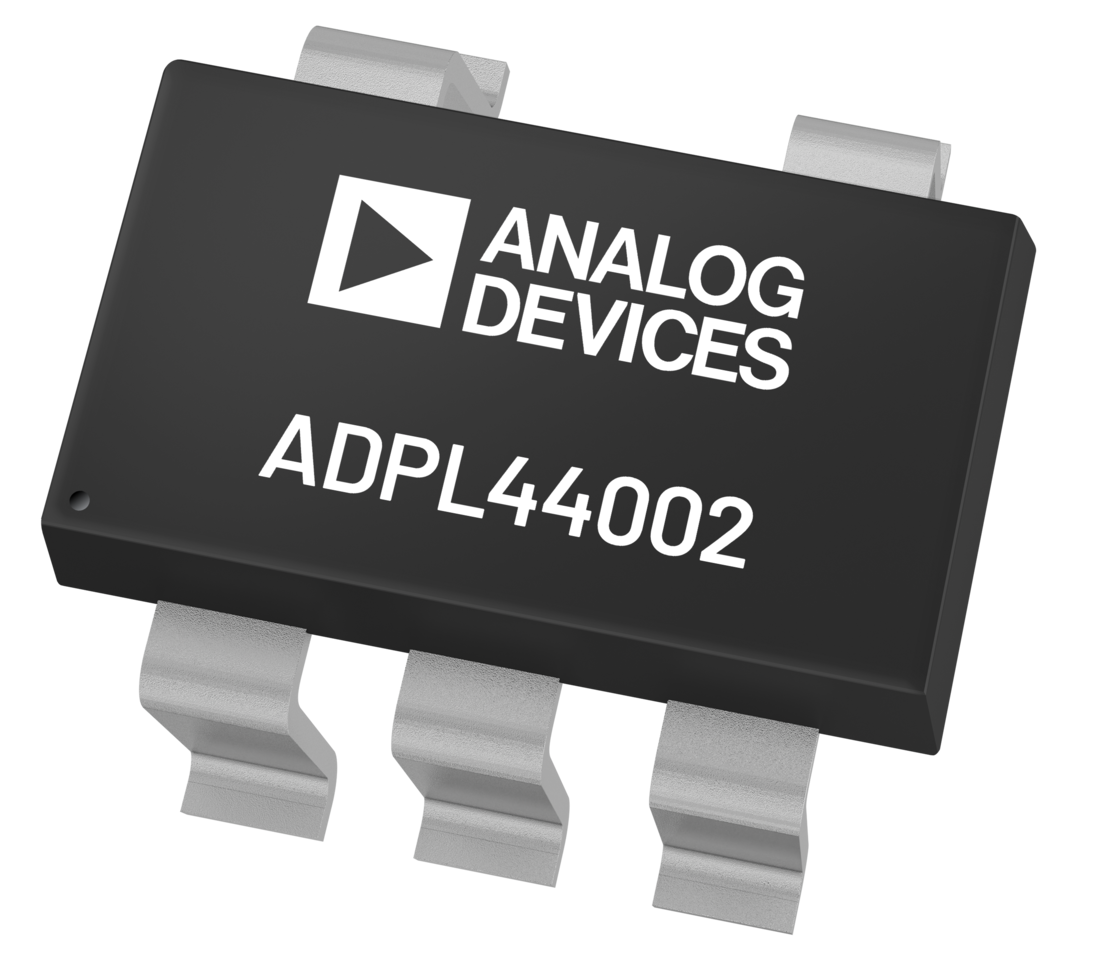

2mm × 2mm, 6-Lead LFCSP, 5-Lead TSOT

Part Models: 9
1ku List Price: Starting From $0.30

Documentation

Data Sheet 1

ADPL44002: 40V, 200mA, Low Noise, CMOS LDO Linear Regulator Data Sheet (Rev.0) 11/07/2024

User Guide 1

EVAL-ADPL44002 User Guide: Evaluation Kit for ADPL44002 (Rev.0) 11/07/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADPL44002ACPZN-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002ACPZN2.5-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002ACPZN3.3-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002ACPZN5.0-R7	6-Lead LFCSP (2mm x 2mm w/ EP)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002AUJZ-1.8-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002AUJZ-2.5-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002AUJZ-3.3-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002AUJZ-5.0-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
ADPL44002AUJZ-R7	5-Lead TSOT	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 20, 2026 - 24_0206 Qualification of Alternate Wafer Fab for TSMC 0.18um 40V BCDMOS Process
		PCN24_0206_Form Material_Report
ADPL44002ACPZN-R7	PRODUCTION
ADPL44002ACPZN2.5-R7	PRODUCTION
ADPL44002ACPZN3.3-R7	PRODUCTION
ADPL44002ACPZN5.0-R7	PRODUCTION
ADPL44002AUJZ-1.8-R7	PRODUCTION
ADPL44002AUJZ-2.5-R7	PRODUCTION
ADPL44002AUJZ-3.3-R7	PRODUCTION
ADPL44002AUJZ-5.0-R7	PRODUCTION
ADPL44002AUJZ-R7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice 1

ADPL44002 LTSpice

Models for the following parts are available in LTspice:

ADPL44002

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluates the ADPL44002

Buy Now View Details

Features and Benefits

Input Voltage Range: 3.8V to 40V
Resistor Programmed 3.3V Output Voltage
Maximum Output Current: 200mA
Jumper Turns Regulator On or Connects the EN Pin to a Connector to Turn the Regulator On or Off Externally
Jumper Connects the SENSE/ADJ Pin to the Output Through a Resistor Divider or Directly
V_IN, V_OUT, and GND Test Points for Regulation and Dropout Voltage Monitoring

Component Placeholders for an RC Network that can Reduce Noise when the SENSE/ADJ Pin Connects to the Output Through a Resistor Divider
Component Placeholder for a Soft-Start Capacitor and SS Test Point for Soft-Start Voltage Monitoring - LFCSP Package Evaluation Board Only
6-Lead 2mm x 2mm LFCSP Package or a 5-Lead TSOT Package

Product Details

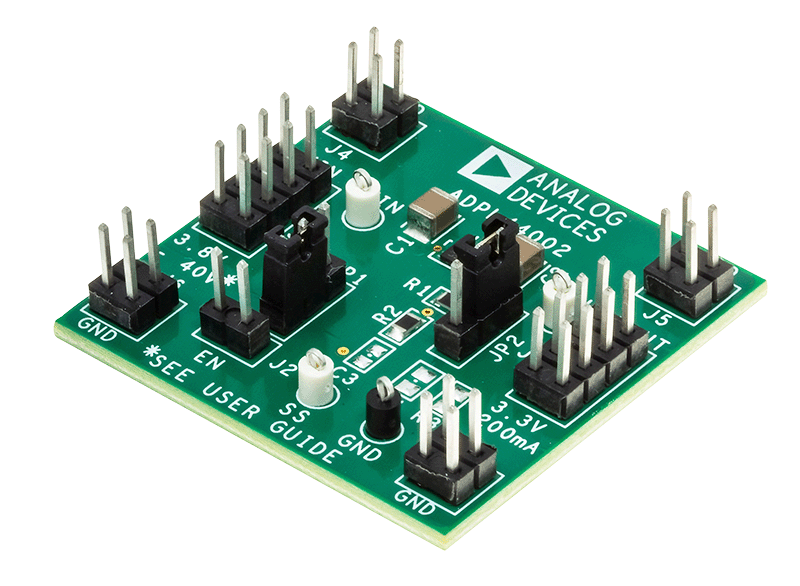

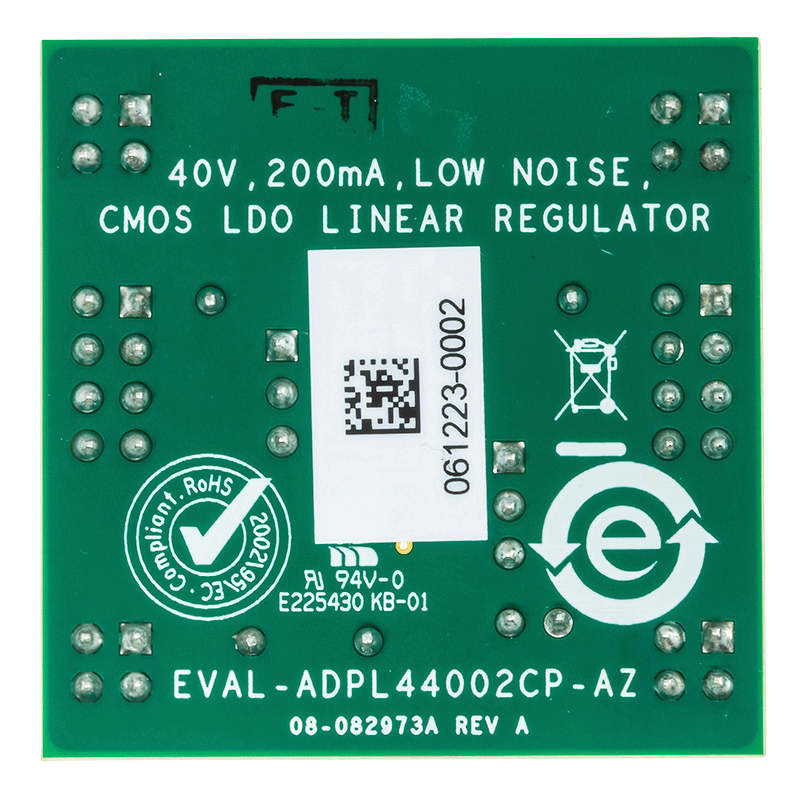

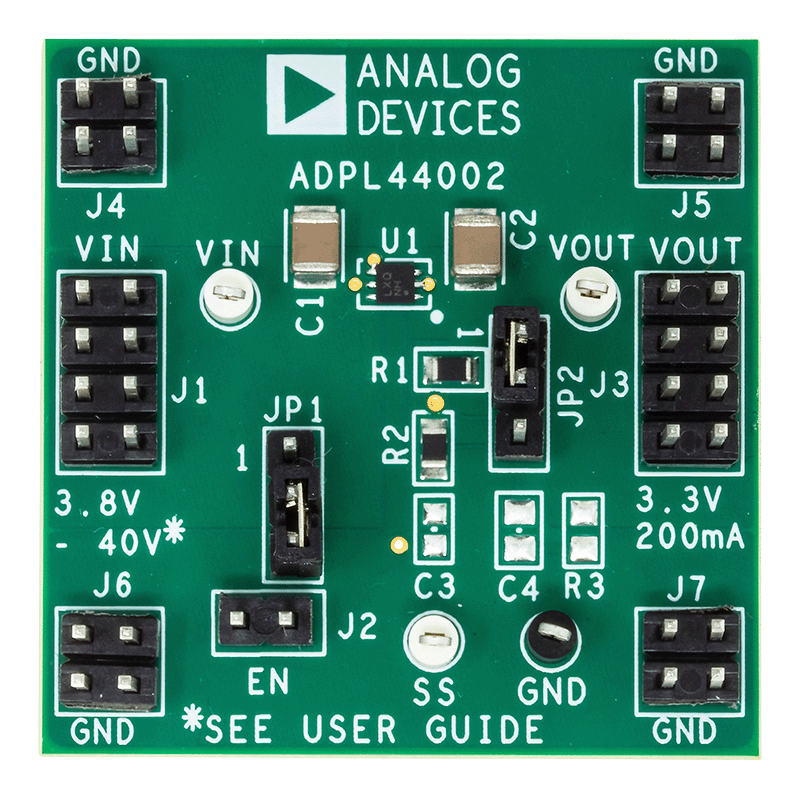

The ADPL44002 evaluation boards evaluate the ADPL44002, a 40V, 200mA, low noise, CMOS, low dropout (LDO) linear regulator.

See the Ordering Information section for the two types of evaluation boards available to evaluate the ADPL44002. There is an evaluation board that features a 6-lead, 2mm x 2mm LFCSP package, and there is also an evaluation board that features a 5-lead TSOT package.

The evaluation boards provide a 3.3V output over an input range of 3.8V to 40V. The maximum output current is 200mA, but output current is also limited by the thermal dissipation of the ADPL44002. The evaluation boards use the adjustable version of ADPL44002. A resistor divider programs the output of the adjustable ADPL44002 to 3.3V. Noise performance for the adjustable ADPL44002 can be made comparable to a fixed output ADPL44002 by installing optional RC network components into placeholders that the evaluation board printed circuit board (PCB) designs provide. The evaluation boards can easily be configured with a jumper for fixed output versions of the ADPL44002 that normally have their SENSE/ADJ pin connected directly to the output.

In addition to connectors for the input voltage, output voltage, EN control signal and ground, the evaluation boards provide test points for the input, output, and SS pin voltages. A jumper normally connects the EN pin to the VIN input, but the jumper can be repositioned so EN can be driven externally at its connector instead.

For more details, refer to the ADPL44002 data sheet, which must be consulted in addition to this user guide when using the ADPL44002 evaluation boards.
